ZRE210R-DEXDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

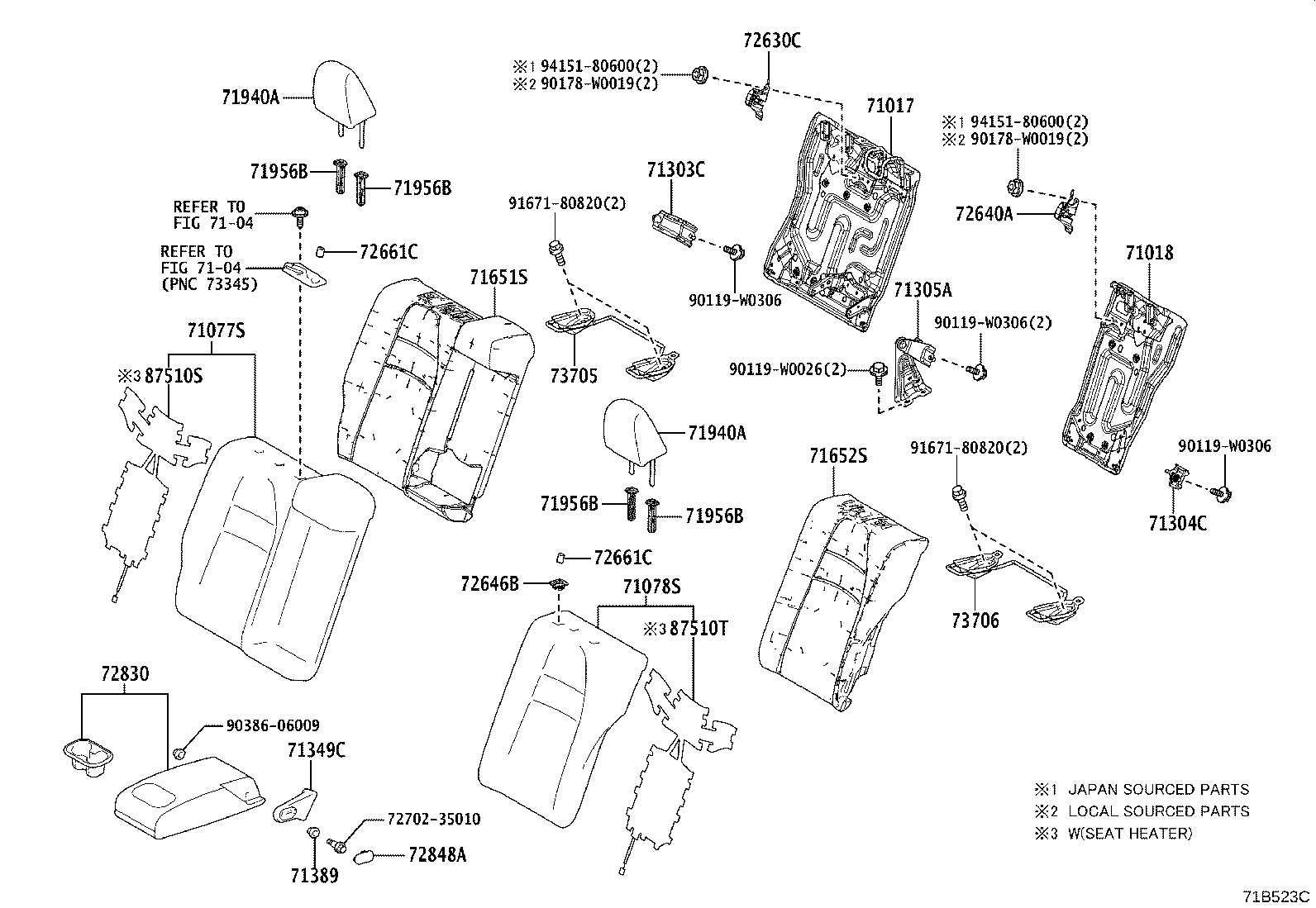

ILLUST NO. 1 OF 2(1901- )

Click highlighted areas on diagram

SEAT BACK

diagram 71017 71018 7104 7104 71077S 71078S 71303C 71304C 71305A 71349C 71389 71651S 71652S 71940A 71940A 71956B 71956B 71956B 71956B 72630C 72640A 72646B 72661C 72661C 7270235010 72830 72848A 73705 73706 87510S 87510T 90119W0026 90119W0306 90119W0306 90119W0306 90178W0019 90178W0019 9038606009 9167180820 9167180820 9415180600 9415180600
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-02B80

ZRE210..RHD..EUR

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-02610

ZRE210..RHD..EUR

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0ZD70A0

ZRE210..RHD..EUR

FROMAGE,TRIM0#

 1
71077-0ZD70C0

ZRE210..RHD..EUR

BLACK,TRIM2#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-0Z180A0

ZRE210..RHD..EUR

FROMAGE,TRIM0#

 1
71078-0Z180C0

ZRE210..RHD..EUR

BLACK,TRIM2#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-02340

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-02080

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-02340

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-02A70

ZRE210..RHD..EUR

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-02830

ZRE210..RHD..EUR

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-12380

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-12350

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
72646B - GROMMET, REAR SEAT BACK STOP BUTTON
72646-02140C0

ZRE210..G..EUR;ZRE210..RHD..EUR

BLACK,TRIM0#,2#

 1
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-02150C0

ZRE210..G..EUR;ZRE210..RHD..EUR

BLACK,TRIM0#,2#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-02150C0

ZRE210..G..EUR;ZRE210..RHD..EUR

BLACK,TRIM0#,2#

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-02281

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-02121

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
Common parts
72702-35010
90119-W0026
90119-W0306
90178-W0019
90386-06009
91671-80820
94151-80600
Linked diagrams
7104

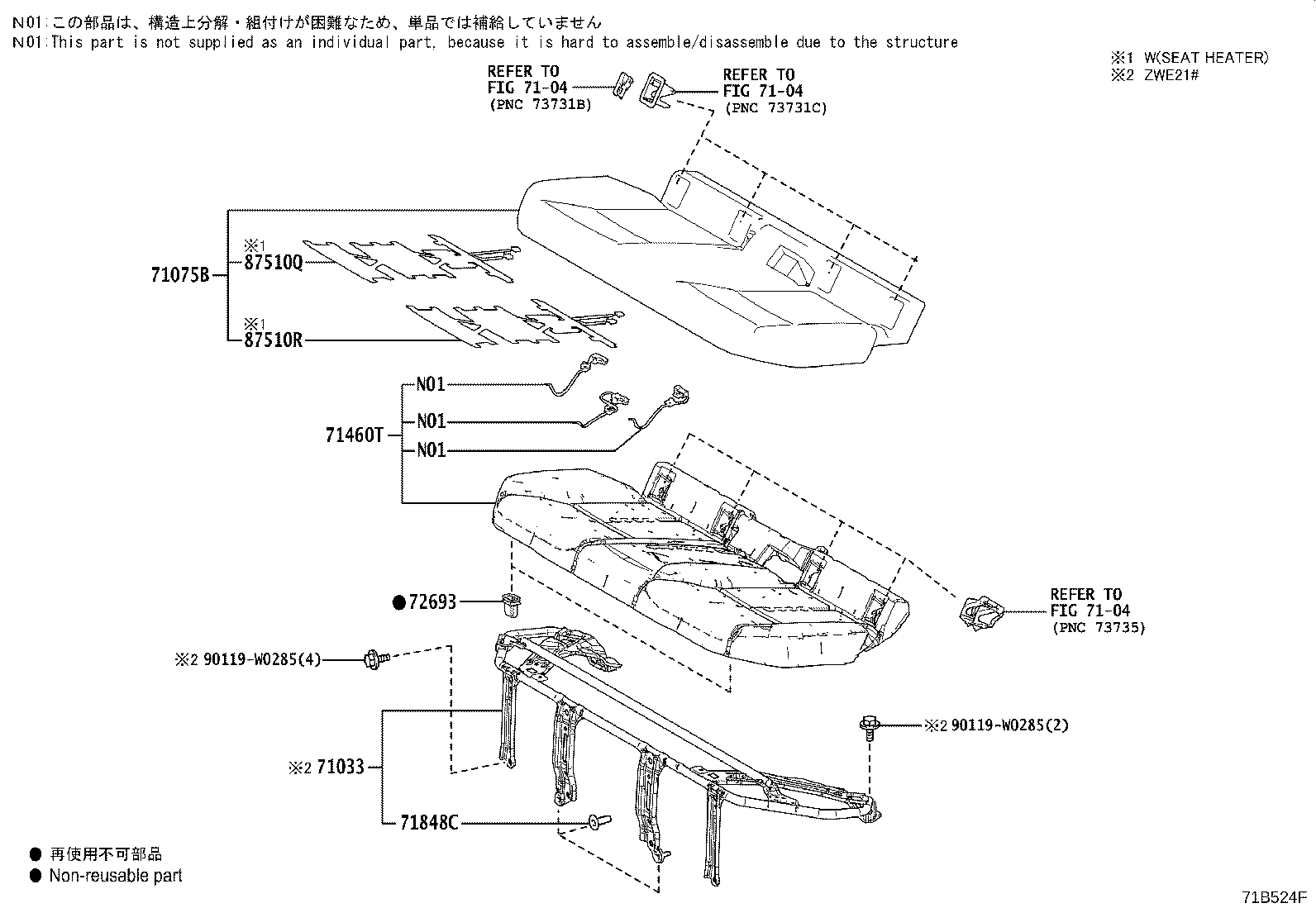

ILLUST NO. 2 OF 2(1901- )

Click highlighted areas on diagram

SEAT CUSHION

diagram 71033 7104 7104 7104 71075B 71460T 71848C 72693 87510Q 87510R 90119W0285 90119W0285
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0ZB60E0

ZRE210..RHD..EUR

ORCHID BROWN,TRIM0#

 1
71075-0ZB60B0

ZRE210..RHD..EUR

GRAY,TRIM2#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71503-02670

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

ZRE210..G..EUR;ZRE210..RHD..EUR

 2
Common parts
90119-W0285
Linked diagrams
7104
