ZRE210R-DEXDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

Click highlighted areas on diagram

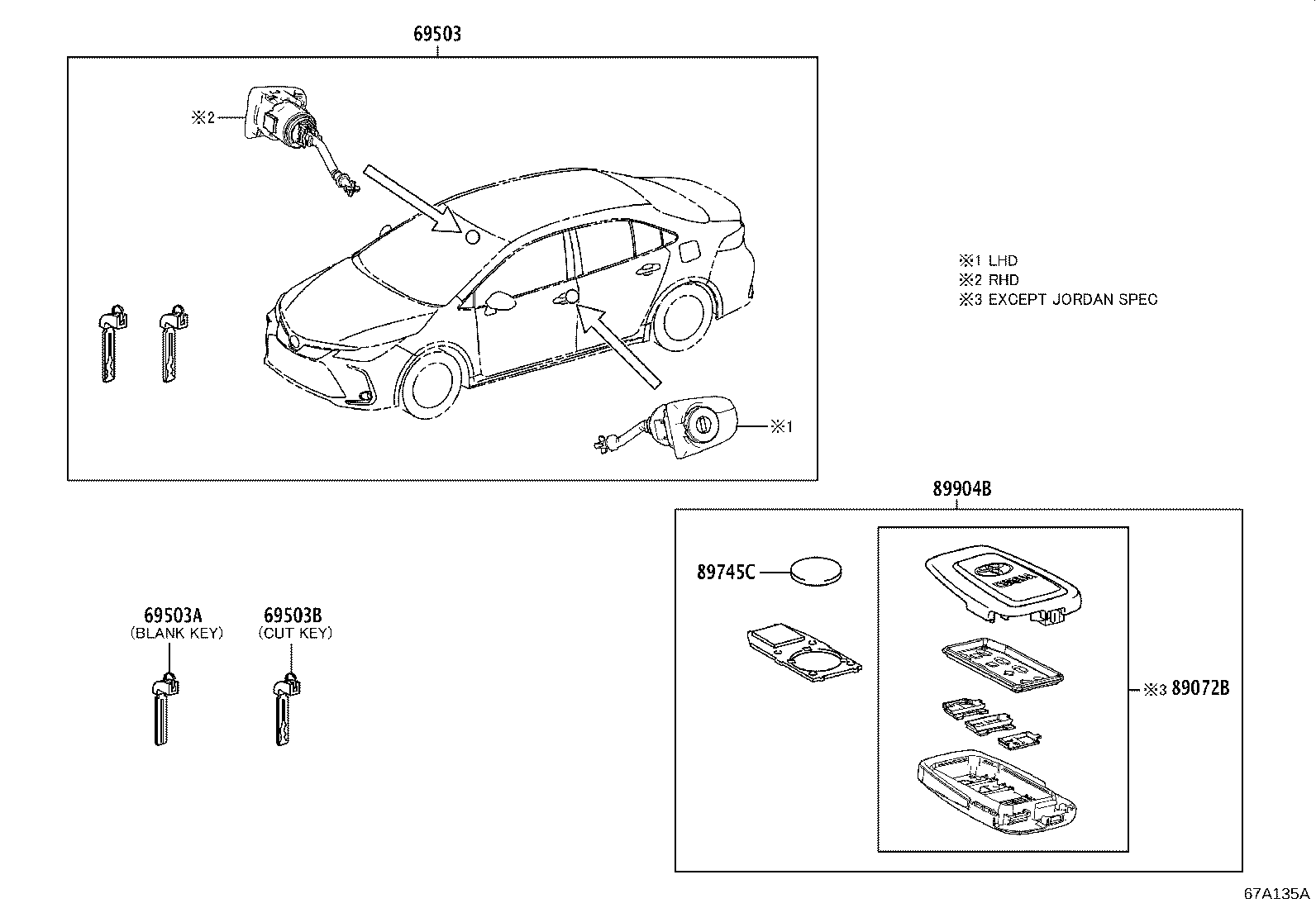

SMART KEY

diagram 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-02F50

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89704-02D90

ZRE210..RHD..EUR

 1
89704-02D90

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89704-02D80

ZRE210..RHD..EUR

KEY PLATE-WIRELESS KEY(2)

 1
89704-02D90

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89704-02D90

ZRE210..RHD..EUR

SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89704-02D90

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
69503A - KEY, BLANK
69515-47030

ZRE210..RHD..EUR

MASTER KEY,W(*68),KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
69515-16110

ZRE210..RHD..EUR

MASTER KEY,W(*68),KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
69503B - KEY, CUT
69515-16100

ZRE210..RHD..EUR

MASTER KEY,W(*68),KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
69515-47020

ZRE210..RHD..EUR

MASTER KEY,W(*68),KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-02790

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 2
89745C - BATTERY, TRANSMITTER
89745-02080

ZRE210..RHD..EUR

CR2032,KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-02040

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1

(1901- )

Click highlighted areas on diagram

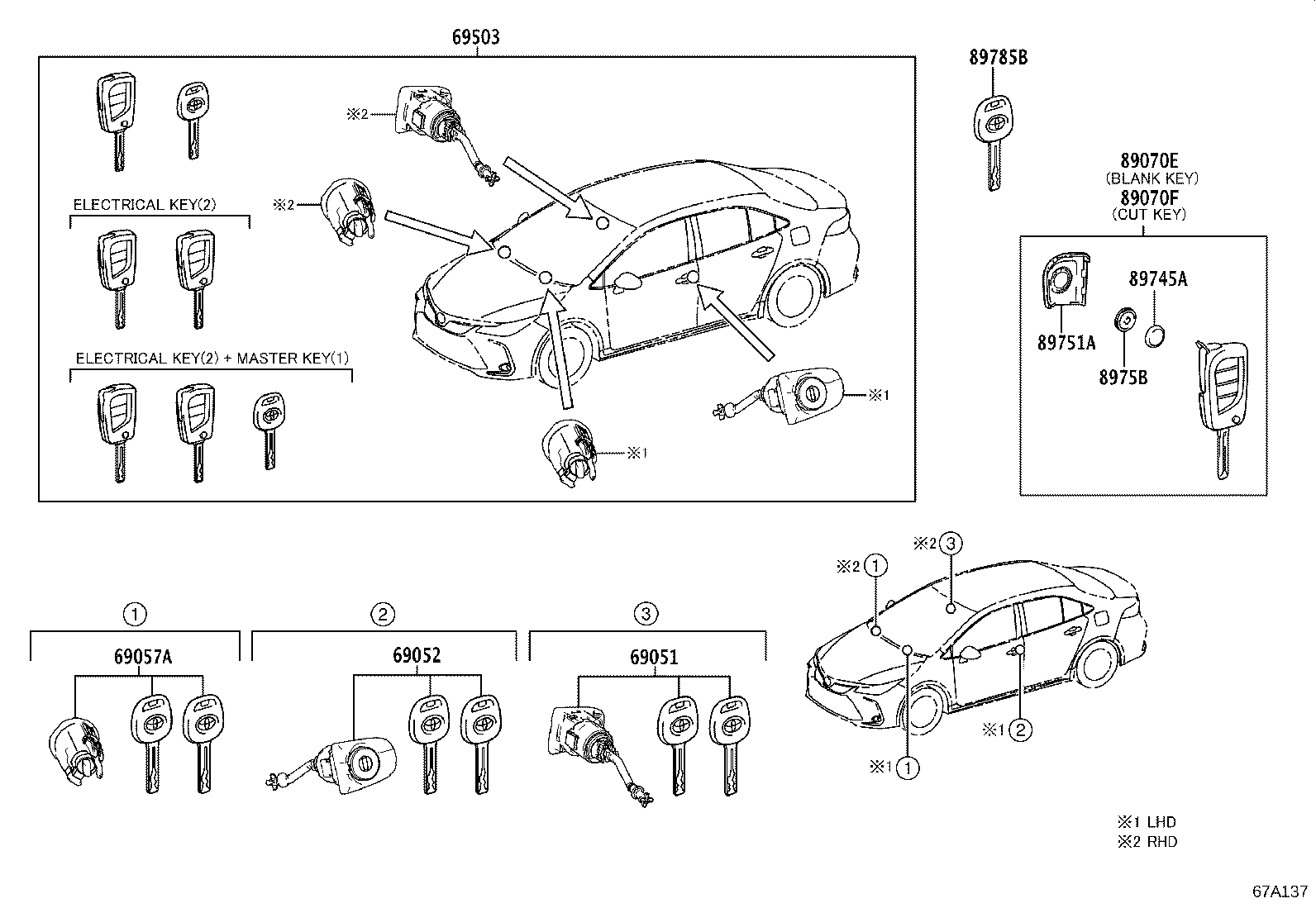

WIRELESS KEY

diagram 69051 69052 69057A 69503 89070E 89070F 89745A 89751A 8975B 89785B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02400

ZRE210..RHD..EUR

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02C20

ZRE210..RHD..EUR

 1
69503 - CYLINDER SET, LOCK
69005-02F50

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89704-02D90

ZRE210..RHD..EUR

 1
89704-02D90

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89704-02D80

ZRE210..RHD..EUR

KEY PLATE-WIRELESS KEY(2)

 1
89704-02D90

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89704-02D90

ZRE210..RHD..EUR

SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89704-02D90

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-02F10

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89070-02F10

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89070-02F10

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89070-02F10

ZRE210..RHD..EUR

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-02F30

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89070-02F30

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89070-02F30

ZRE210..RHD..EUR

 1
89070-02F30

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89745A - BATTERY, TRANSMITTER
89745-02080

ZRE210..RHD..EUR

CR2032,KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89745-02080

ZRE210..RHD..EUR

CR2032

 1
89745-02080

ZRE210..RHD..EUR

CR2032,WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89745-02080

ZRE210..RHD..EUR

CR2032,WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89745-02080

ZRE210..RHD..EUR

CR2032,SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89751A - COVER, TRANSMITTER HOUSING
89751-02250

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89751-02250

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89751-02250

ZRE210..RHD..EUR

SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89751-02250

ZRE210..RHD..EUR

KEY PLATE-WIRELESS KEY(2)

 2
89751-02250

ZRE210..RHD..EUR

 1
89751-02250

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-02040

ZRE210..RHD..EUR

 1
8975B-02040

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
8975B-02040

ZRE210..RHD..EUR

KEY PLATE-WIRELESS KEY(2)

 2
8975B-02040

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
8975B-02040

ZRE210..RHD..EUR

SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
8975B-02040

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-K0050

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
89785-K0050

ZRE210..RHD..EUR

 1
89785-K0050

ZRE210..RHD..EUR

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89785-K0050

ZRE210..RHD..EUR

WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)

 1
