ZRE210R-DEXDPW (2019)
Toyota Corolla (Tup)
(1901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-02290C0 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 55626A - RETAINER, INSTRUMENT PANEL UNDER TRAY WALL | ||||
| 55626-02200 |
ZRE210..RHD..EUR ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR) |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-02210 |
ZRE210..RHD LIGHT GRADE |
1 | ||
| 58803-02110 |
ZRE210..RHD..EUR ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR) |
1 | ||
| 58803-02570 |
ZRE210..RHD..EUR |
1 | ||
| 58803-02210C1 |
ZRE210..RHD..EUR LIGHT GRADE,BLACK,TRIM0#,2# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-02210 |
ZRE210..RHD LIGHT GRADE |
1 | ||
| 58803-02110 |
ZRE210..RHD..EUR ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR) |
1 | ||
| 58803-02570 |
ZRE210..RHD..EUR |
1 | ||
| 58803-02210C1 |
ZRE210..RHD..EUR LIGHT GRADE,BLACK,TRIM0#,2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-02080C0 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
10 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02410 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02390C0 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02400C0 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-12020 |
ZRE210..RHD..EUR ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR) |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-02260C0 |
ZRE210..RHD..EUR BLACK,TRIM0# |
1 | ||
| 58831-02260C1 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-02080 |
ZRE210..RHD..EUR COOLER REAR DUCT-WITH |
1 | ||
| 58863C - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-02030 |
ZRE210..RHD..EUR COOLER REAR DUCT-WITH |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02130C0 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 58903-02120C0 |
ZRE210..RHD..EUR COOLER REAR DUCT-WITH,BLACK,TRIM0#,2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02130C0 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 58903-02120C0 |
ZRE210..RHD..EUR COOLER REAR DUCT-WITH,BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02F60E0 |
ZRE210..RHD..EUR ORCHID BROWN,TRIM0# |
1 | ||
| 58905-02F60C0 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 58911G - PANEL, BOX, NO.1 | ||||
| 58911-02640C0 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02D50C0 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 58951-02D50E0 |
ZRE210..RHD..EUR ORCHID BROWN,TRIM0# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02180 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0310 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 93560-54012 | ||||

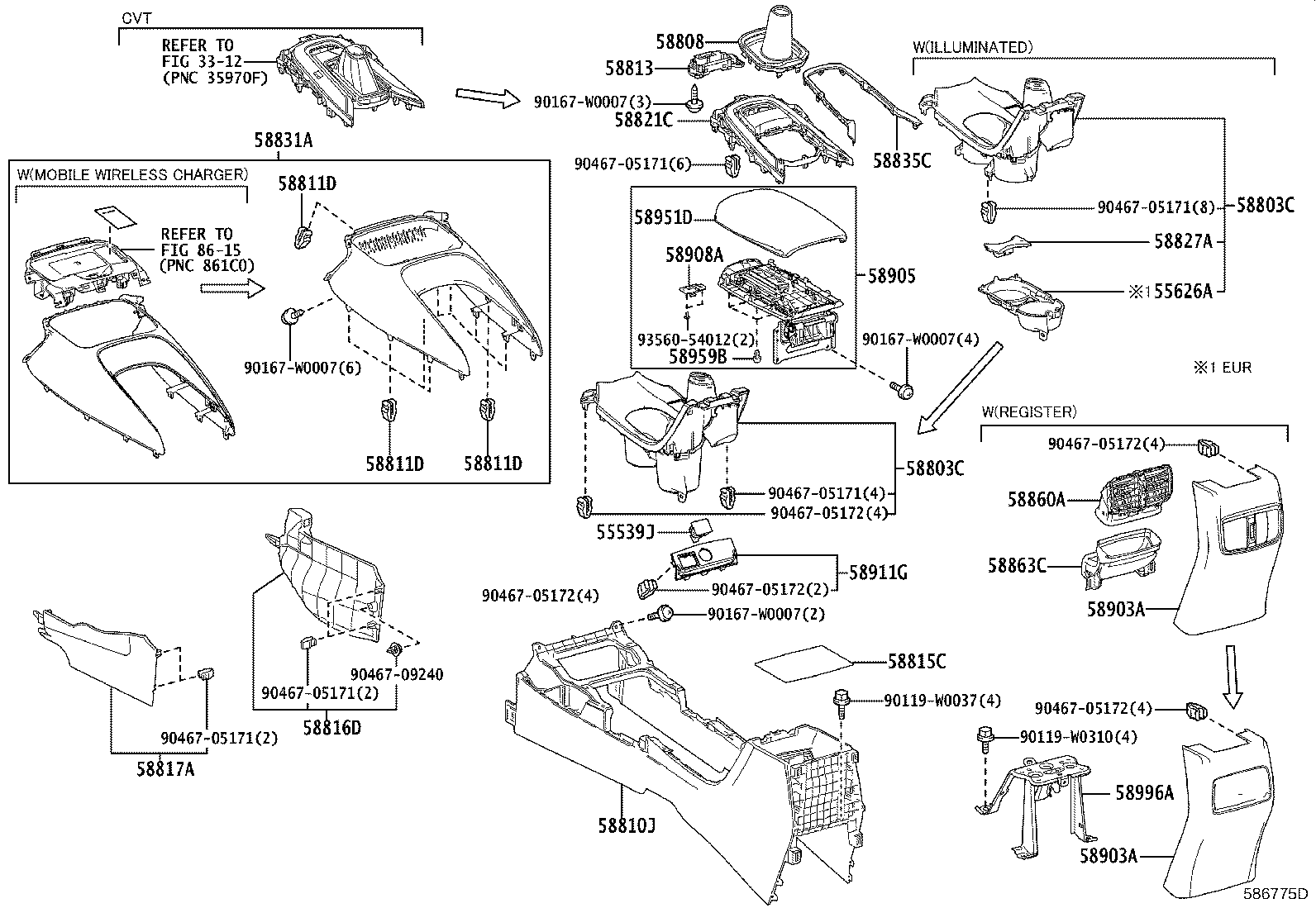

| Linked diagrams | ||||
| 3312 | ||||
| 8615 | ||||
