ZRE210R-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE21#..RHD

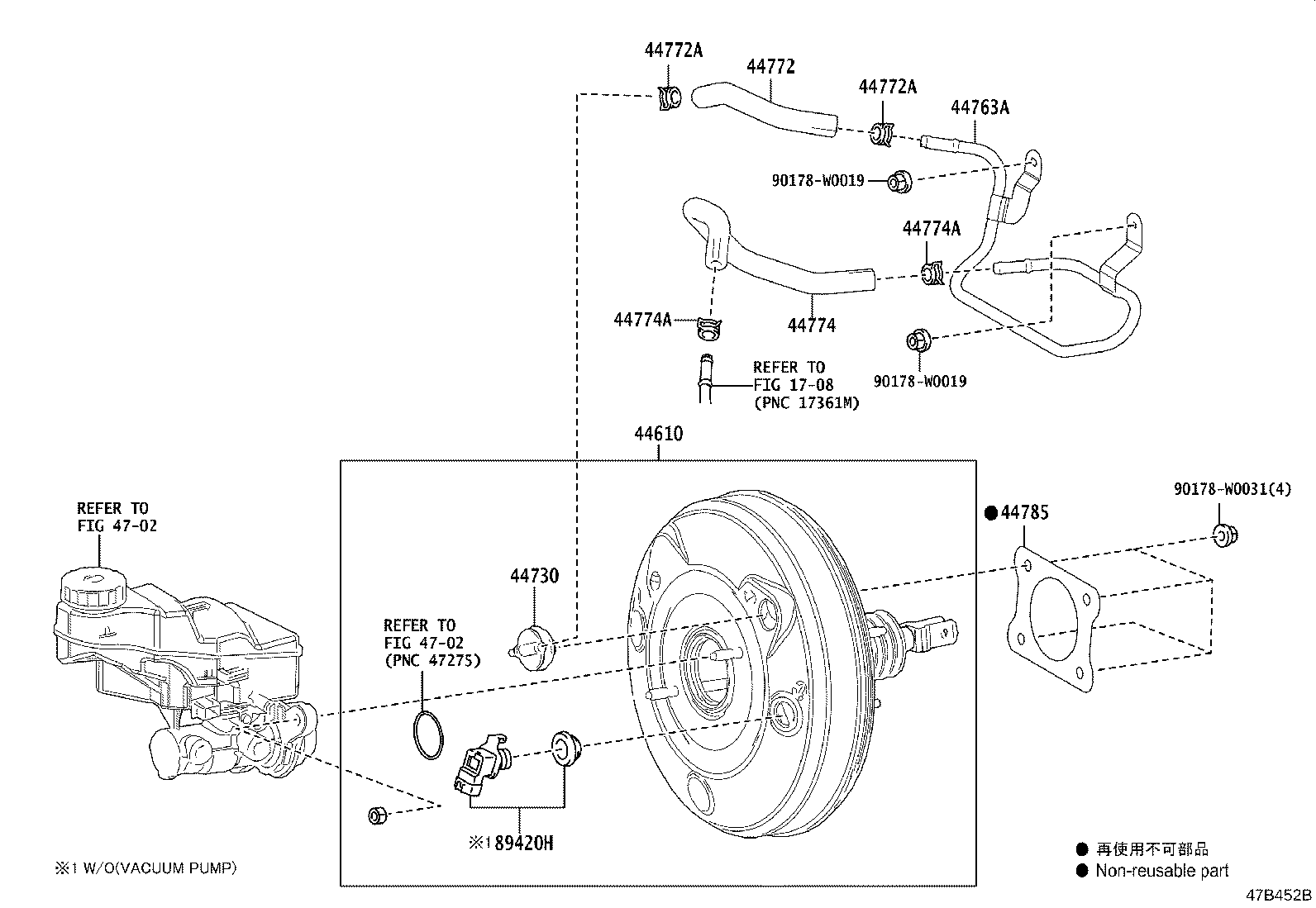

Click highlighted areas on diagram

BOSCH

diagram 1708 44610 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 4702 89420H 90178W0019 90178W0019 90178W0031
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09G20

ZRE210..RHD..EUR

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-F9010

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12610

ZRE210..RHD..EUR

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12870

ZRE210..RHD..EUR

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE210..G..EUR;ZRE210..RHD..EUR

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE210..G..EUR;ZRE210..RHD..EUR

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12A40

ZRE210..RHD..EUR

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE210..G..EUR;ZRE210..RHD..EUR

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE210..G..EUR;ZRE210..RHD..EUR

 2
44785 - GASKET, BRAKE BOOSTER
44785-05020

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
Common parts
90178-W0019
90178-W0031
Linked diagrams
1708
4702
