ZRE210L-DEXNKX (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1901- )

Click highlighted areas on diagram

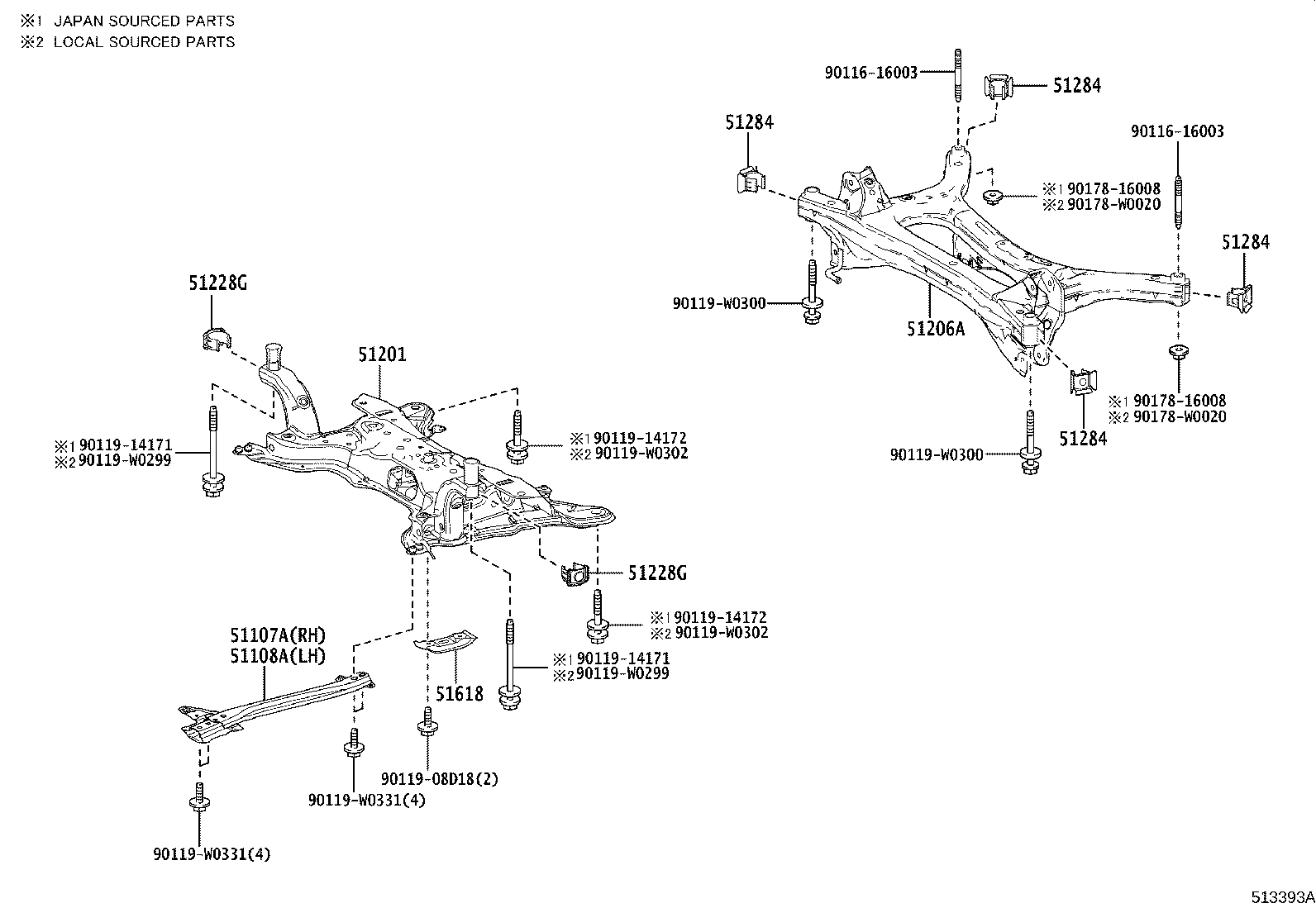

SUSPENSION MEMBER

diagram 51107A 51108A 51201 51206A 51228G 51228G 51284 51284 51284 51284 51618 9011616003 9011616003 9011908D18 9011914171 9011914171 9011914172 9011914172 90119W0299 90119W0299 90119W0300 90119W0300 90119W0302 90119W0302 90119W0331 90119W0331 9017816008 9017816008 90178W0020 90178W0020
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-02200

ZRE210..RUS

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-02200

ZRE210..RUS

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02301

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
51201-02300

ZRE21#,ZWE211

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-02100

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 4
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-47010

ZRE210..RUS

 1
Common parts
90116-16003
90119-08D18
90119-14171
90119-14172
90119-W0299
90119-W0300
90119-W0302
90119-W0331
90178-16008
90178-W0020

ILLUST NO. 2 OF 2(1901- )

Click highlighted areas on diagram

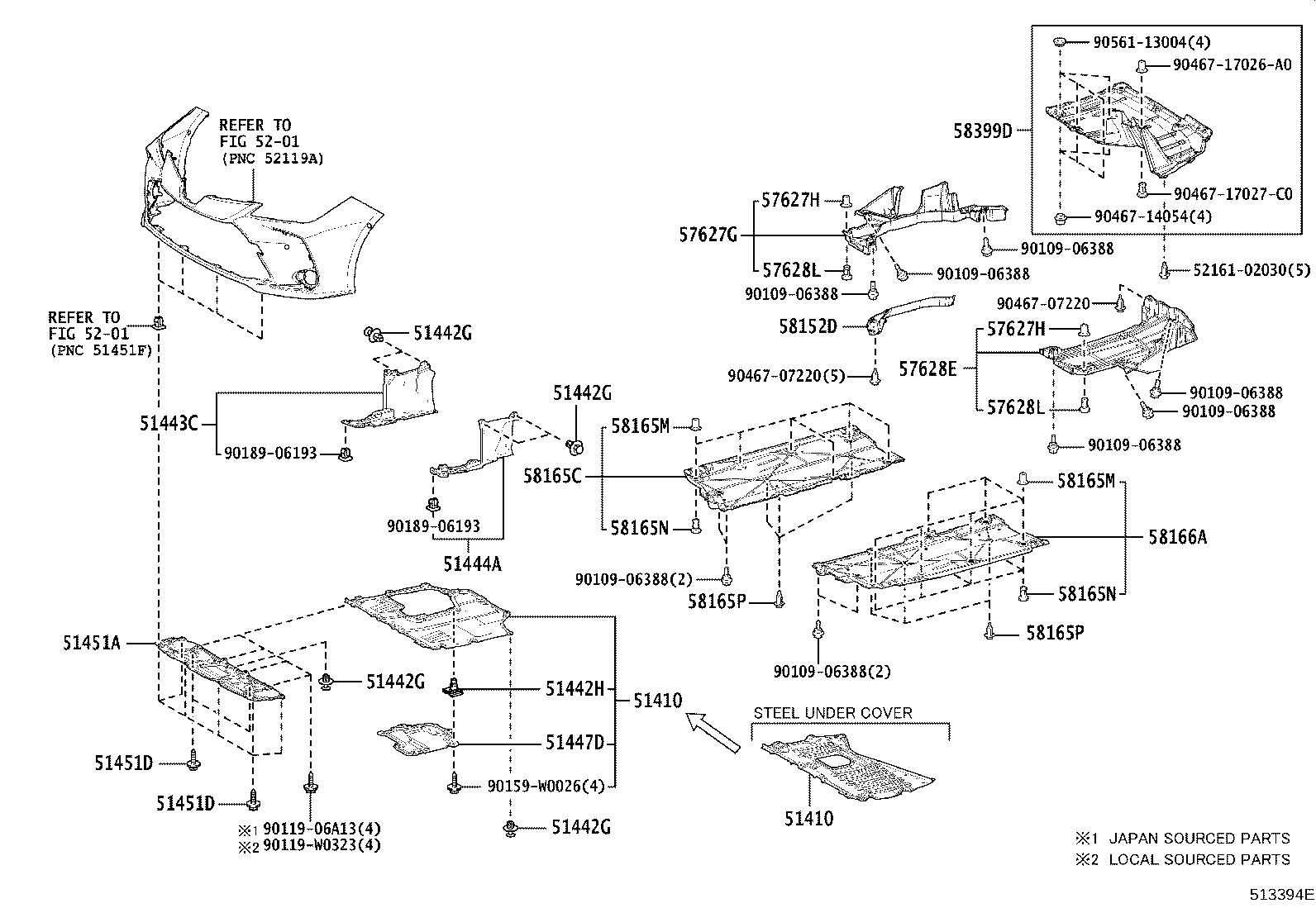

UNDER COVER

diagram 51410 51410 51442G 51442G 51442G 51442G 51442H 51443C 51444A 51447D 51451A 51451D 51451D 5201 5201 5216102030 57627G 57627H 57627H 57628E 57628L 57628L 58152D 58165C 58165M 58165M 58165N 58165N 58165P 58165P 58166A 58399D 9010906388 9010906388 9010906388 9010906388 9010906388 9010906388 9010906388 9010906388 9011906A13 90119W0323 90159W0026 9018906193 9018906193 9046707220 9046707220 9046714054 9046717026A0 9046717027C0 9056113004
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-02320

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N

 1
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-02320

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 15
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 15
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 15
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 15
51442H - CLIP, ENGINE UNDER COVER, NO.2
90179-06104

ZRE21#,ZWE211

 4
90467-05176

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 4
51443C - COVER, ENGINE UNDER, REAR RH
51443-02160

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02200

ZRE210..G..RUS;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N);MZEA11,ZRE211,ZWE21#..CVT

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-02100

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-02180

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
51451D - SCREW, NO.1
90159-W0026

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

(L)

 8
90159-60477

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

(J)

 8
51451D - SCREW, NO.1
90159-W0026

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

(L)

 8
90159-60477

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

(J)

 8
57627G - COVER, REAR FLOOR SIDE MEMBER, RH
57627-02160

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

SUPER WHITE 2

 2
57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

SUPER WHITE 2

 2
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-02170

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17027C0

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

BLACK

 2
57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17027C0

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

BLACK

 2
58152D - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-02030

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
58399D - COVER, FLOOR UNDER, NO.2
58399-02190

ZRE211;ZWE21#..N;MZEA11..6F;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);ZRE210,ZWE211..G..(GCC,GEN,RUS)

 1
Common parts
52161-02030
90109-06388
90119-06A13
90119-W0323
90159-W0026
90189-06193
90467-07220
90467-14054
90467-17026A0
90467-17027C0
90561-13004
Linked diagrams
5201
