ZRE210L-DEXNKX (2019)
Toyota Corolla (Tup)

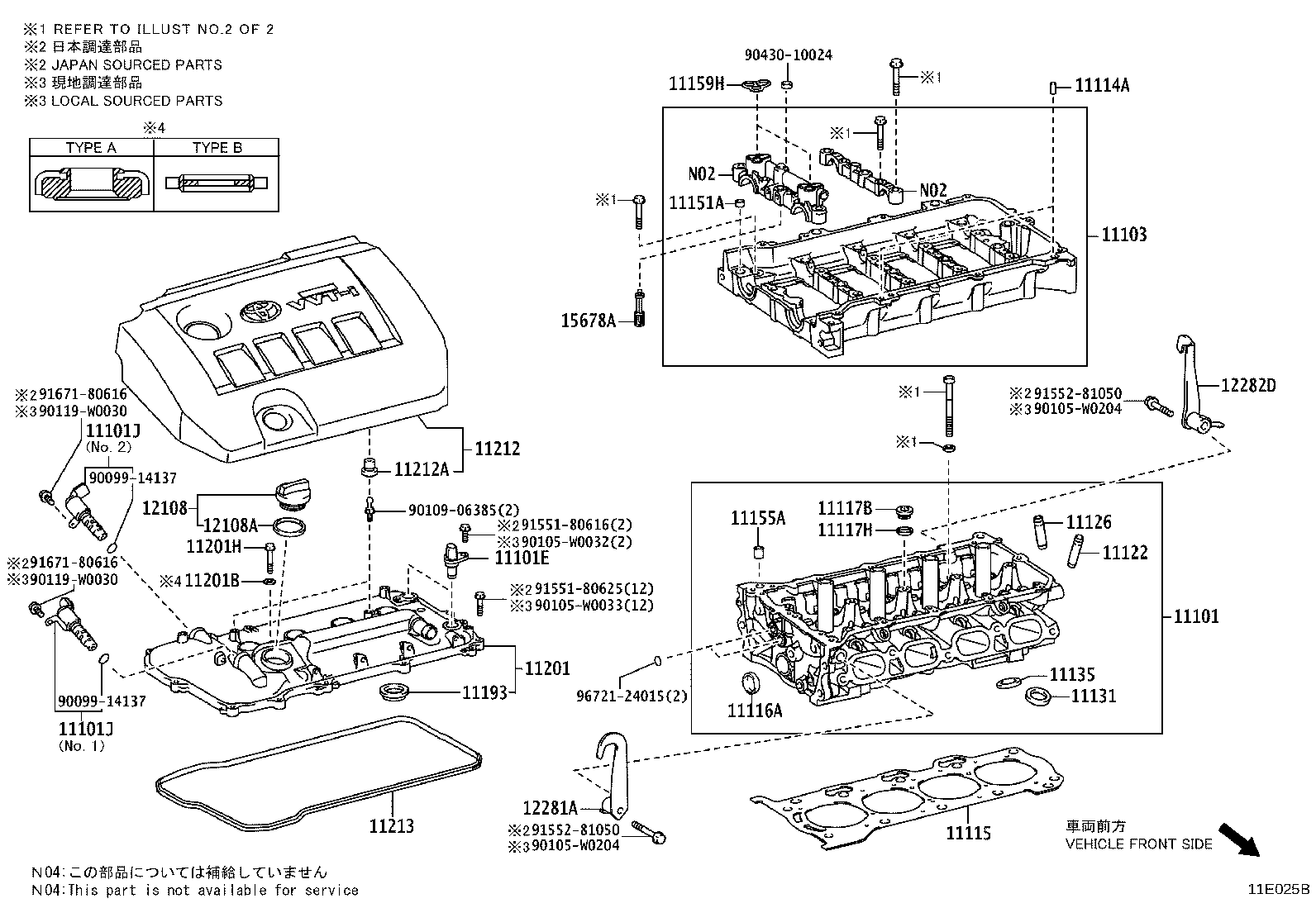

ILLUST NO. 1 OF 2(1901- )1ZRFE,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09710 |
1ZRFE..ZRE210 (L) |
1 | ||
| 11101-39675 |
1ZRFE..ZRE210 (J) |
1 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05060 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.1 |
1 | ||
| 15330-0T050 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.1 |
1 | ||
| 15330-37020 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.2 |
1 | ||
| 15330-0T060 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.2 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.1 |
1 | ||
| 15330-0T050 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.1 |
1 | ||
| 15330-37020 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.2 |
1 | ||
| 15330-0T060 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.2 |
1 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-0T021 |
1ZRFE,2ZRFE..ZRE21# (L) |
1 | ||
| 11103-37021 |
1ZRFE,2ZRFE..ZRE21# (J) |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06001 |
1ZRFE,2ZRFE..ZRE21# L=14,OD=6 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-37061 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-62500 |
1ZRFE..ZRE210..LHD |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31050 |
1ZRFE,2ZRFXE..ZRE210,ZWE21# O/S 0.05 |
8 | ||
| 11122-31050 |
1ZRFE,2ZRFXE..ZRE210,ZWE21# STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-31030 |
1ZRFE,2ZRFXE..ZRE210,ZWE21# O/S 0.05 |
8 | ||
| 11126-31030 |
1ZRFE,2ZRFXE..ZRE210,ZWE21# STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-37040 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) O/S 0.03 |
8 | ||
| 11131-37040 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-37020 |
1ZRFE,2ZRFXE..ZRE210,ZWE21# O/S 0.03 |
8 | ||
| 11135-37020 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
1ZRFE,2ZR#..ZRE21#,ZWE21# L=12.5,OD=8 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-37020 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
4 | ||
| 11193-0T010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0T040 |
1ZRFE,2ZRFE..ZRE21# (L) |
1 | ||
| 11201-37022 |
1ZRFE,2ZRFE..ZRE21# (J) |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 16258-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) TYPE B:REFER ILLUST. |
1 | ||
| 90210-06013 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) TYPE A:REFER ILLUST. |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-W0220 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 91551-80670 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-37180 |
1ZRFE..ZRE210..RUS |
1 | ||
| 11212-37180 |
1ZRFE..ZRE210..RUS WITHOUT(DESTINATION PACKAGE(EUR.)) |
1 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 90480-07008 |
1ZRFE..ZRE210..RUS;1ZRFAE..ZRE210..LHD..(D,N) |
4 | ||
| 90480-07008 |
1ZRFE..ZRE210..RUS WITHOUT(DESTINATION PACKAGE(EUR.)) |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-37021 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) MADE IN JAPAN |
1 | ||
| 11213-0T021 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) MADE IN EUROPE |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-37021 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 12281-0T040 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0T040 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 12282-37011 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-37010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90105-W0204 | ||||
| 90109-06385 | ||||
| 90119-W0030 | ||||
| 90430-10024 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91552-81050 | ||||
| 91671-80616 | ||||
| 96721-24015 | ||||

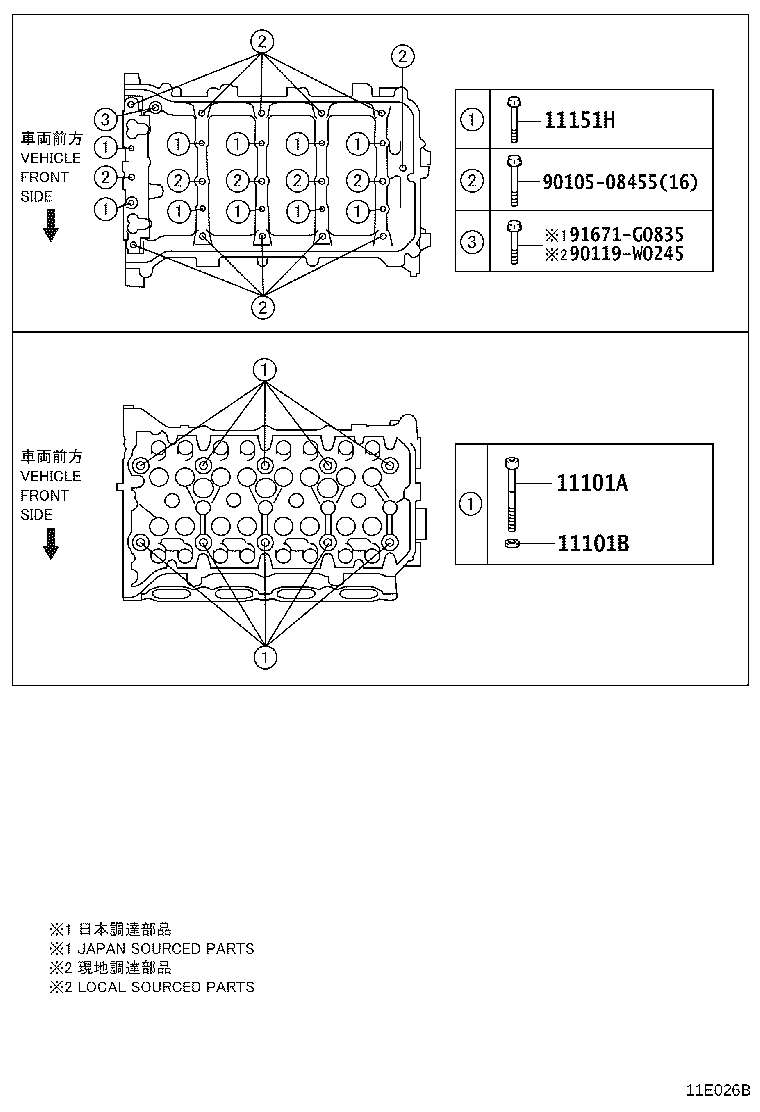

ILLUST NO. 2 OF 2(1901- )1ZRFE,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02166 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
10 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
1ZRFE,2ZR#..ZRE21#,ZWE21# |
10 | ||
| Common parts | ||||
| 90105-08455 | ||||
| 90119-W0245 | ||||
| 91671-G0835 | ||||
