ZRE210L-DEXGPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

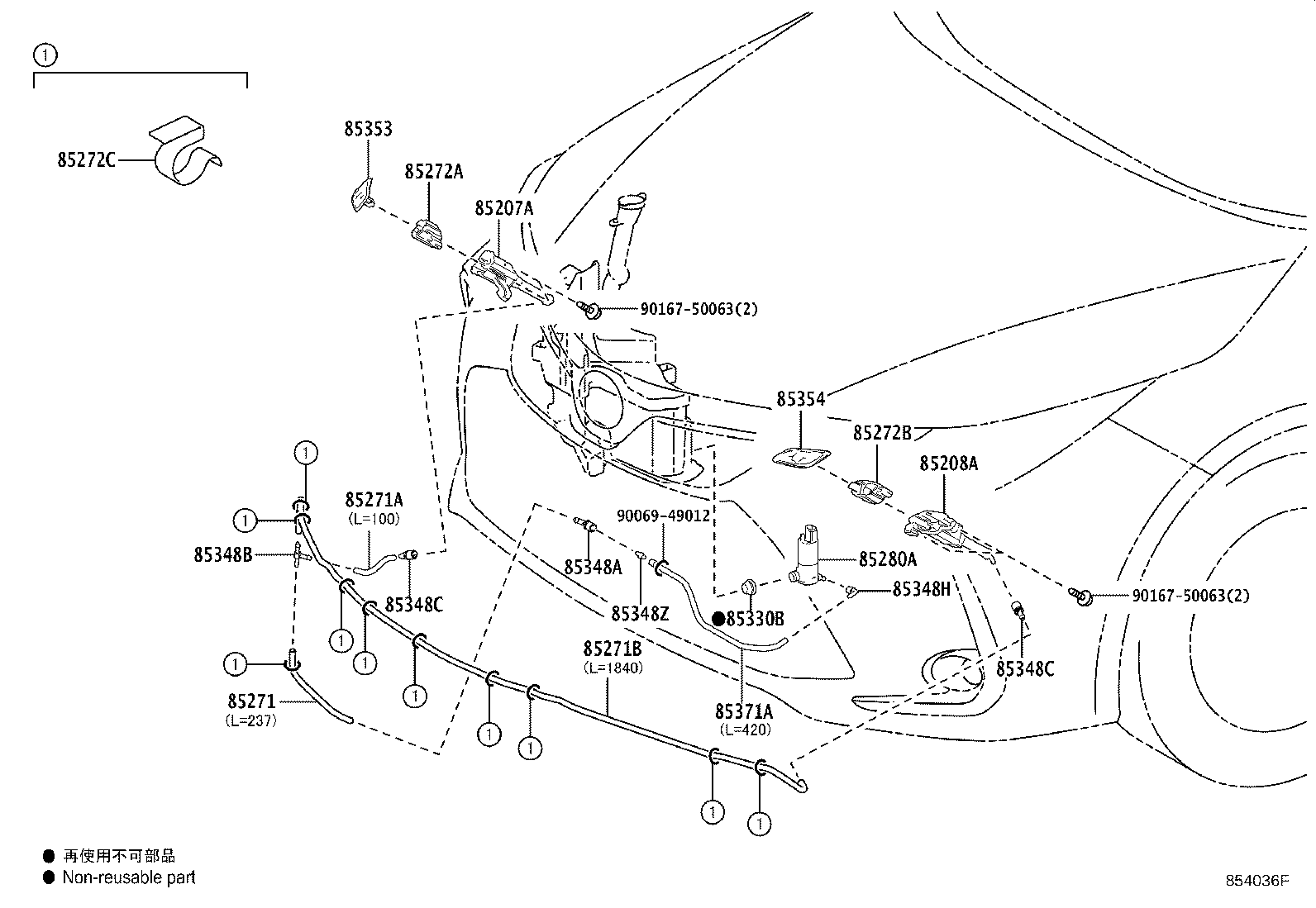

Click highlighted areas on diagram

diagram 85207A 85208A 85271 85271A 85271B 85272A 85272B 85272C 85280A 85330B 85348A 85348B 85348C 85348C 85348H 85348Z 85353 85354 85371A 9006949012 9016750063 9016750063
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-02210

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-02210

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85271-0W050

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85271-0W050

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85271-0W060

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-02120

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85272B - CLAMP, HEADLAMP CLEANER, NO.2
85273-02120

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85272C - CLAMP, HEADLAMP CLEANER, NO.3
90069-49012

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 10
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-05050

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90069-20005

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85278-05110

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85378-0H110

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
85279-05110

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 2
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
85279-05110

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 2
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
85278-05110

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5
85279-02150

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85353 - COVER, HEADLAMP WASHER, RH
85353-02909

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85354 - COVER, HEADLAMP WASHER, LH
85354-02909

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85271-0W050

ZRE210..G..EUR;ZRE210..RHD..EUR

HEADLAMP CLEANER-WITH

 1
Common parts
90069-49012
90167-50063
