ZRE210L-DEXGPW (2019)
Toyota Corolla (Tup)
ILLUST NO. 2 OF 3(1901- )

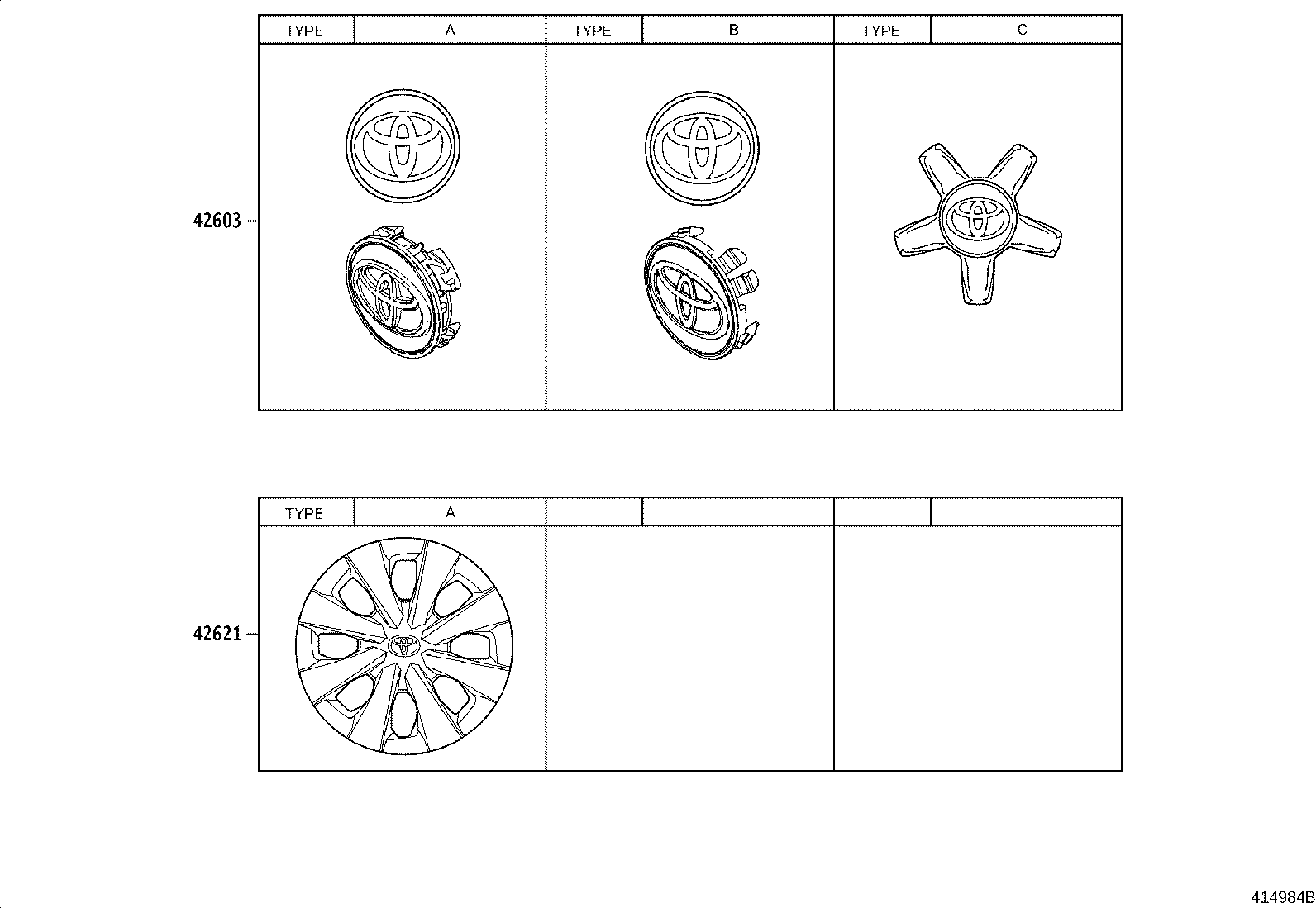

WHELL HUB ORNAMENT & WHEEL CAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-48140 |
ZRE21#..G,N;ZWE211..EUR;ZWE211..G..(GCC,GEN) *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42603-42130 |
MZEA11..LHD..D;ZRE210..LHD..CVT..D;ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..6F..D..(GCC,GEN,RUS) *ALU,TIRE & DISC WHEEL-205/55R16,ALUMINUM,ROUGH ROAD SPEC,TYPE B:REFER ILLUST. |
4 | ||
| 42603-42130 |
ZRE210..G..EUR *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-48140 |
ZRE210..LHD..CVT..D;ZWE211..N..(GCC,GEN);ZRE210..6F..D..(GCC,GEN,RUS) *ALU,TIRE & DISC WHEEL-205/55R16,ALUMINUM,ROUGH ROAD SPEC,TYPE A:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-02550 |
MZEA11..D;ZRE210..LHD..D;ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN) TYPE A:REFER ILLUST. |
4 | ||
ILLUST NO. 3 OF 3(1901- )

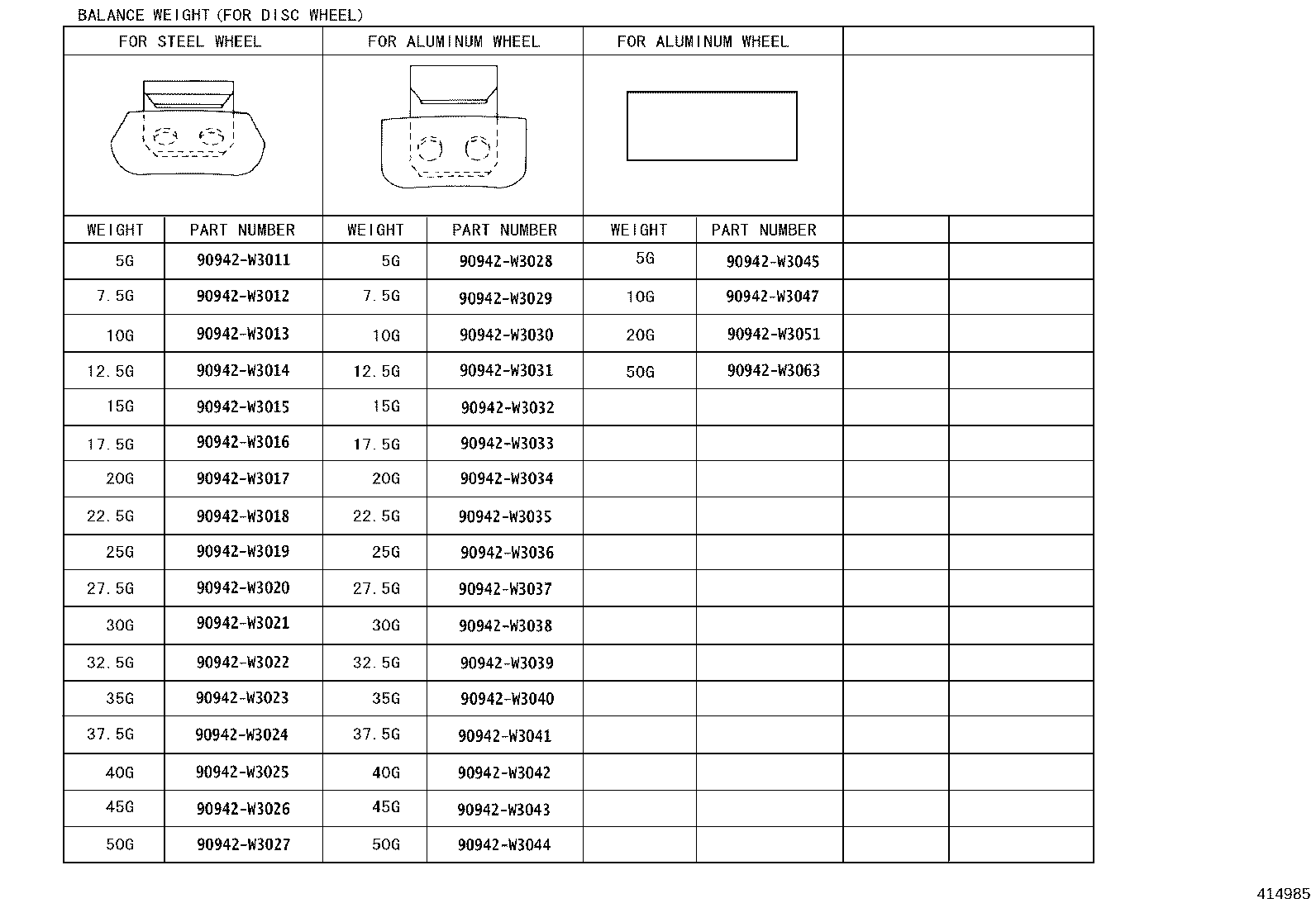

BALANCE WEIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-W3011 | ||||
| 90942-W3012 | ||||
| 90942-W3013 | ||||
| 90942-W3014 | ||||
| 90942-W3015 | ||||
| 90942-W3016 | ||||
| 90942-W3017 | ||||
| 90942-W3018 | ||||
| 90942-W3019 | ||||
| 90942-W3020 | ||||
| 90942-W3021 | ||||
| 90942-W3022 | ||||
| 90942-W3023 | ||||
| 90942-W3024 | ||||
| 90942-W3025 | ||||
| 90942-W3026 | ||||
| 90942-W3027 | ||||
| 90942-W3028 | ||||
| 90942-W3029 | ||||
| 90942-W3030 | ||||
| 90942-W3031 | ||||
| 90942-W3032 | ||||
| 90942-W3033 | ||||
| 90942-W3034 | ||||
| 90942-W3035 | ||||
| 90942-W3036 | ||||
| 90942-W3037 | ||||
| 90942-W3038 | ||||
| 90942-W3039 | ||||
| 90942-W3040 | ||||
| 90942-W3041 | ||||
| 90942-W3042 | ||||
| 90942-W3043 | ||||
| 90942-W3044 | ||||
| 90942-W3045 | ||||
| 90942-W3047 | ||||
| 90942-W3051 | ||||
| 90942-W3063 | ||||

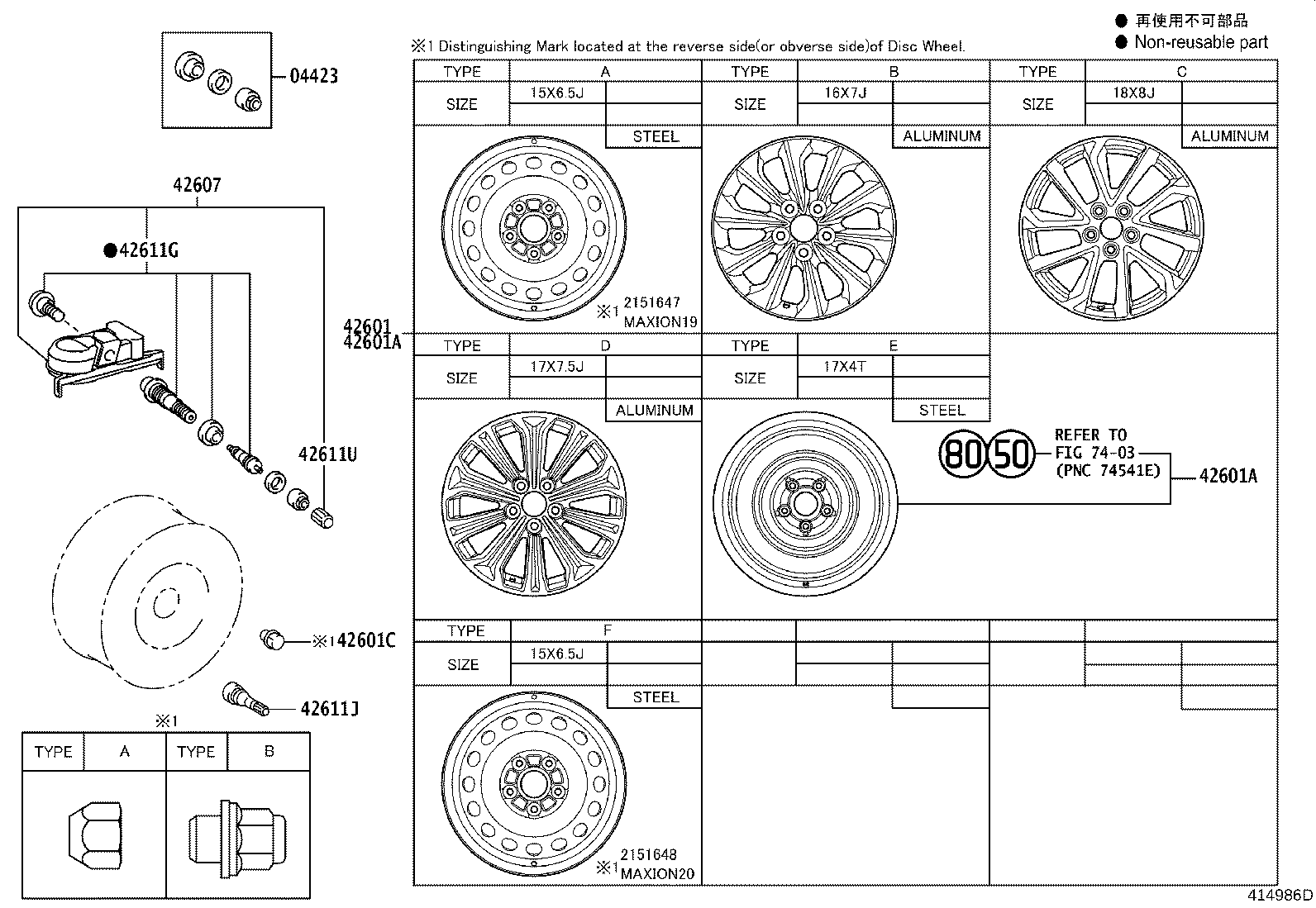

ILLUST NO. 1 OF 3(1901- )
DISC WHEEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-02010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 04423-02010 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..EUR,GCC;ZRE210..LHD..(D,N)..(EUR,GCC,RUS) |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-02Q90 |
MZEA11..D;ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..D..(EUR,GCC,GEN) 15X6.5J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARETIRE-GROUND TIRE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARE TIRE-GROUNDTIRE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC,TYPE D:REFER ILLUST. |
4 | ||
| 42611-02R40 |
ZRE210..G..EUR 18X8J,#,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02R10 |
ZRE210..LHD..D;ZRE210..G..RUS;ZWE211..GCC,GEN;ZRE210..RHD..D..GEN;MZEA11,ZRE211..LHD..(D,G) 16X7J,TIRE & DISC WHEEL-205/55R16,ALUMINUM,ROUGH ROAD SPEC,TYPE B:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARE TIRE-GROUNDTIRE,TYPE D:REFER ILLUST. |
1 | ||
| 42611-02Q90 |
ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) 15X6.5J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARETIRE-GROUND TIRE,TYPE D:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ZRE210..G..EUR;ZRE210..RHD..EUR 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),TYPE E:REFER ILLUST. |
1 | ||
| 42611-02R10 |
ZWE211..GCC,GEN;ZRE210..LHD..CVT..D;ZRE210..RHD..D..GEN;ZRE21#..G..(GCC,GEN,RUS);ZRE210..LHD..6F..D..(GCC,GEN,RUS) 16X7J,TIRE & DISC WHEEL-205/55R16,ALUMINUM,ROUGH ROAD SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARE TIRE-GROUNDTIRE,TYPE D:REFER ILLUST. |
1 | ||
| 42611-02Q90 |
ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) 15X6.5J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42611-02R30 |
ZRE210..G..EUR 17X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARETIRE-GROUND TIRE,TYPE D:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ZRE210..G..EUR;ZRE210..RHD..EUR 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),TYPE E:REFER ILLUST. |
1 | ||
| 42611-02R10 |
ZWE211..GCC,GEN;ZRE210..LHD..CVT..D;ZRE210..RHD..D..GEN;ZRE21#..G..(GCC,GEN,RUS);ZRE210..LHD..6F..D..(GCC,GEN,RUS) 16X7J,TIRE & DISC WHEEL-205/55R16,ALUMINUM,ROUGH ROAD SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
MZEA11..LHD..D;ZRE210..LHD..CVT..D;ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..6F..D..(GCC,GEN,RUS) TIRE & DISC WHEEL-205/55R16,ALUMINUM,ROUGH ROAD SPEC,TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
ZRE210..G..EUR TYPE B:REFER ILLUST. |
20 | ||
| 90942-01007 |
MZEA11..D;ZRE210..LHD..D;ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN) TYPE A:REFER ILLUST. |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-02070 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 42607-02070 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..EUR,GCC;ZRE210..LHD..(D,N)..(EUR,GCC,RUS) |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-W5003 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 90942-W5003 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..EUR,GCC;ZRE210..LHD..(D,N)..(EUR,GCC,RUS) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ZRE210..G..EUR TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ZRE210..G..EUR;ZRE210..RHD..EUR SPARE TIRE-TEMPORARY(T125/70D17) |
1 | ||
| 90942-05009 |
ZRE210..LHD..CVT..D;ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN,RUS);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 90942-05009 |
ZRE210..G..EUR TURKEY SPEC&TIRE & DISC WHEEL-225/45R17,ALUMINUM,ROUGH ROAD SPEC&SPARE TIRE-GROUND TIRE |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-W5001 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 90942-W5001 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..EUR,GCC;ZRE210..LHD..(D,N)..(EUR,GCC,RUS) |
4 | ||
| Linked diagrams | ||||
| 7403 | ||||
