ZRE210L-DEXGPW (2019)
Toyota Corolla (Tup)

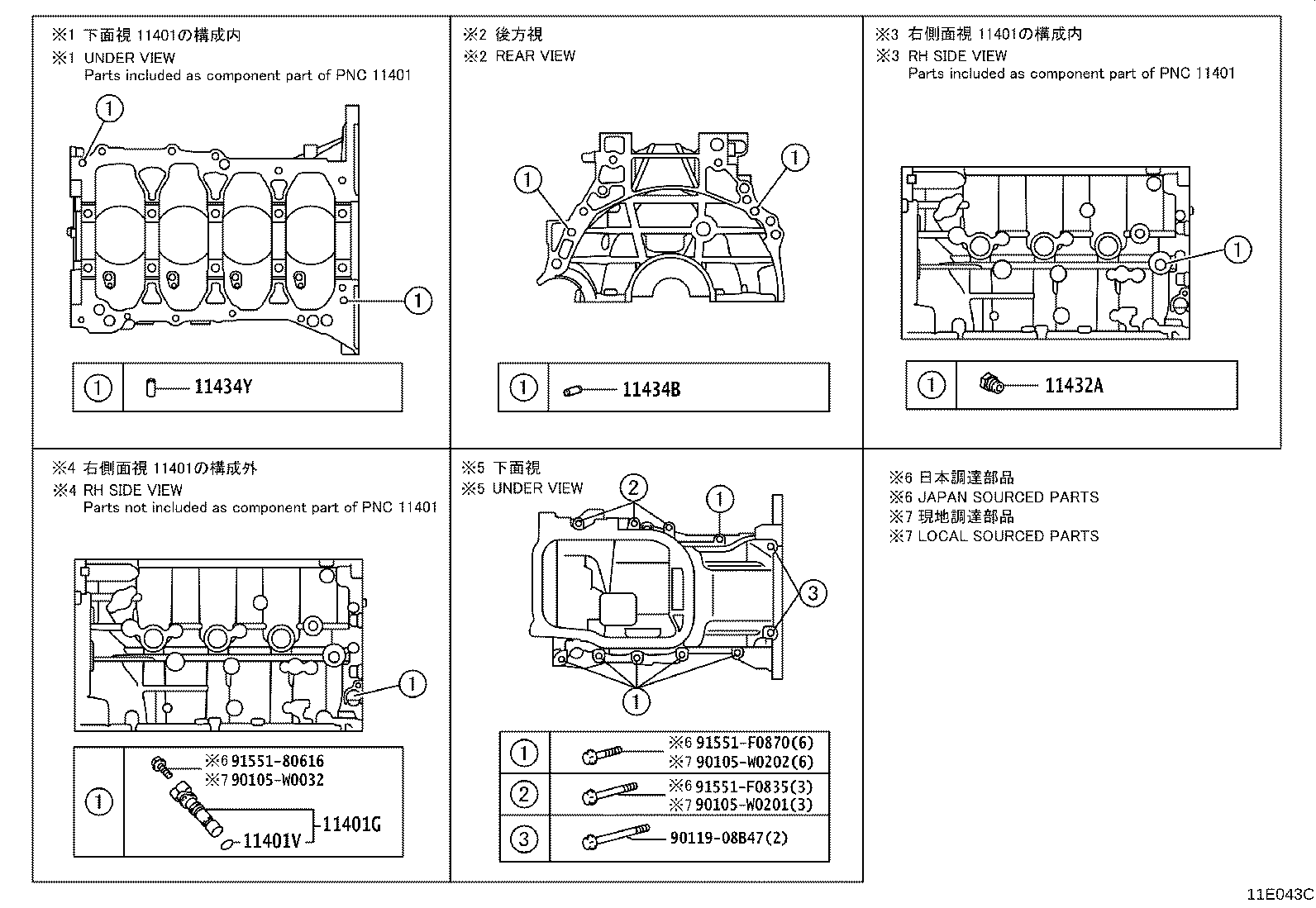

ILLUST NO. 2 OF 2(1901- )1ZR#,2ZR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05070 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 90919-05070 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 11401V - O-RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 90301-14016 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53006 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 90345-53006 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD L=22,OD=10 |
2 | ||
| 90250-10113 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) L=22,OD=10 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 90250-08120 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
2 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0201 | ||||
| 90105-W0202 | ||||
| 90119-08B47 | ||||
| 91551-80616 | ||||
| 91551-F0835 | ||||
| 91551-F0870 | ||||

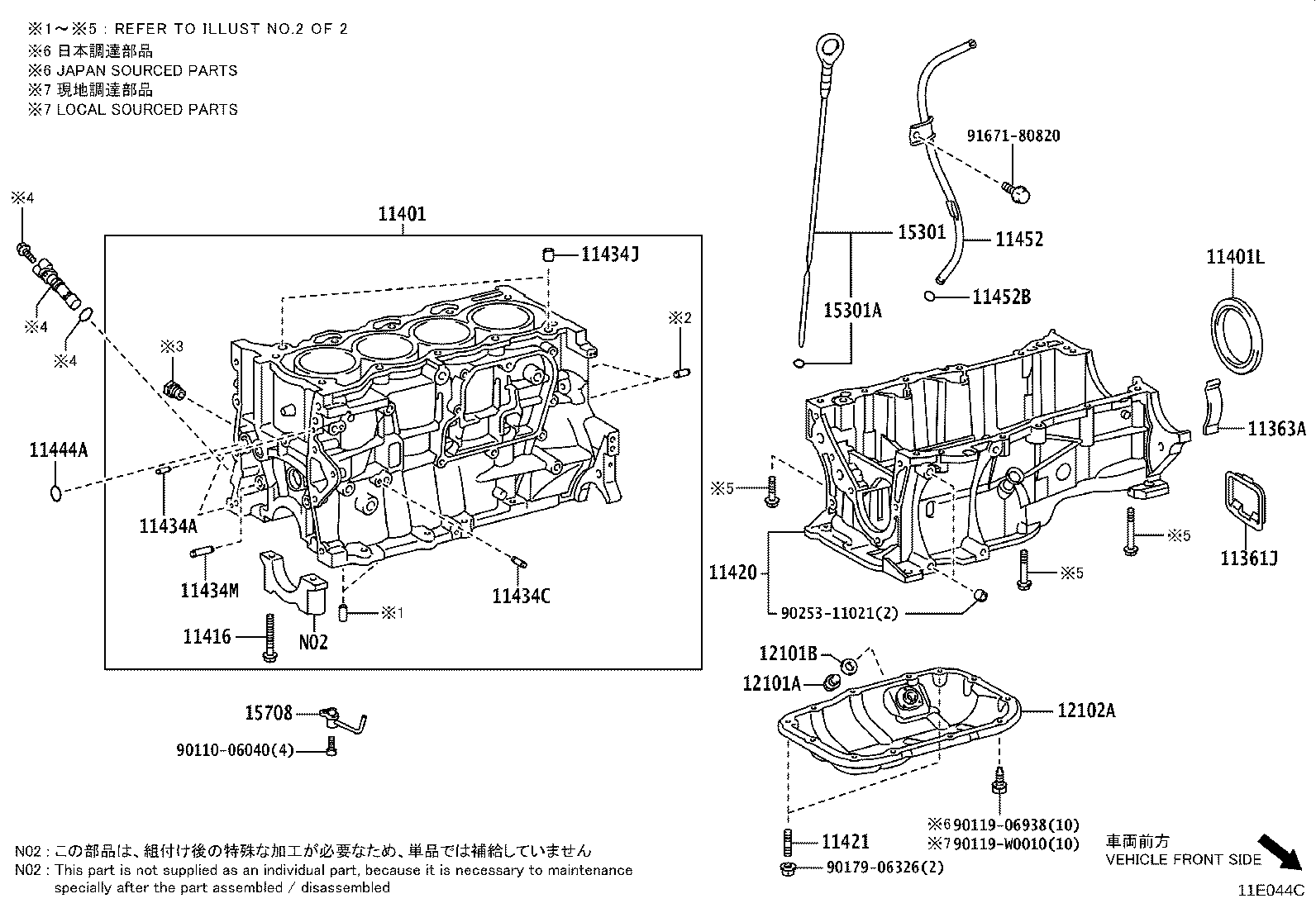

ILLUST NO. 1 OF 2(1901- )1ZR#,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-21011 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 11361-21011 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-33010 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11363-33010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-09446 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (L) |
1 | ||
| 11410-09446 |
1ZRFE..ZRE210;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 11410-39235 |
1ZRFE..ZRE210;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 11410-39235 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (J) |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-78008 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (J) |
1 | ||
| 90311-W0011 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 90311-78008 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 90311-W0011 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02163 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
10 | ||
| 90910-02163 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
10 | ||
| 11420 - CRANKCASE ASSY, STIFFENING | ||||
| 11420-0T030 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (L) |
1 | ||
| 11420-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 11420-0T030 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 11420-37010 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (J) |
1 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
2 | ||
| 90126-06028 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) L=12,OD=4.0 |
2 | ||
| 90250-04097 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD L=12,OD=4.0 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD L=12,OD=4.0 |
2 | ||
| 90250-04097 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) L=12,OD=4.0 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13001 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
2 | ||
| 90253-13001 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER) | ||||
| 90250-10030 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 90250-10030 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11444A - RING, O | ||||
| 96723-24020 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 96723-24020 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-37011 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 11452-37011 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 96721-19010 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 90341-12012 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 90430-12031 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0T040 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (L) |
1 | ||
| 12102-0T040 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 12102-37010 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD (J) |
1 | ||
| 12102-37010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-37010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 15301-37010 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
1 | ||
| 96741-19005 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-37012 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
4 | ||
| 15708-37012 |
1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD |
4 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90119-06938 | ||||
| 90119-W0010 | ||||
| 90179-06326 | ||||
| 90253-11021 | ||||
| 91671-80820 | ||||
