ZRE210L-DEXGKX (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE21#

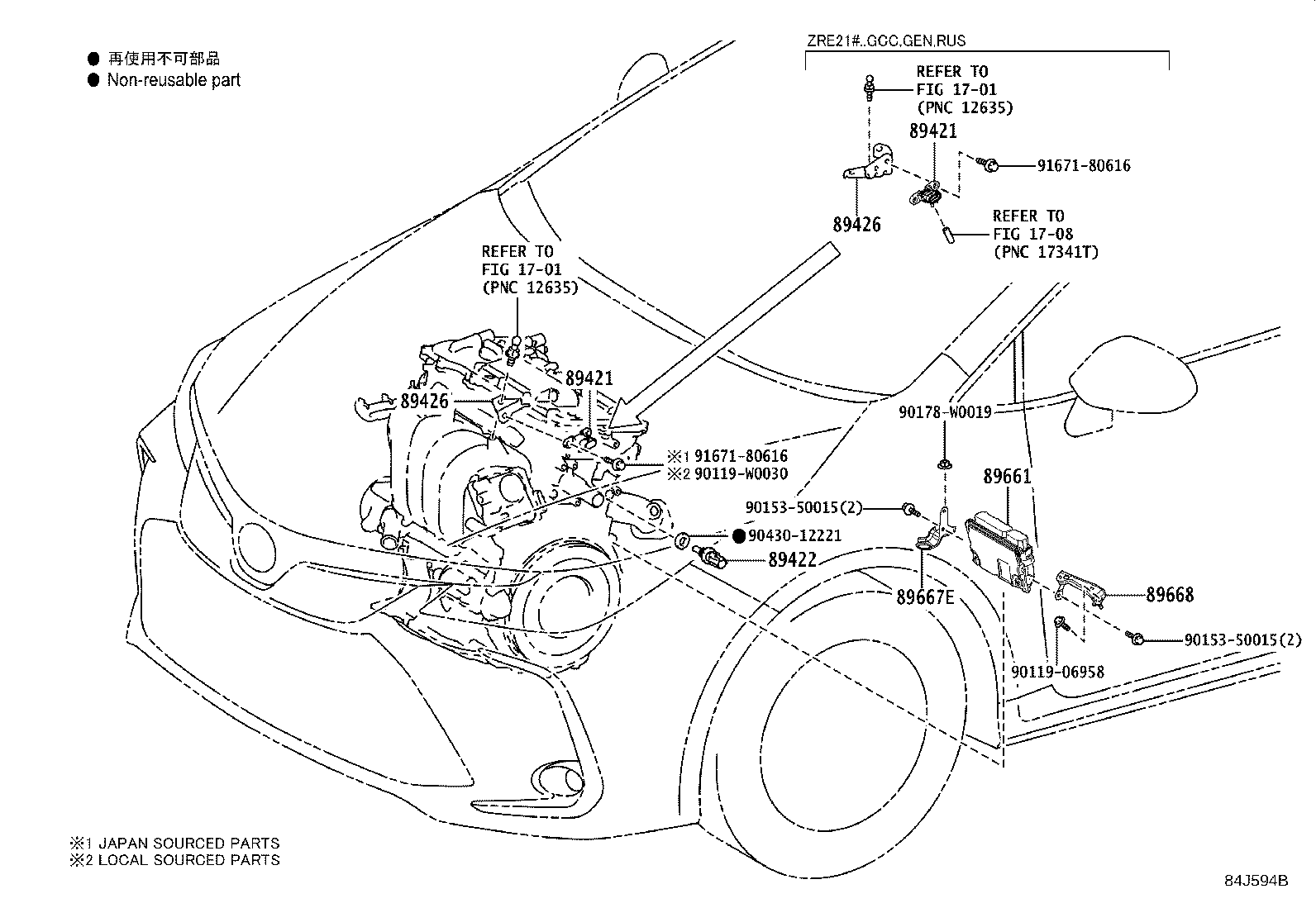

Click highlighted areas on diagram

diagram 1701 1701 1708 89421 89421 89422 89426 89426 89661 89667E 89668 9011906958 90119W0030 9015350015 9015350015 90178W0019 9043012221 9167180616 9167180616
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
89426 - BRACKET, VACUUM SENSOR
89426-12270

ZRE21#..GCC,GEN,RUS

 1
89426 - BRACKET, VACUUM SENSOR
89426-12270

ZRE21#..GCC,GEN,RUS

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0ZZ00

ZRE210..CVT..RUS

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-F4010

ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02530

ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
Common parts
90119-06958
90119-W0030
90153-50015
90178-W0019
90430-12221
91671-80616
Linked diagrams
1701
1708
