ZRE210L-DEXGKX (2019)
Toyota Corolla (Tup)
(1901- )

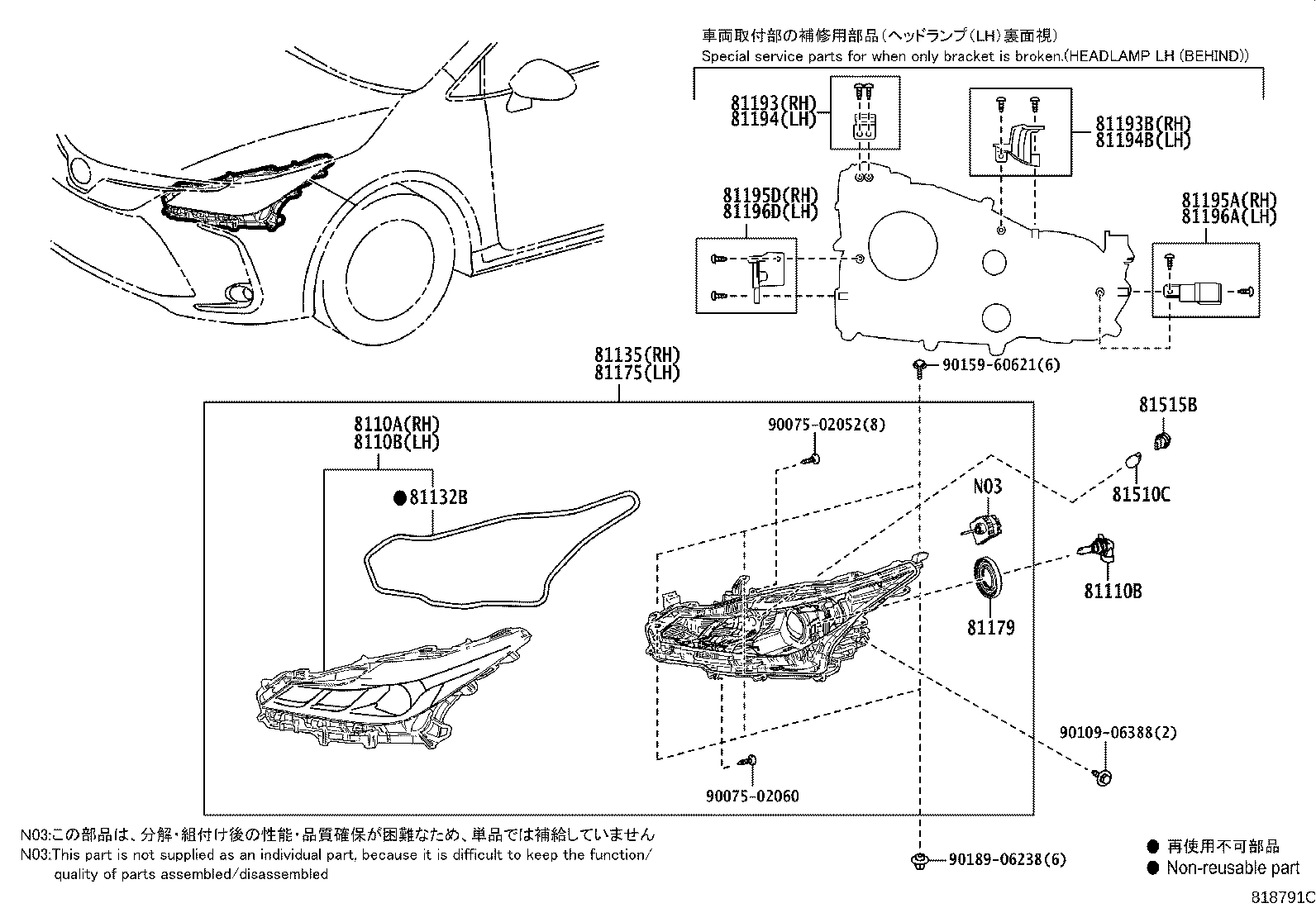

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-02T30 |
ZRE21#,ZWE211..D,N |
1 | ||
| 8110A-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 8110A-02T31 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N |
1 | ||
| 8110A-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 8110B-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 8110B-02T30 |
ZRE21#,ZWE211..D,N |
1 | ||
| 8110B-02T31 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N 12V 55W,HALOGEN |
2 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-02T30 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02T30 |
ZRE21#,ZWE211..LHD..(D,N) |
1 | ||
| 81145-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 81145-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 81130-02T31 |
MZEA11,ZRE21#,ZWE21#..LHD..(D,N) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02T30 |
ZRE21#,ZWE211..LHD..(D,N) |
1 | ||
| 81170-02T31 |
MZEA11,ZRE21#,ZWE21#..LHD..(D,N) |
1 | ||
| 81185-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 81185-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02310 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-02330 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02310 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-02330 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-02320 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-02300 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-02320 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-02300 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(1901- )

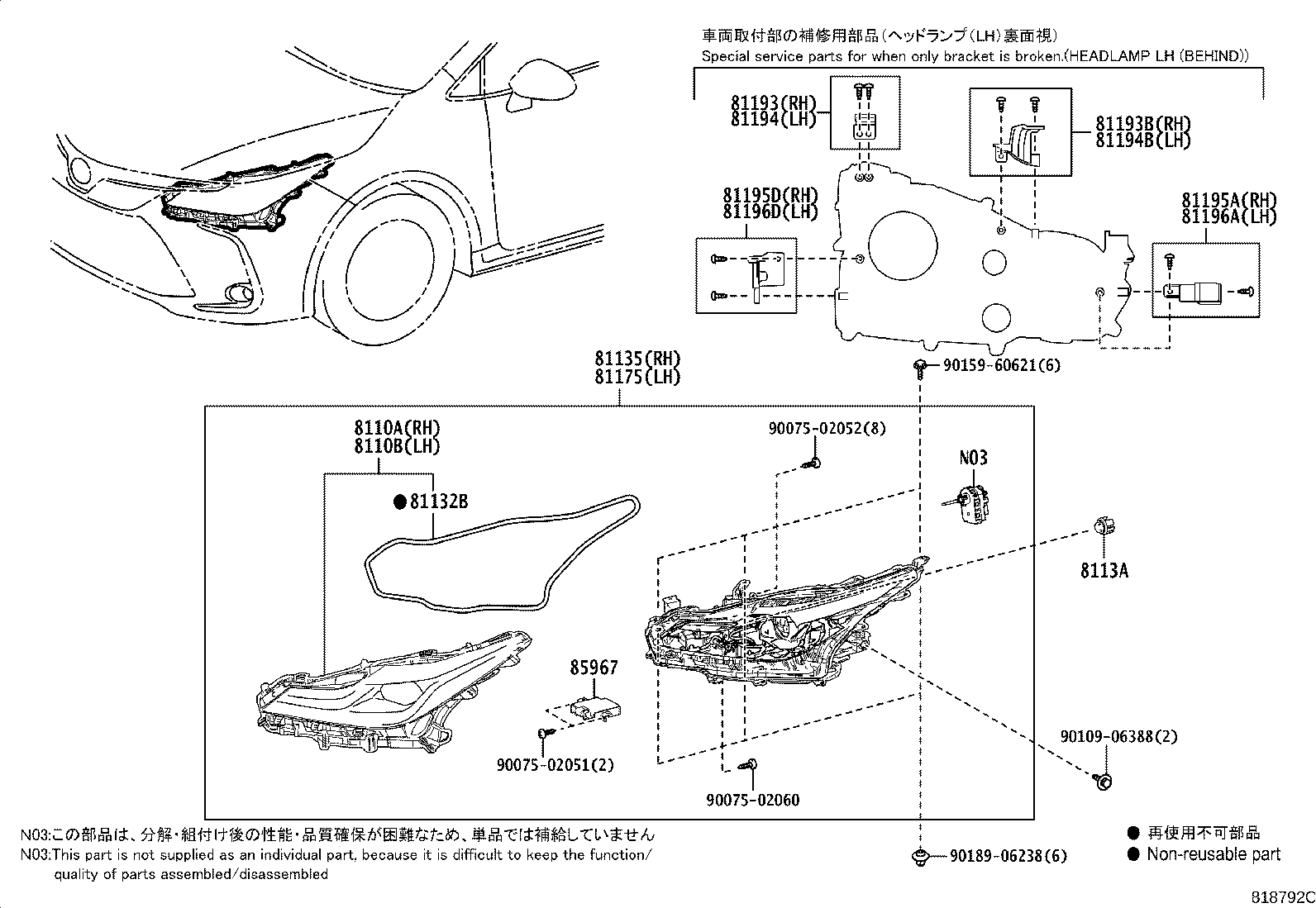

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-02T30 |
ZRE21#,ZWE211..D,N |
1 | ||
| 8110A-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 8110A-02T31 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N |
1 | ||
| 8110A-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 8110B-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 8110B-02T30 |
ZRE21#,ZWE211..D,N |
1 | ||
| 8110B-02T31 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..D,N |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-02T30 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02T30 |
ZRE21#,ZWE211..LHD..(D,N) |
1 | ||
| 81145-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 81145-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 81130-02T31 |
MZEA11,ZRE21#,ZWE21#..LHD..(D,N) |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 81536-12D30 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02T30 |
ZRE21#,ZWE211..LHD..(D,N) |
1 | ||
| 81170-02T31 |
MZEA11,ZRE21#,ZWE21#..LHD..(D,N) |
1 | ||
| 81185-02T51 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 81185-02T50 |
ZRE21#,ZWE211..G |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02310 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-02330 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02310 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-02330 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-02320 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-02300 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-02320 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-02300 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-12050 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
2 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
