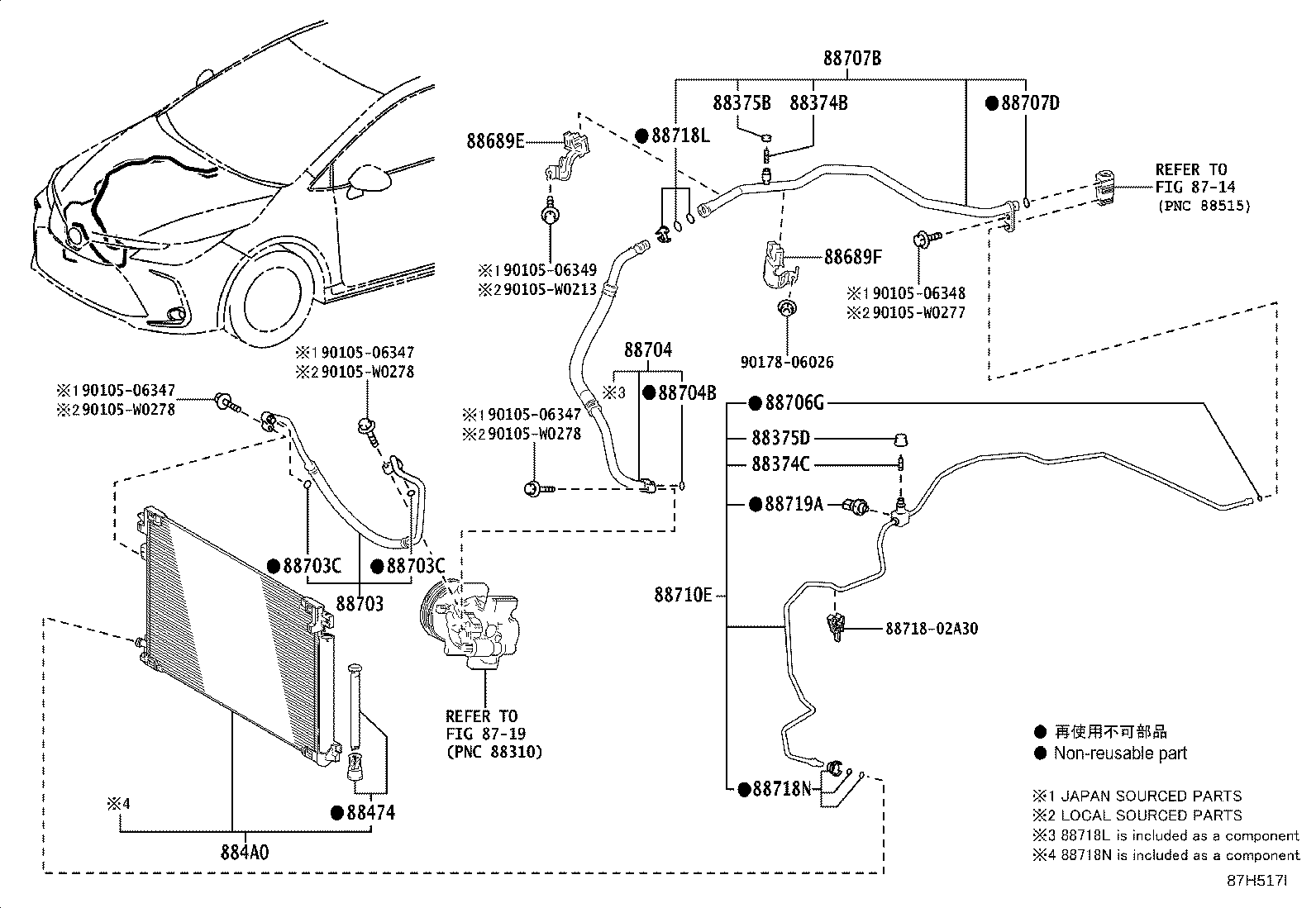

ZRE210L-DEXDPW (2019)
Toyota Corolla (Tup)
(1901- )ZRE21#..LHD..EUR,GEN,RUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 88374-30010 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 88374-30010 |
ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 88375-30290 |
ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88375-30280 |
ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 88474-12020 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-02120 |
ZRE210..RHD..D..GEN;ZRE21#..(G,N)..(GCC,GEN,RUS);ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) |
1 | ||
| 884A0-02120 |
ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-02C60 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88688-02C60 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211..EUR,GEN;ZRE210..LHD..(D,N)..(EUR,GEN) |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-02C80 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211..EUR,GEN;ZRE210..LHD..(D,N)..(EUR,GEN) |
1 | ||
| 88688-02C80 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-02D20 |
ZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 88703-02D20 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR ID=10.8,OD=15.6,AIR CONDITIONER-COOLER LESS |
1 | ||
| 90099-14120 |
ZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) ID=10.8,OD=15.6 |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR ID=10.8,OD=15.6,AIR CONDITIONER-COOLER LESS |
1 | ||
| 90099-14120 |
ZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) ID=10.8,OD=15.6 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-02F20 |
ZRE211..LHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GEN) |
1 | ||
| 88704-02F20 |
ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR ID=13.4,OD=18.2,AIR CONDITIONER-COOLER LESS |
1 | ||
| 90099-14121 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) ID=13.4,OD=18.2 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
ZRE211,ZWE21#;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR ID=6.7,OD=10.3,AIR CONDITIONER-COOLER LESS |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-02580 |
ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88707-02580 |
ZRE210..LHD..6F..D..GEN;ZRE21#..LHD..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(EUR,GEN) |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90068-14038 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR ID=13.4,OD=18.2,AIR CONDITIONER-COOLER LESS |
1 | ||
| 90068-14038 |
ZWE211..GCC,GEN;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211..EUR,GEN;ZRE210..LHD..(D,N)..(EUR,GEN) ID=13.4,OD=18.2 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-02E40 |
ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88710-02E40 |
ZRE210..LHD..6F..D..GEN;ZRE21#..LHD..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(EUR,GEN) |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88718-52280 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88718-1E150 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
ZRE210..RHD;ZRE210..N..EUR;ZRE210..LHD..CVT..D..EUR AIR CONDITIONER-COOLER LESS |
1 | ||
| 88719-11010 |
MZEA11..RHD;ZRE211,ZWE21#;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| Common parts | ||||
| 88718-02A30 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90105-W0213 | ||||
| 90105-W0277 | ||||
| 90105-W0278 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
