ZRE210L-DEXDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE21#..LHD

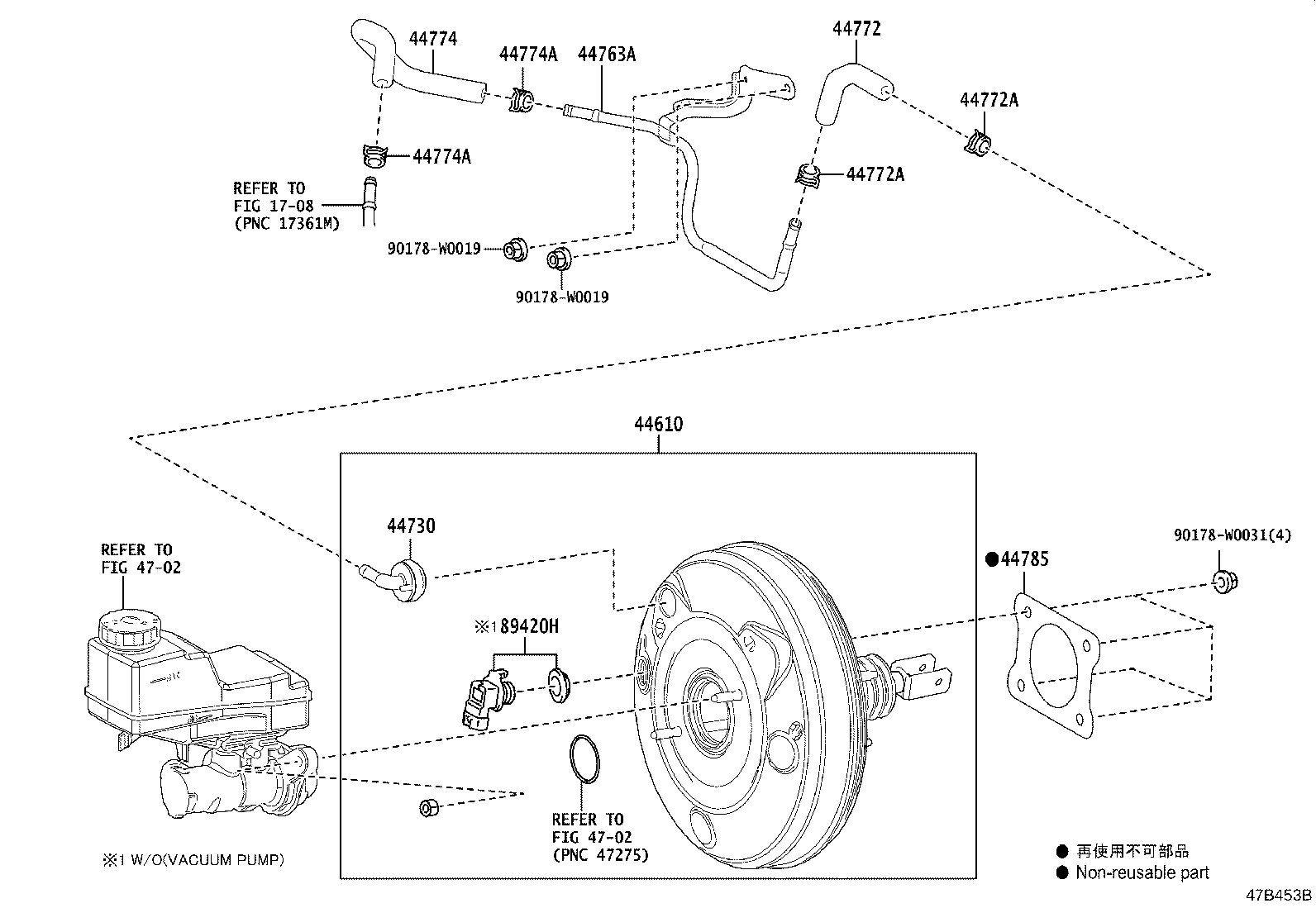

Click highlighted areas on diagram

BOSCH

diagram 1708 44610 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 4702 89420H 90178W0019 90178W0019 90178W0031
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09F90

MZEA11..LHD..CVT;ZRE210..LHD..CVT..(D,N)..EUR

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-F9010

MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12600

ZRE211..LHD;ZRE210..G..RUS;ZRE210..LHD..(D,N)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12860

ZRE211..LHD;ZRE210..G..RUS;ZRE210..LHD..(D,N)

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12A30

ZRE211..LHD;ZRE210..G..RUS;ZRE210..LHD..(D,N)

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44785 - GASKET, BRAKE BOOSTER
44785-05020

MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
Common parts
90178-W0019
90178-W0031
Linked diagrams
1708
4702

(1901- )ZRE21#..LHD

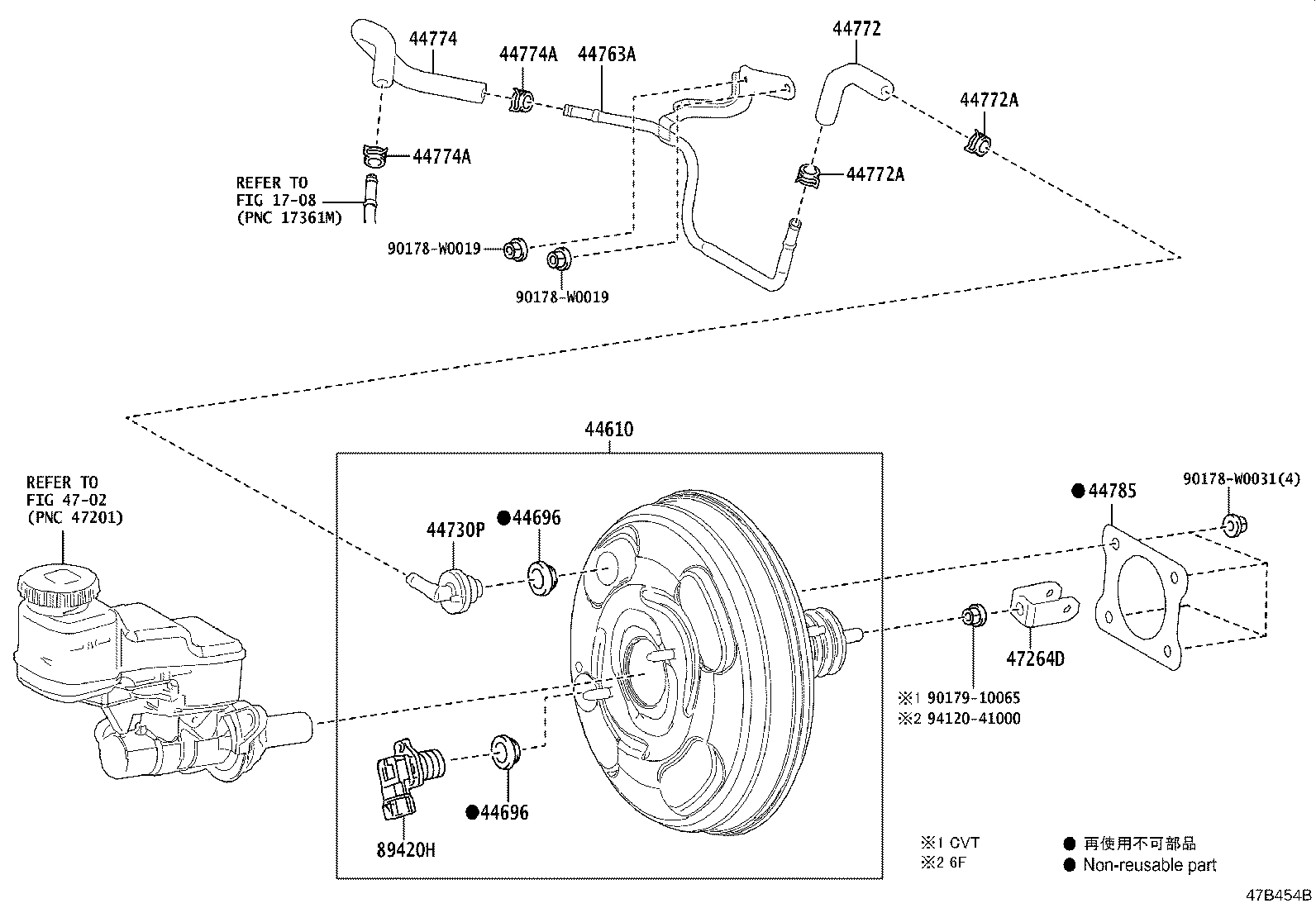

Click highlighted areas on diagram

ADVICS

diagram 1708 44610 44696 44696 44730P 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 47264D 89420H 90178W0019 90178W0019 90178W0031 9017910065 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09F90

MZEA11..LHD..CVT;ZRE210..LHD..CVT..(D,N)..EUR

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12600

ZRE211..LHD;ZRE210..G..RUS;ZRE210..LHD..(D,N)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12860

ZRE211..LHD;ZRE210..G..RUS;ZRE210..LHD..(D,N)

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12A30

ZRE211..LHD;ZRE210..G..RUS;ZRE210..LHD..(D,N)

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE211;MZEA11..RHD;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
44785 - GASKET, BRAKE BOOSTER
44785-05020

MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
Common parts
90178-W0019
90178-W0031
90179-10065
94120-41000
Linked diagrams
1708
4702
