ZRE210L-DEXDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )LHD

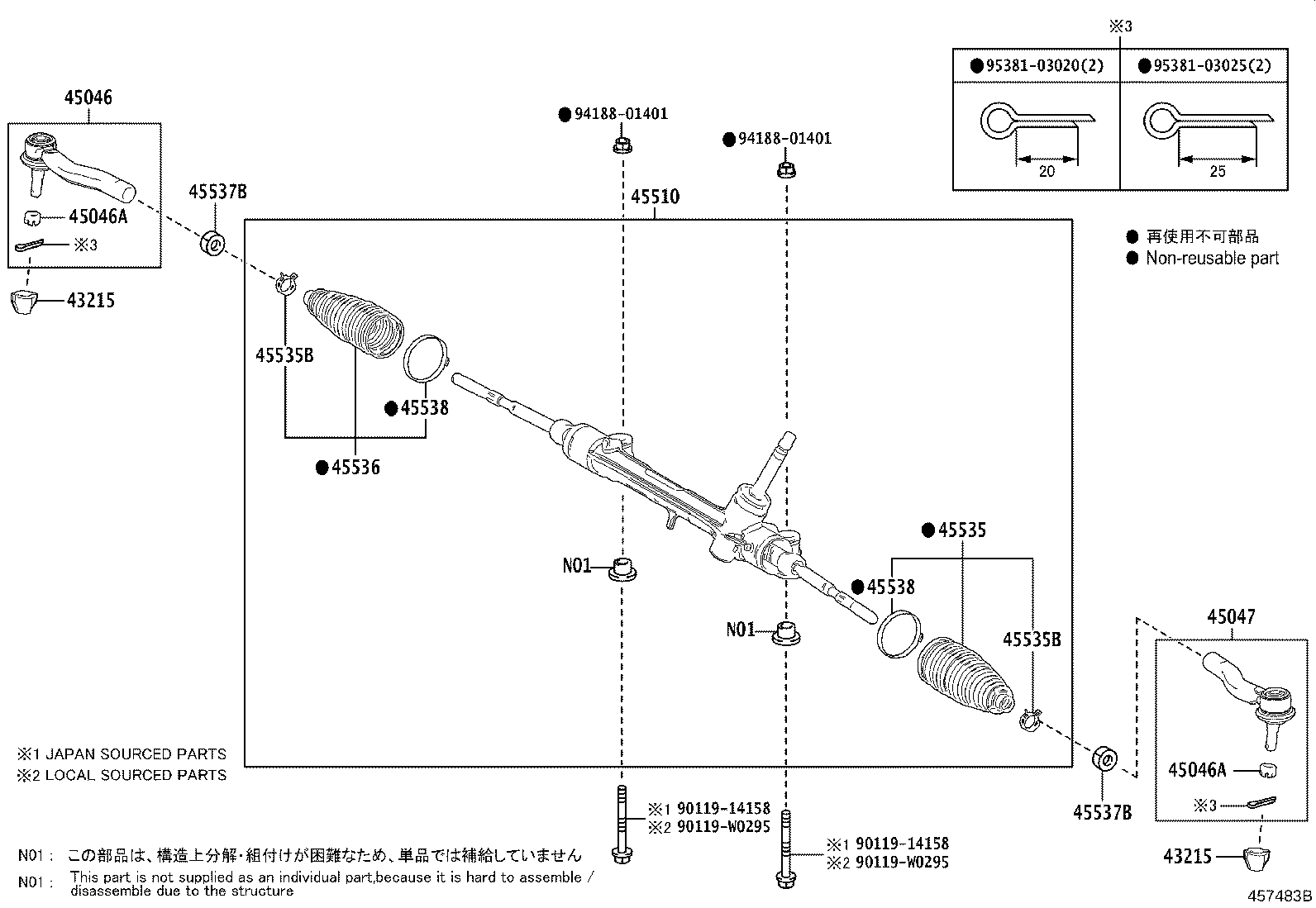

Click highlighted areas on diagram

diagram 43215 43215 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45536 45537B 45537B 45538 45538 9011914158 9011914158 90119W0295 90119W0295 9418801401 9418801401 9538103020 9538103025
Part # Description Qty Price
43215 - SEAL, STEERING KNUCKLE
43215-12010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
43215 - SEAL, STEERING KNUCKLE
43215-12010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
45046 - END SUB-ASSY, TIE ROD, RH
45046-F9010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-F9010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45510 - GEAR ASSY, STEERING
45510-02420

MZEA11,ZRE21#,ZWE21#..LHD..(D,N)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-F9010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-02010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-02010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-F9010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45537B - NUT, RACK END LOCK
90178-16001

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
45537B - NUT, RACK END LOCK
90178-16001

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
45538 - RETAINER, STEERING RACK BOOT
45538-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
45538 - RETAINER, STEERING RACK BOOT
45538-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
Common parts
90119-14158
90119-W0295
94188-01401
95381-03020
95381-03025
