ZRE210L-DEXDKX (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MZEA11,ZRE21#..LHD..CVT

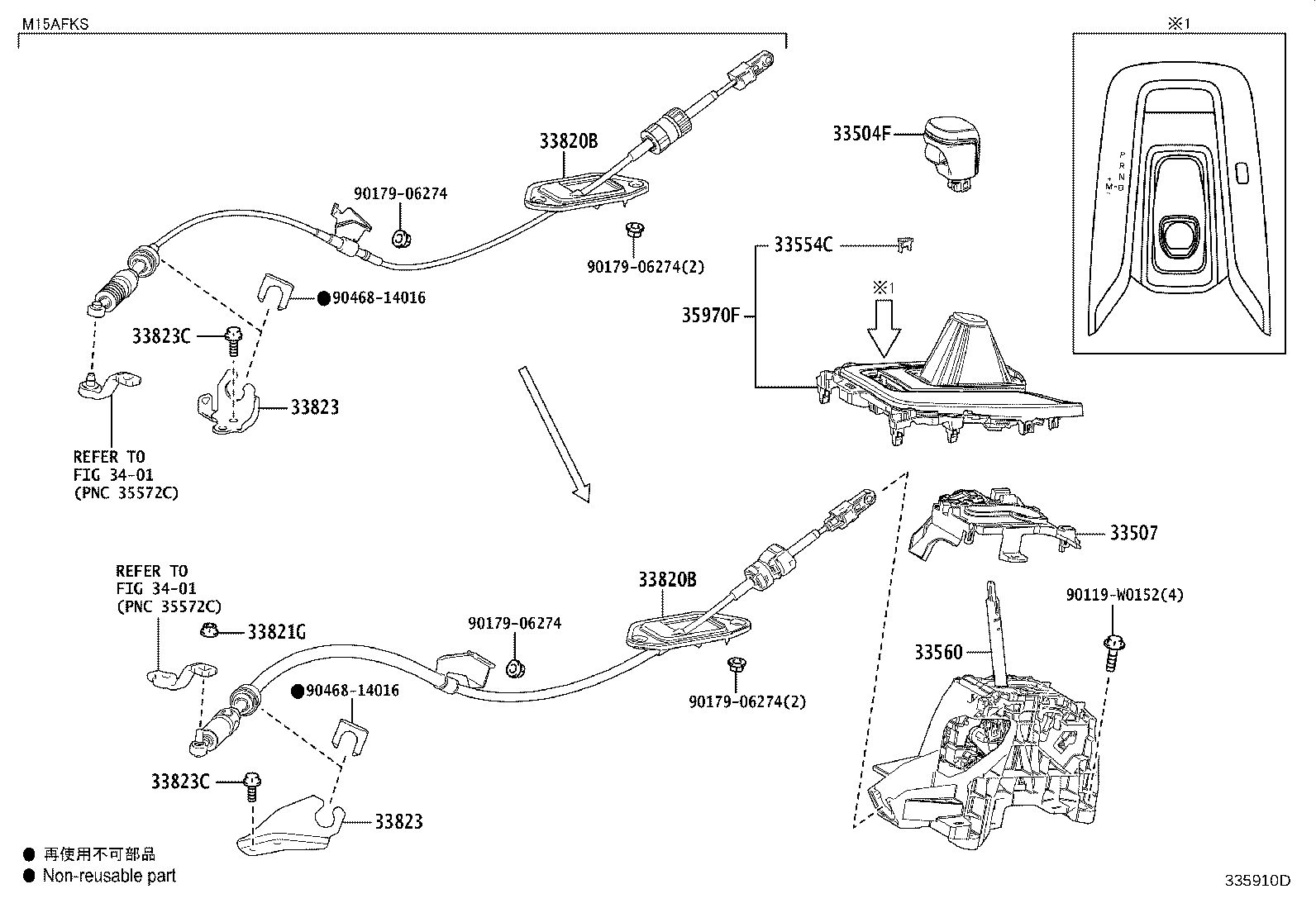

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33820B 33821G 33823 33823 33823C 33823C 3401 3401 35970F 90119W0152 9017906274 9017906274 9017906274 9017906274 9046814016 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12800C0

ZRE210..CVT..D..RUS

STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER),BLACK,TRIM0#,2#

 1
33504-33170C0

MZEA11..CVT..D;ZRE210..LHD..CVT..D;ZRE210..RHD..CVT..D..GEN

BLACK,TRIM0#,2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02020

ZRE210..G..RUS;ZRE210..LHD..CVT..(D,N);MZEA11,ZRE211,ZWE21#..LHD..CVT

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02190

ZRE210..G..RUS;ZRE210..LHD..CVT..(D,N);MZEA11,ZRE211,ZWE21#..LHD..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-F4010

MZEA11,ZRE21#..LHD..CVT..(D,N)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02A80

ZRE21#..CVT..(GCC,GEN,RUS)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02A80

ZRE21#..CVT..(GCC,GEN,RUS)

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-W0031

ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12340

ZRE211;ZRE210..G..RUS;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12340

ZRE211;ZRE210..G..RUS;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N)

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0016

ZRE210..G..RUS;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N);MZEA11,ZRE211,ZWE21#..CVT

 2
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0016

ZRE210..G..RUS;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N);MZEA11,ZRE211,ZWE21#..CVT

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02060C0

ZRE210..G..RUS;ZRE210..LHD..CVT..(D,N);MZEA11,ZRE211..LHD..CVT

BLACK,TRIM0#,2#

 1
Common parts
90119-W0152
90179-06274
90468-14016
Linked diagrams
3401
