ZRE210L-DEXDKX (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZR#,2ZRFE

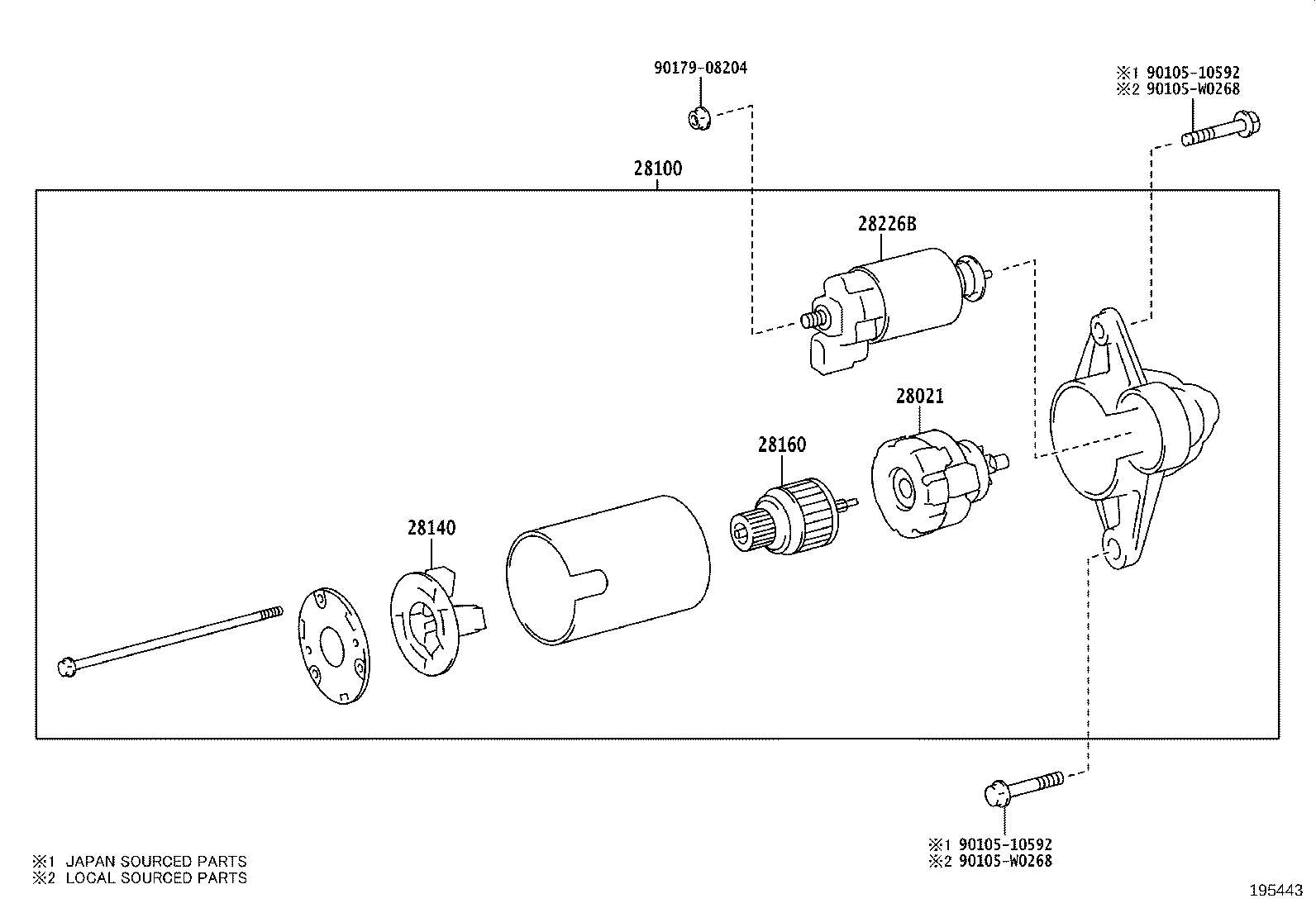

Click highlighted areas on diagram

12V 1.0KW,1.2KW

diagram 28021 28100 28140 28160 28226B 9010510592 9010510592 90105W0268 90105W0268 9017908204
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-47170

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
28100 - STARTER ASSY
28100-0T400

1ZRFE..ZRE210..RUS;1ZRFAE..ZRE210..LHD..CVT..D

12V 1.2KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21070

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZRFE..MZEA11,ZRE21#

 1
28160 - ARMATURE ASSY, STARTER
28160-21080

1ZRFE..ZRE210..RUS;1ZRFAE..ZRE210..LHD..CVT..D

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-37130

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
Common parts
90105-10592
90105-W0268
90179-08204
