ZRE210L-DEFNKX (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZR#,2ZRFE

Click highlighted areas on diagram

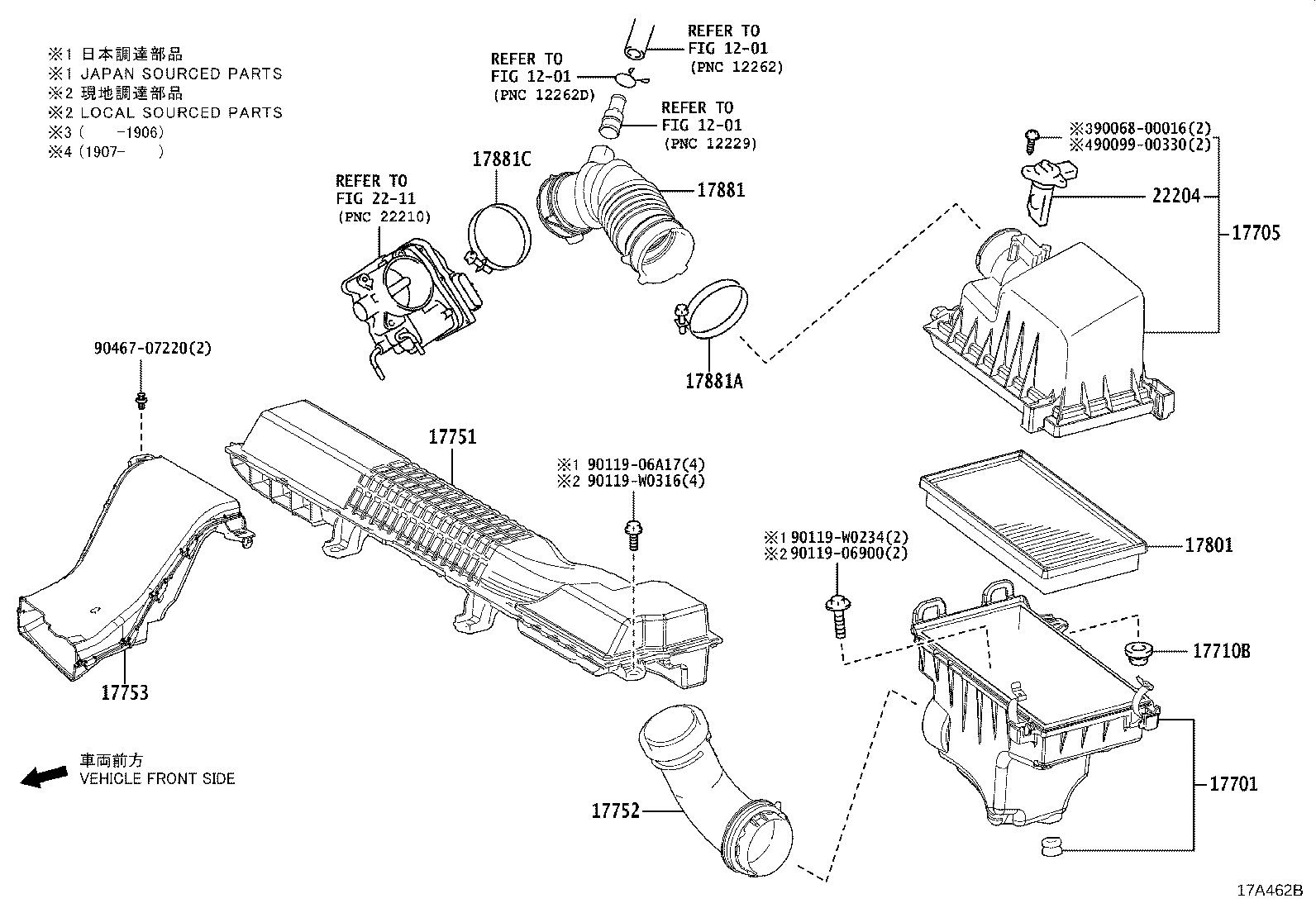

diagram 1201 1201 1201 17701 17705 17710B 17751 17752 17753 17801 17881 17881A 17881C 2211 22204 9006800016 9009900330 9011906900 9011906A17 90119W0234 90119W0316 9046707220
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T180

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T220

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17710B - GROMMET
90480-18006

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0T200

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0T070

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17753 - INLET, AIR CLEANER, NO.3
17753-0T080

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77050

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
17801-0T060

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0T520

1ZRFE..ZRE210

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
Common parts
90068-00016
90099-00330
90119-06900
90119-06A17
90119-W0234
90119-W0316
90467-07220
Linked diagrams
1201
2211
