ZRE210L-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE210..6F

Click highlighted areas on diagram

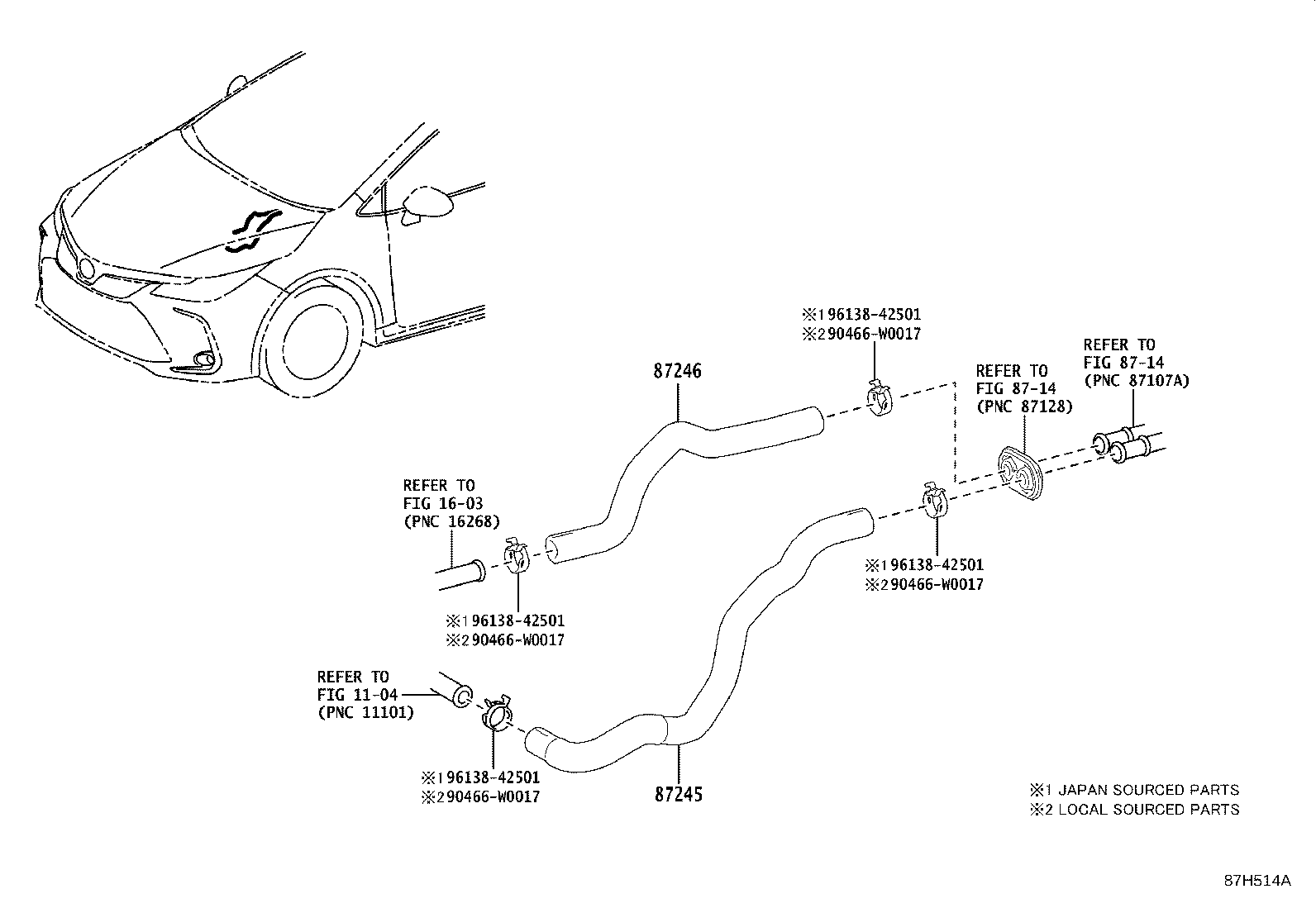

diagram 1104 1603 8714 8714 87245 87246 90466W0017 90466W0017 90466W0017 90466W0017 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02W20

ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02R70

ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
Common parts
90466-W0017
96138-42501
Linked diagrams
1104
1603
8714
