ZRE210L-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

Click highlighted areas on diagram

MOON ROOF

diagram 62401C 62401C 63306 63310 63310H 63323E 63339A 63339A 63353E 63353E 63367B 63368B 63391 63396B 8121
Part # Description Qty Price
62401C - FASTENER, HOOK
90530-20027

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
62401C - FASTENER, HOOK
90530-20027

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63310 - HEADLINING ASSY, ROOF
63310-02M70A0

MZEA11..D;ZRE210..LHD..D;ZRE210..N..GCC;ZRE211,ZWE213..N;ZRE210..RHD..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..6F..N..GEN

FROMAGE,TRIM0#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168A0

ZRE211,ZWE213;ZRE210..LHD..D;ZRE210..N..GCC;ZRE210..G..RUS;ZWE211..GCC,GEN;ZRE210..RHD..GEN;ZRE210..LHD..6F..N..GEN;MZEA11,ZWE211..(D,G)..EUR

FROMAGE,TRIM0#,2#

 3
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP),FROMAGE,TRIM0#,2#

 2
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP & SIDE),FROMAGE,TRIM0#,2#

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP),FROMAGE,TRIM0#,2#

 2
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP & SIDE),FROMAGE,TRIM0#,2#

 2
63353E - PAD, ROOF HEADLINING, CENTER
63353-02150

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63353E - PAD, ROOF HEADLINING, CENTER
63353-02150

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
Linked diagrams
8121

(1901- )MZEA11,ZRE21#..EUR,GCC,GEN

Click highlighted areas on diagram

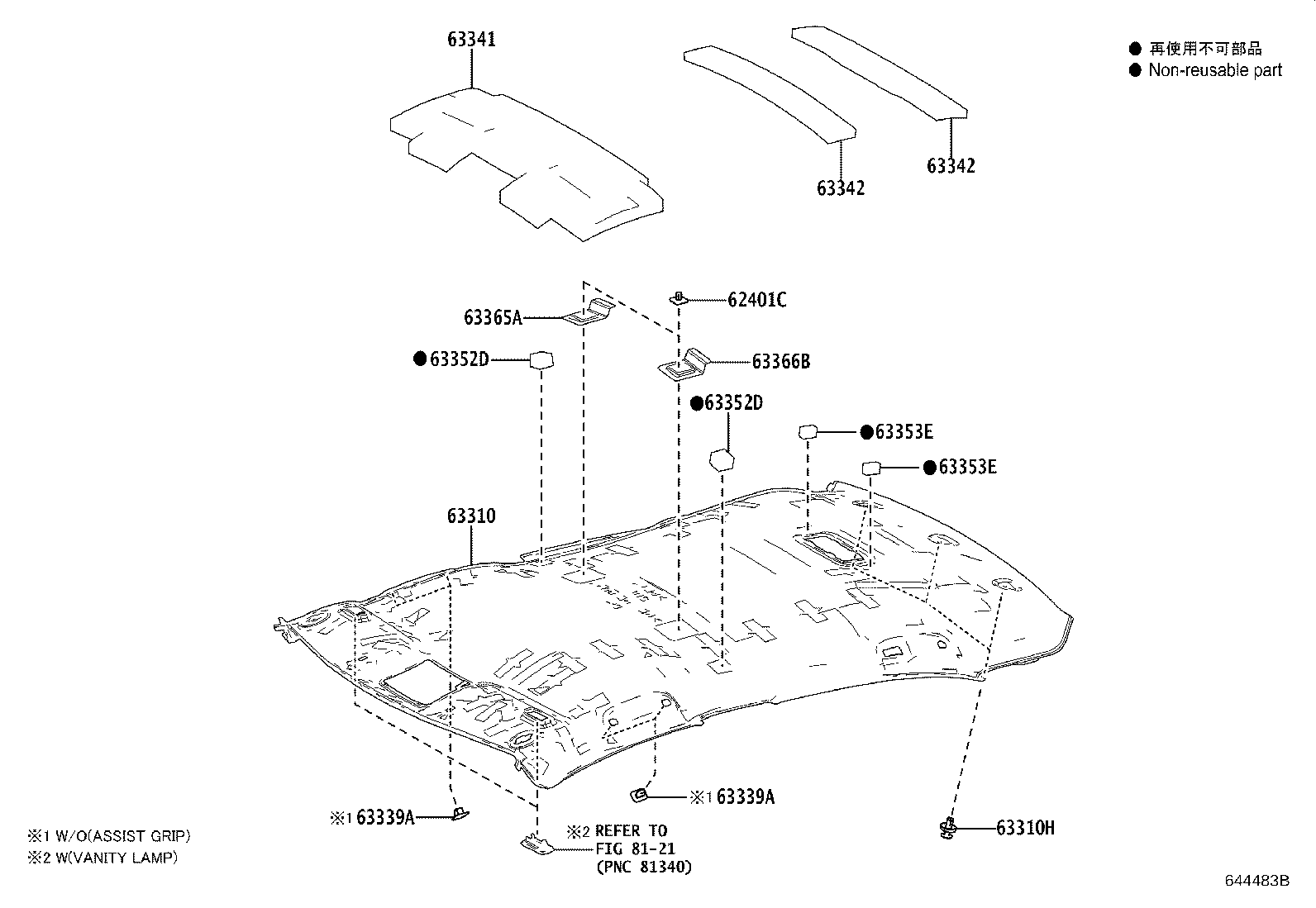

NORMAL ROOF

diagram 62401C 63310 63310H 63339A 63339A 63341 63342 63342 63352D 63352D 63353E 63353E 63365A 63366B 8121
Part # Description Qty Price
62401C - FASTENER, HOOK
90530-20027

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63310 - HEADLINING ASSY, ROOF
63310-02M70A0

MZEA11..D;ZRE210..LHD..D;ZRE210..N..GCC;ZRE211,ZWE213..N;ZRE210..RHD..GEN;ZWE211..N..(GCC,GEN);ZRE210..LHD..6F..N..GEN

FROMAGE,TRIM0#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168A0

ZRE211,ZWE213;ZRE210..LHD..D;ZRE210..N..GCC;ZRE210..G..RUS;ZWE211..GCC,GEN;ZRE210..RHD..GEN;ZRE210..LHD..6F..N..GEN;MZEA11,ZWE211..(D,G)..EUR

FROMAGE,TRIM0#,2#

 3
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP),FROMAGE,TRIM0#,2#

 2
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP & SIDE),FROMAGE,TRIM0#,2#

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP),FROMAGE,TRIM0#,2#

 2
63339-12010A3

ZRE210..LHD..6F..D..EUR

SRS AIR BAG-WITH(*DRP & SIDE),FROMAGE,TRIM0#,2#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-02590

ZRE210..RHD..GEN;MZEA11,ZRE211..D,N;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-02810

MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-02810

MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-02090

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-02090

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63353E - PAD, ROOF HEADLINING, CENTER
63353-02150

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63353E - PAD, ROOF HEADLINING, CENTER
63353-02150

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
63365A - PLATE, ROOF HEADLINING SET
63365-02010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
63366B - PLATE, ROOF HEADLINING SET, LH
63366-02010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
Linked diagrams
8121
