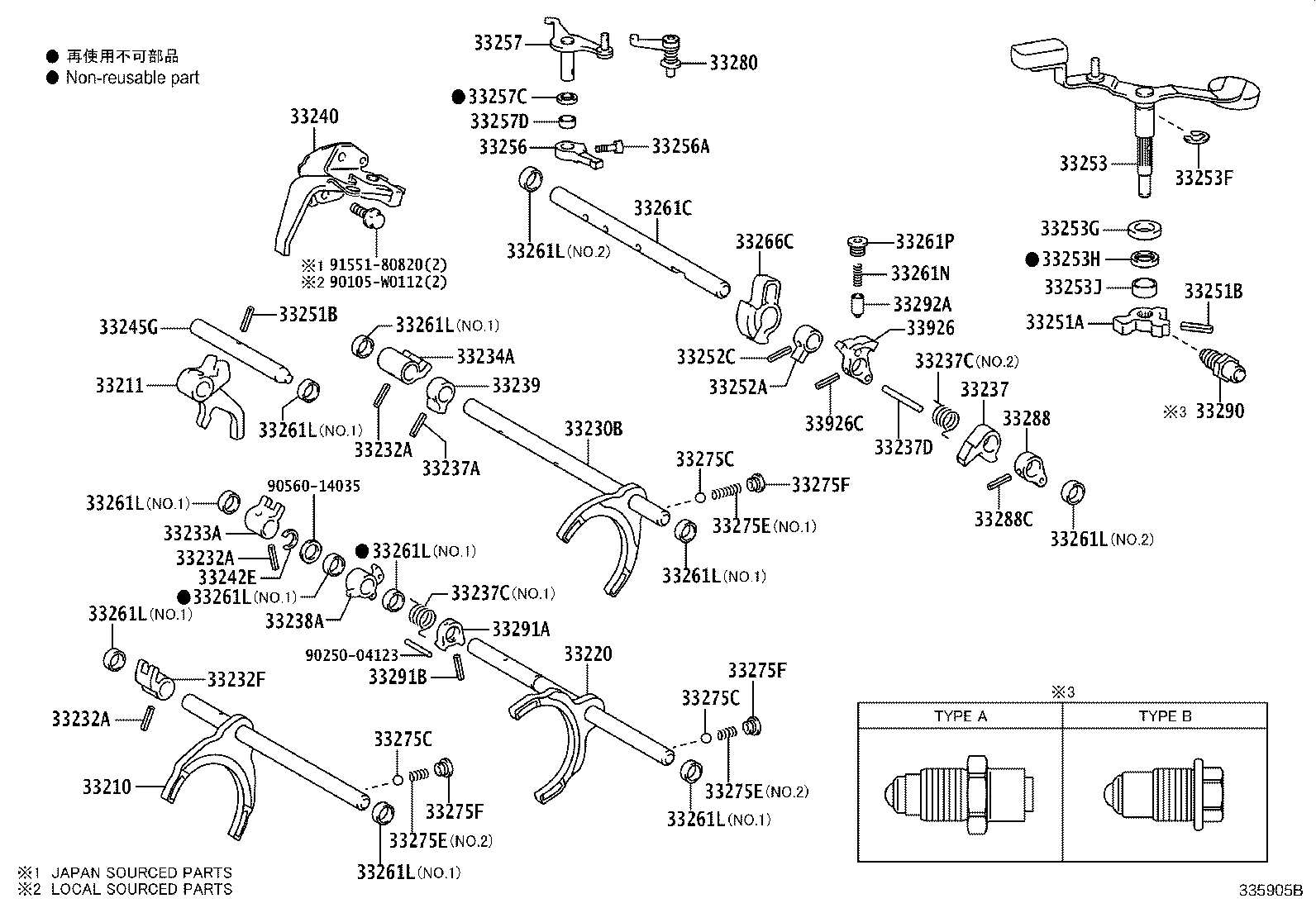

ZRE210L-DEFDPW (2019)
Toyota Corolla (Tup)
(1901- )6F
EC60,EC6D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33210 - FORK ASSY, GEAR SHIFT, NO.1 | ||||
| 33210-02010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-05020 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33220 - FORK ASSY, GEAR SHIFT, NO.2 | ||||
| 33220-02010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33230B - FORK ASSY, GEAR SHIFT, NO.3 | ||||
| 33230-02010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-02020 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-02010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-02010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33237 - HEAD, RELEASE | ||||
| 33237-0D010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33237A - PIN, SLOTTED SPRING (FOR RELEASE HEAD) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33237C - SPRING, TORSION(FOR RELEASE HEAD) | ||||
| 90508-17006 |
ZRE210..6F NO.1:REFER ILLUST. |
1 | ||
| 90508-17007 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 90508-27001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33237C - SPRING, TORSION(FOR RELEASE HEAD) | ||||
| 90508-17006 |
ZRE210..6F NO.1:REFER ILLUST. |
1 | ||
| 90508-17007 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 90508-27001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33237D - PIN, STRAIGHT(FOR RELEASE HEAD) | ||||
| 90250-06042 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33238A - HEAD, REVERSE PRE-BALK, NO.2 | ||||
| 33238-0D010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33239 - HEAD, REVERSE PRE-BALK, NO.3 | ||||
| 33239-0D010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-0D021 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-05010 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-12120 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (J) |
1 | ||
| 33251-0D011 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (L) |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) L=22 |
1 | ||
| 90254-05011 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) L=28.0 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) L=22 |
1 | ||
| 90254-05011 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) L=28.0 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-0D020 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-02010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33253F - RING, E(FOR SHIFT OUTER LEVER) | ||||
| 90523-15003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33253G - SPACER(FOR SHIFT OUTER LEVER) | ||||
| 90560-18017 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33253H - SEAL, OIL(FOR SHIFT OUTER LEVER) | ||||
| 90310-18003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33253J - BUSH(FOR SHIFT OUTER LEVER) | ||||
| 90384-W0012 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-0D030 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33256A - BOLT, SET (FOR SELECT INNER LEVER) | ||||
| 90110-08041 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-02020 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33257C - SEAL, OIL(FOR OUTER SELECT LEVER) | ||||
| 90310-15005 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33257D - BUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER) | ||||
| 90384-W0003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-05010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-W0009 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
9 | ||
| 90384-W0010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33261N - SPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90501-11108 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH | ||||
| 90341-16013 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20062 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 90501-13089 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 90501-13089 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 90501-13089 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
2 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20050 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33288 - BLOCK, SELECT STOPPER | ||||
| 33288-0D010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33288C - PIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-02020 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) TYPE B:REFER ILLUST. |
1 | ||
| 33290-02011 |
ZRE210..6F TYPE A:REFER ILLUST. |
1 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33886-0D010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33292A - PIN, LOCK BALL | ||||
| 33292-05020 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33926 - LEVER, SHIFT INNER, FRONT | ||||
| 33926-0D011 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33926C - PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90250-04123 | ||||
| 90560-14035 | ||||
| 91551-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
