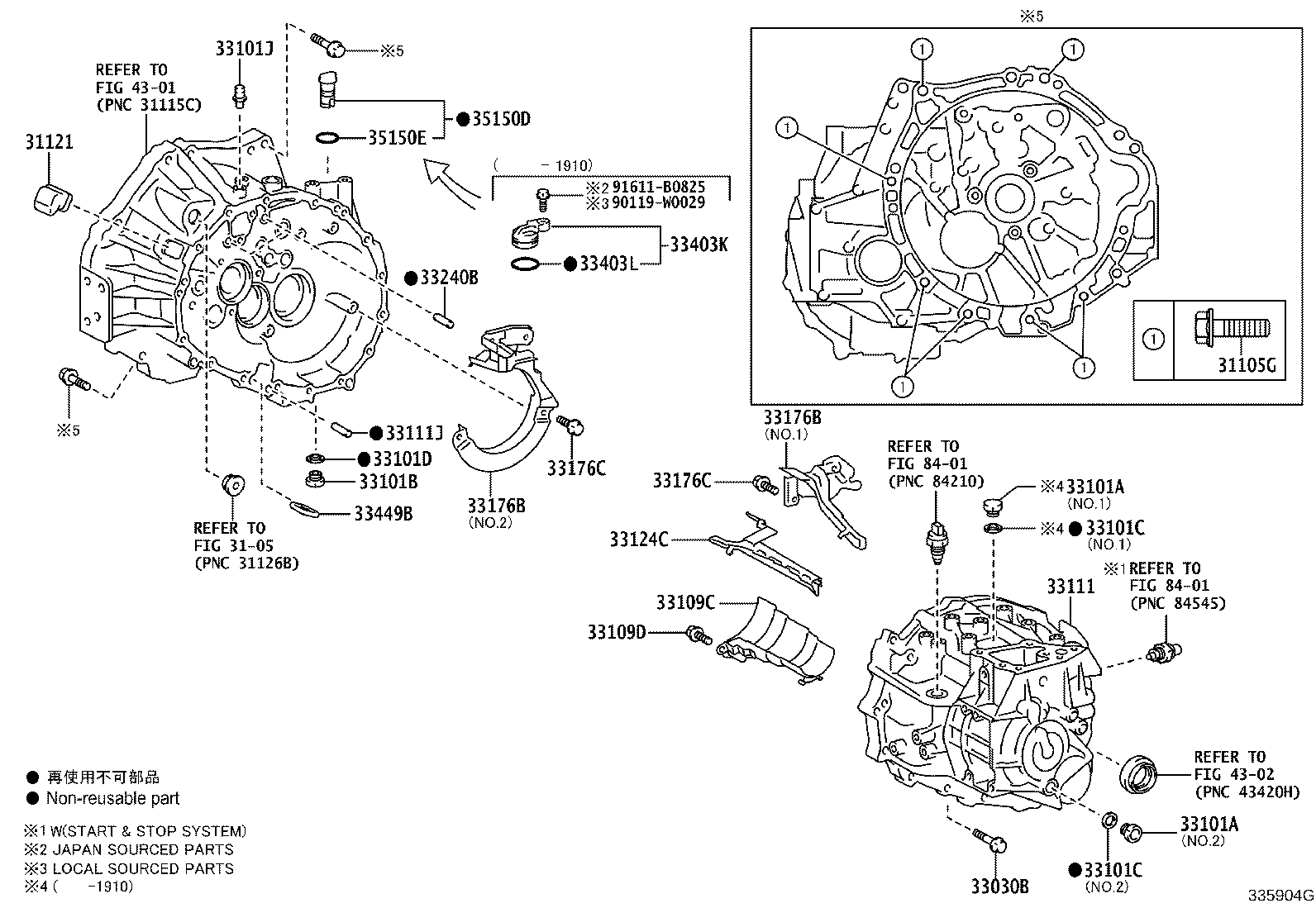

ZRE210L-DEFDPW (2019)
Toyota Corolla (Tup)
(1901- )ZRE210..6F
EC60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-W0155 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) *10-1.25PX45-30 |
7 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-05010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 91551-10840 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) *8-1.25PX40-22,(J) |
16 | ||
| 90105-W0209 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) *8-1.25PX40-22,(L) |
16 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-14032 |
ZRE210..6F NO.1:REFER ILLUST. |
1 | ||
| 90341-18033 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-14032 |
ZRE210..6F NO.1:REFER ILLUST. |
1 | ||
| 90341-18033 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18023 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-14003 |
ZRE210..6F NO.1:REFER ILLUST. |
1 | ||
| 12157-10010 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-14003 |
ZRE210..6F NO.1:REFER ILLUST. |
1 | ||
| 12157-10010 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 12157-10010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03133 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0D011 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR) | ||||
| 91551-80816 |
ZRE210..6F (J) |
4 | ||
| 90105-W0035 |
ZRE210..6F (L) |
4 | ||
| 90105-W0035 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (L) |
3 | ||
| 91551-80816 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (J) |
3 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-05041 |
ZRE210..6F..EUR REFER33-07:PNC 33290 |
1 | ||
| 33111-02052 |
ZRE210..LHD..6F..D..EUR CRUISE CONTROL-WITH,REFER33-07:PNC 33290 |
1 | ||
| 33111-02050 |
ZRE210..LHD..6F..D..EUR CRUISE CONTROL-WITH,REFER33-07:PNC 33290 |
1 | ||
| 33111-02050 |
ZRE210..LHD..6F..D..EUR CRUISE CONTROL-WITHOUT,REFER33-07:PNC 33290 |
1 | ||
| 33111-05043 |
ZRE210..6F..EUR REFER33-07:PNC 33290 |
1 | ||
| 33111-02052 |
ZRE210..LHD..6F..D..EUR CRUISE CONTROL-WITHOUT,REFER33-07:PNC 33290 |
1 | ||
| 33111-02053 |
ZRE210..LHD..6F..D..EUR CRUISE CONTROL-WITH,REFER33-07:PNC 33290 |
1 | ||
| 33111-05044 |
ZRE210..LHD..6F..(D,N)..EUR REFER33-07:PNC 33290 |
1 | ||
| 33111-02053 |
ZRE210..LHD..6F..D..EUR CRUISE CONTROL-WITHOUT,REFER33-07:PNC 33290 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) L=23,OD=8 |
3 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-0D050 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-0D020 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 33176-0D030 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-0D020 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.1:REFER ILLUST. |
1 | ||
| 33176-0D030 |
ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) NO.2:REFER ILLUST. |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (L) |
2 | ||
| 91551-80816 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (J) |
2 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (L) |
2 | ||
| 91551-80816 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) (J) |
2 | ||
| 33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90250-08054 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
2 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
ZRE210..6F |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
ZRE210..6F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 35150D - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| 35150E - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N) |
1 | ||
| Common parts | ||||
| 90119-W0029 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||
