ZRE210L-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )LHD..6F

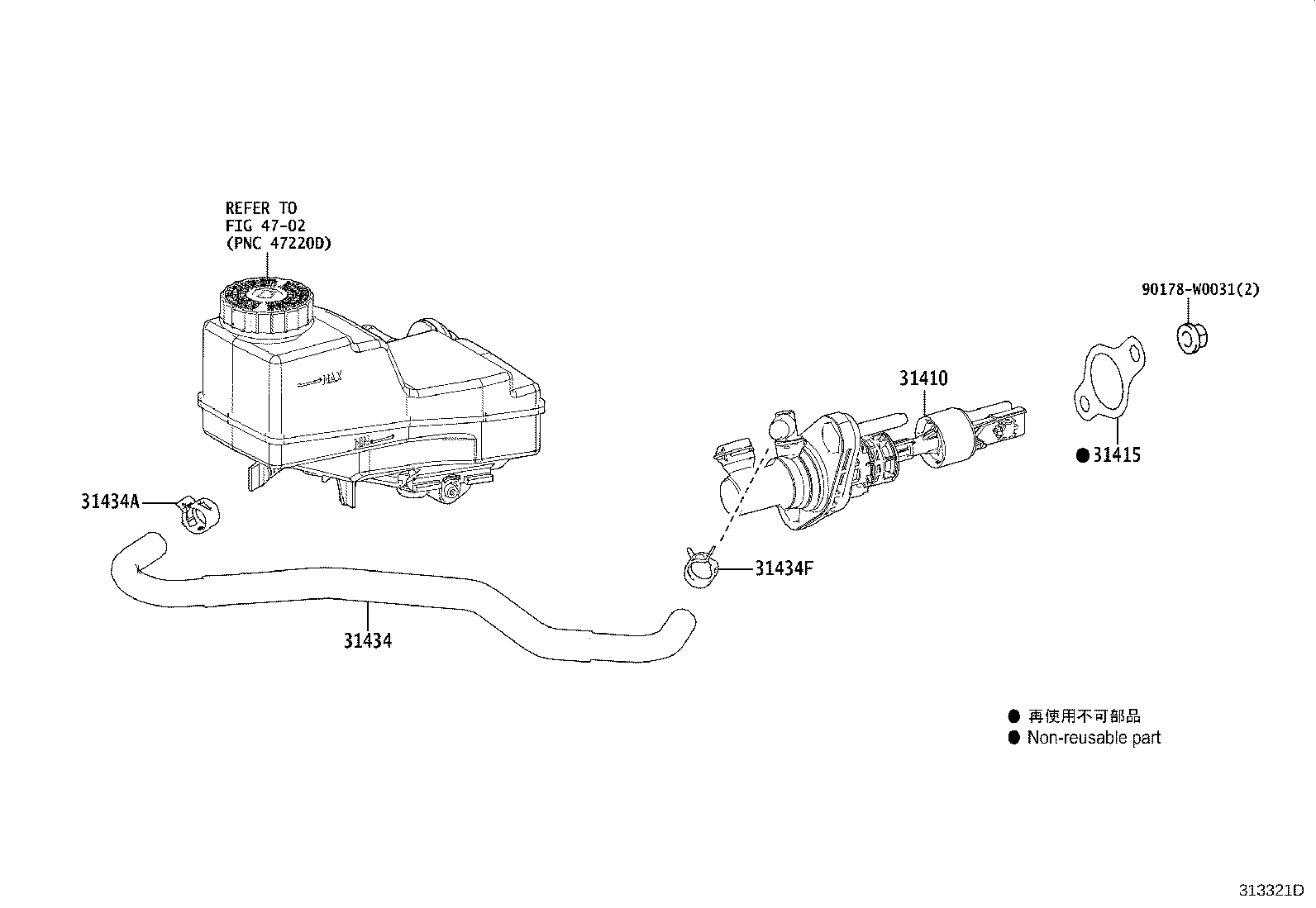

Click highlighted areas on diagram

diagram 31410 31415 31434 31434A 31434F 4702 90178W0031
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-F4011

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-60020

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-F4010

MZEA11..LHD..6F;ZRE210..LHD..6F..(D,N)

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96137-41501

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
31434F - CLIP(FOR CLUTCH RESERVOIR HOSE NO.1)
96138-41501

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
Common parts
90178-W0031
Linked diagrams
4702
