Toyota Corolla (tup) ZRE210 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
EU
COROLLA (TUP)
ZRE210L-DEFDPW (2019)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

ZRE210L-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999

Engine 1ZRFAE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

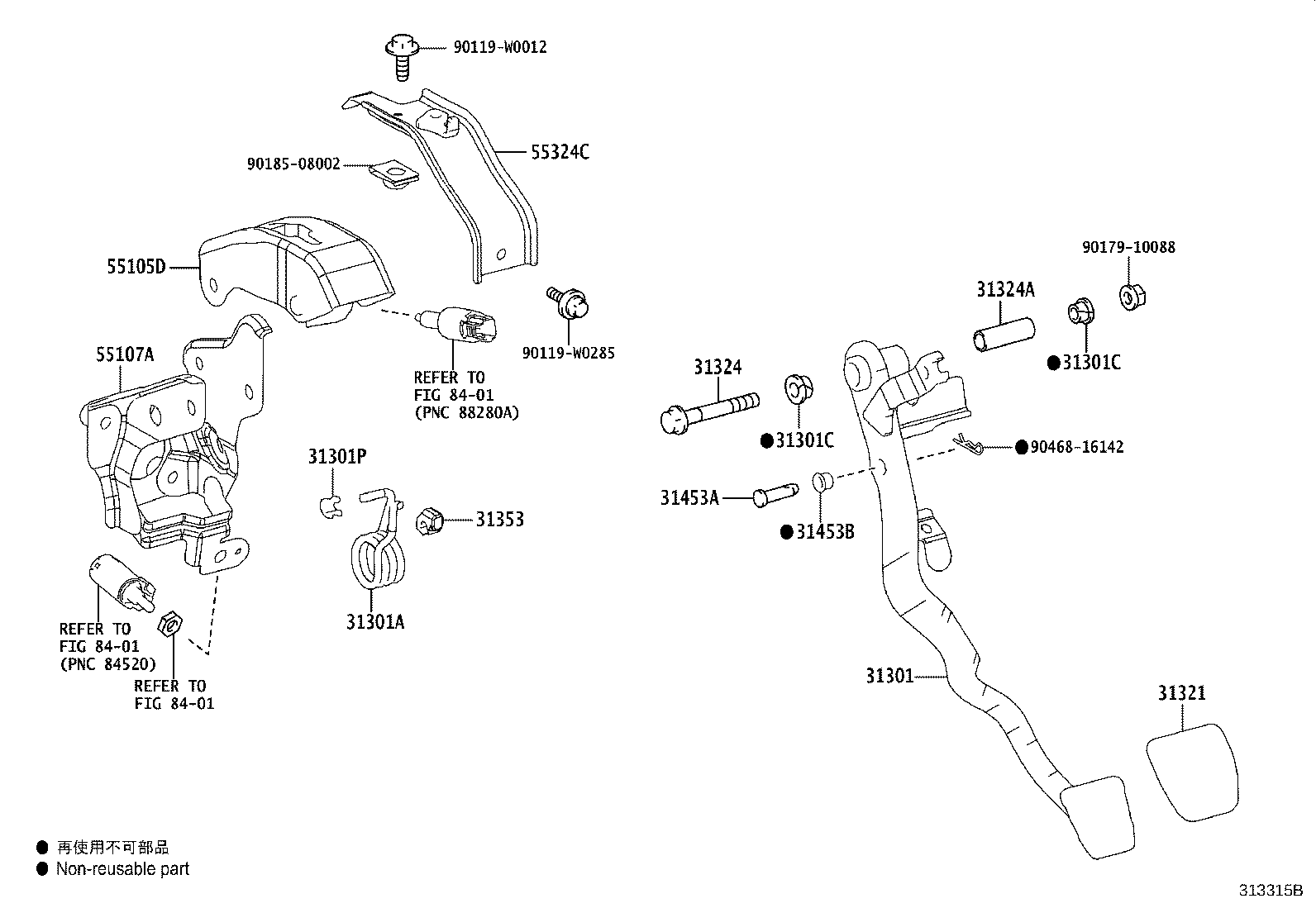

ILLUST NO. 1 OF 2(1901- )LHD..6F

Click highlighted areas on diagram

W(ELECTRIC PARKING BRAKE)

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02610	MZEA11,ZRE210..LHD..6F..D;ZRE210..LHD..6F..N..(GCC,GEN,RUS)	01/2019 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-02010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	04/2021 - 12/2999	1
90949-03068	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 03/2021	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-42010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90105-10524	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-W0001	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
55105D - BRACKET SUB-ASSY, CLUTCH PEDAL
55105-02100	MZEA11,ZRE210..LHD..6F..D;ZRE210..LHD..6F..N..(GCC,GEN,RUS)	01/2019 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02520	MZEA11,ZRE210..LHD..6F..D;ZRE210..LHD..6F..N..(GCC,GEN,RUS)	01/2019 - 12/2999	1
55324C - BRACKET, INSTRUMENT PANEL, NO.4
55324-02600	MZEA11..LHD..6F;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
Common parts
90119-W0012
90119-W0285
90179-10088
90185-08002
90468-16142

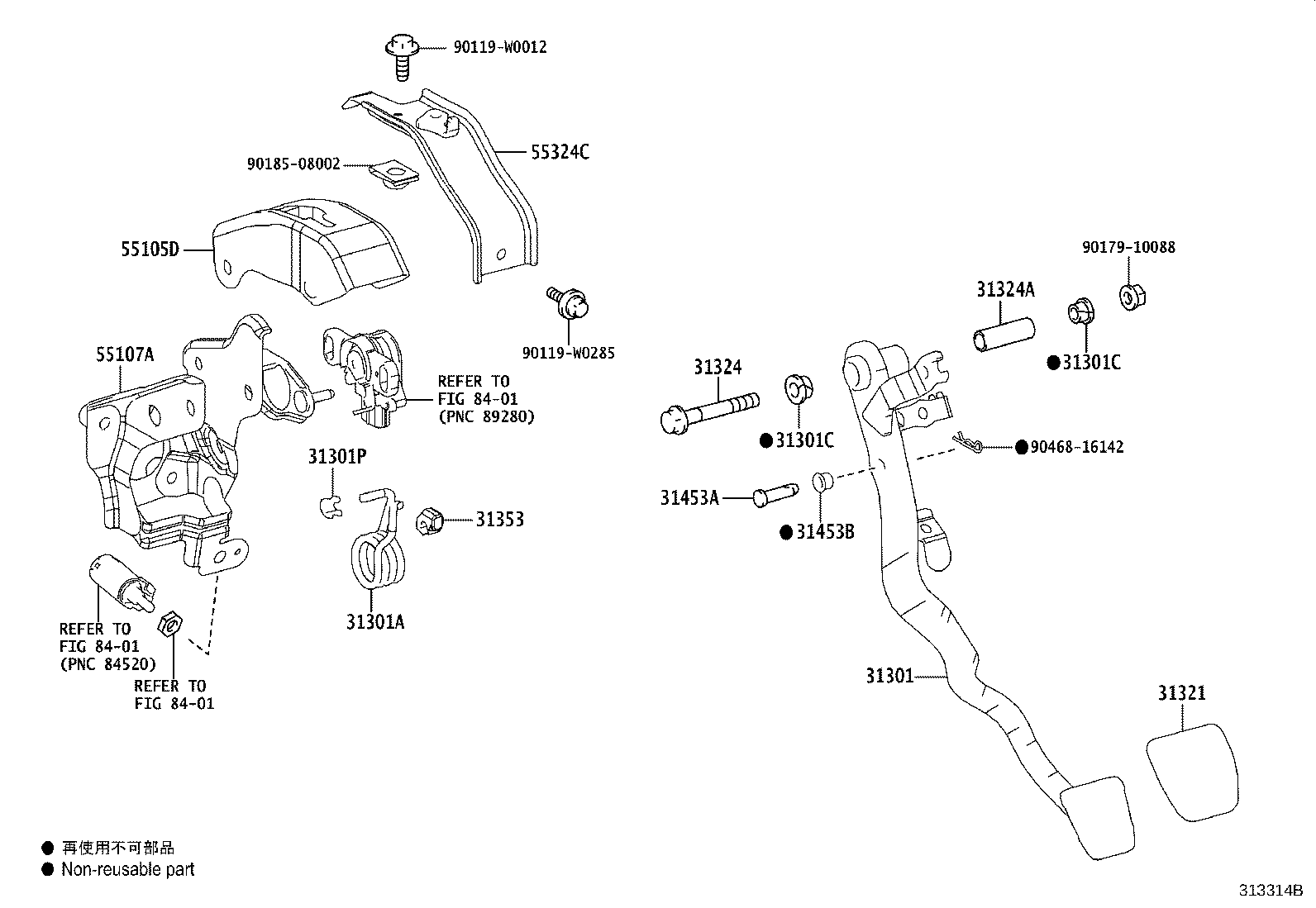

ILLUST NO. 1 OF 2(1901- )LHD..6F

Click highlighted areas on diagram

W/O(ELECTRIC PARKING BRAKE)

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02610	MZEA11,ZRE210..LHD..6F..D;ZRE210..LHD..6F..N..(GCC,GEN,RUS)	01/2019 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-02010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	04/2021 - 12/2999	1
90949-03068	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 03/2021	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-42010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90105-10524	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-W0001	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
55105D - BRACKET SUB-ASSY, CLUTCH PEDAL
55105-02100	MZEA11,ZRE210..LHD..6F..D;ZRE210..LHD..6F..N..(GCC,GEN,RUS)	01/2019 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02520	MZEA11,ZRE210..LHD..6F..D;ZRE210..LHD..6F..N..(GCC,GEN,RUS)	01/2019 - 12/2999	1
55324C - BRACKET, INSTRUMENT PANEL, NO.4
55324-02600	MZEA11..LHD..6F;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
Common parts
90119-W0012
90119-W0285
90179-10088
90185-08002
90468-16142
Linked diagrams
8401

ILLUST NO. 2 OF 2(1901- )LHD..6F

Click highlighted areas on diagram

Part #	Description	Period	Qty

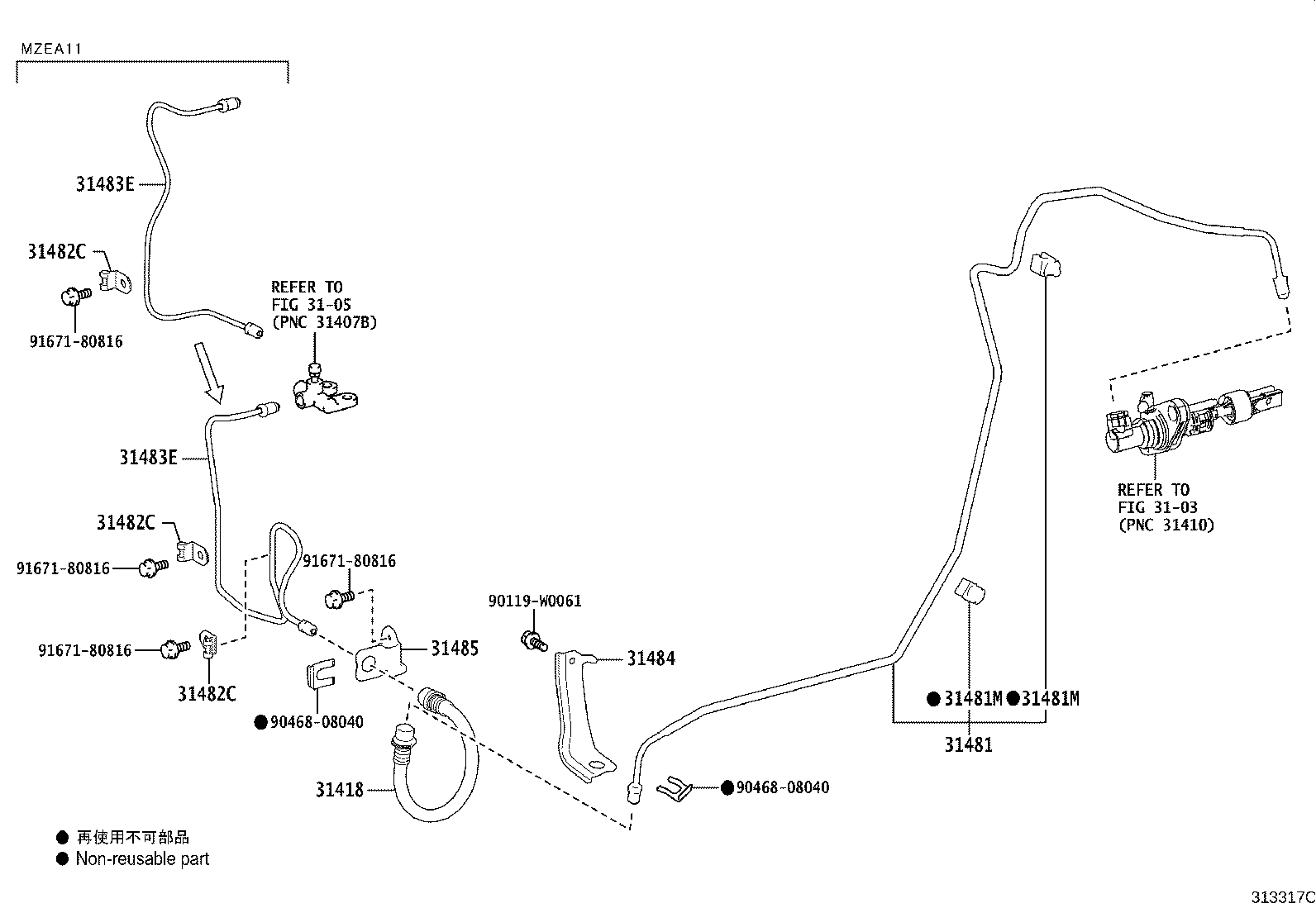

31418 - HOSE, CLUTCH
90947-W2073	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-F4020	MZEA11..LHD..6F;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01E01	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01E01	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31482C - CLAMP(FOR CLUTCH TUBE)
90461-10753	ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31482C - CLAMP(FOR CLUTCH TUBE)
90461-10753	ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31482C - CLAMP(FOR CLUTCH TUBE)
90461-10753	ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	2
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-02320	ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-02320	ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-F4010	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-05030	MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
Common parts
90119-W0061
90468-08040
91671-80816
Linked diagrams
3103
3105
