ZRE210L-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZRFAE,2ZRFE

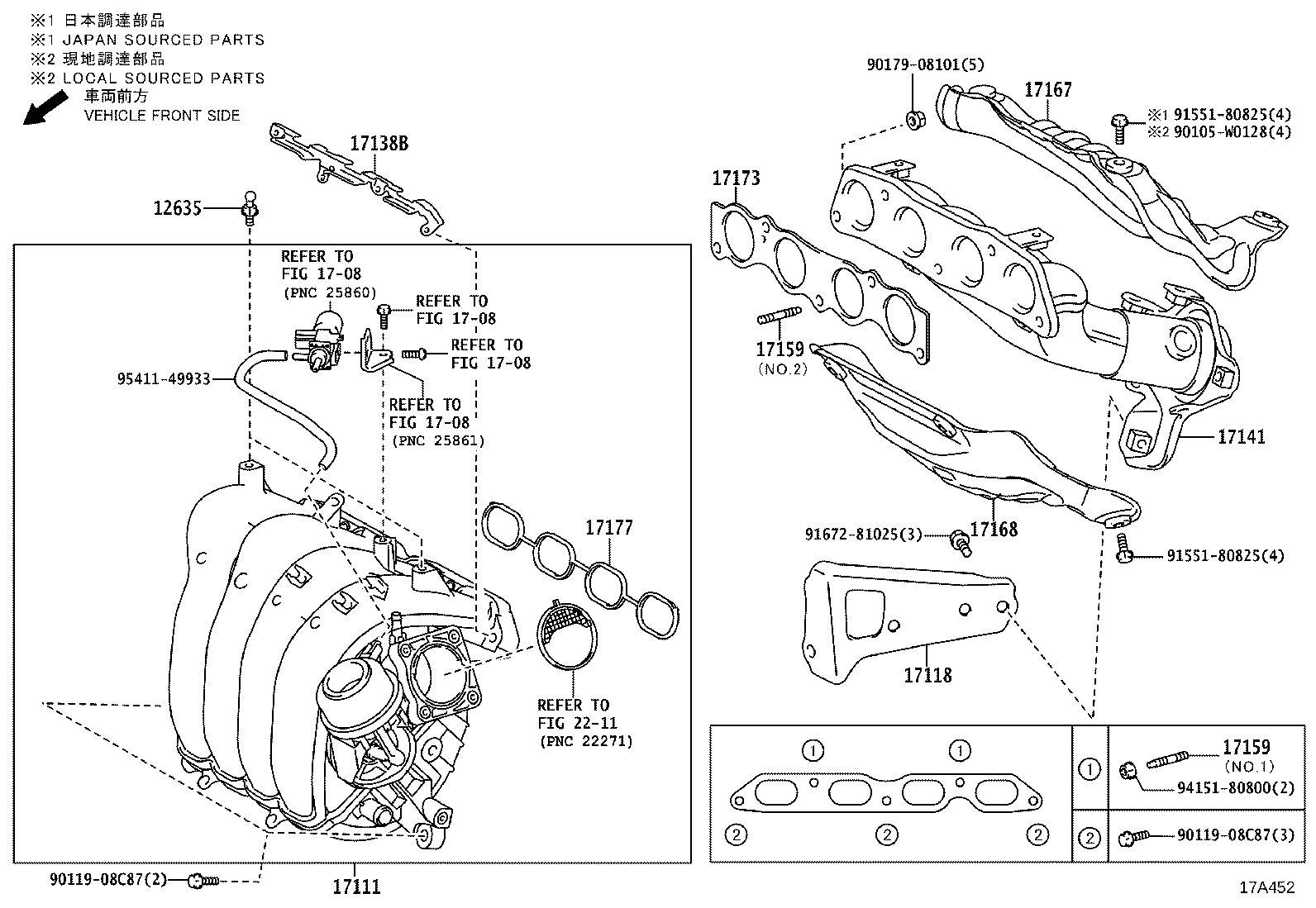

Click highlighted areas on diagram

diagram 12635 1708 1708 1708 1708 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 90105W0128 9011908C87 9011908C87 9017908101 9155180825 9155180825 9167281025 9415180800 9541149933
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 2
17111 - MANIFOLD, INTAKE
17120-0T031

1ZRFAE..ZRE210..LHD..(D,N)

 1
17118 - STAY, MANIFOLD
17118-37010

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
17118-0T020

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
17138B - STAY, INTAKE MANIFOLD
17138-37011

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
17138-0T011

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
17141 - MANIFOLD, EXHAUST
17141-37250

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.2

 5
90126-08026

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.2

 5
90126-08026

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0T120

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
17167-37110

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37130

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0T020

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
17173-37010

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
17177-0T030

1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
Common parts
90105-W0128
90119-08C87
90179-08101
91551-80825
91672-81025
94151-80800
95411-49933
Linked diagrams
1708
2211
