ZRE210L-DEFDPW (2019)
Toyota Corolla (Tup)
ILLUST NO. 1 OF 2(1901- )1ZR#,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0T320 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0017 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0017 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T250 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 96138-42101 |
1ZR#,2ZR#..ZRE21#,ZWE211 |
1 | ||
| 16361 - FAN | ||||
| 16361-0T170 |
1ZRFAE..ZRE210..LHD..(D,N);1ZRFE,2ZRFE..ZRE21#..GEN,RUS |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0T210 |
1ZRFAE..ZRE210..LHD..(D,N);1ZRFE,2ZRFE..ZRE21#..GEN,RUS |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0T350 |
1ZRFAE..ZRE210..LHD..(D,N);1ZRFE,2ZRFE..ZRE21#..GCC,GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-0T021 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T050 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T350 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T290 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-W0016 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-W0016 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T190 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 96136-43901 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T180 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-36030 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-0T030 |
1ZRFAE..ZRE210..LHD..6F..D LIGHT GRADE&AIR CONDITIONER-COOLER LESS |
1 | ||
| 16594-0T030 |
1ZRFE..ZRE210..(G,N)..RUS;1ZRFAE..ZRE210..LHD..(D,N);1ZRFE,2ZRFE..ZRE21#..GCC,GEN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T160 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06A11 | ||||
| 90119-W0311 | ||||
| 90466-W0016 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||

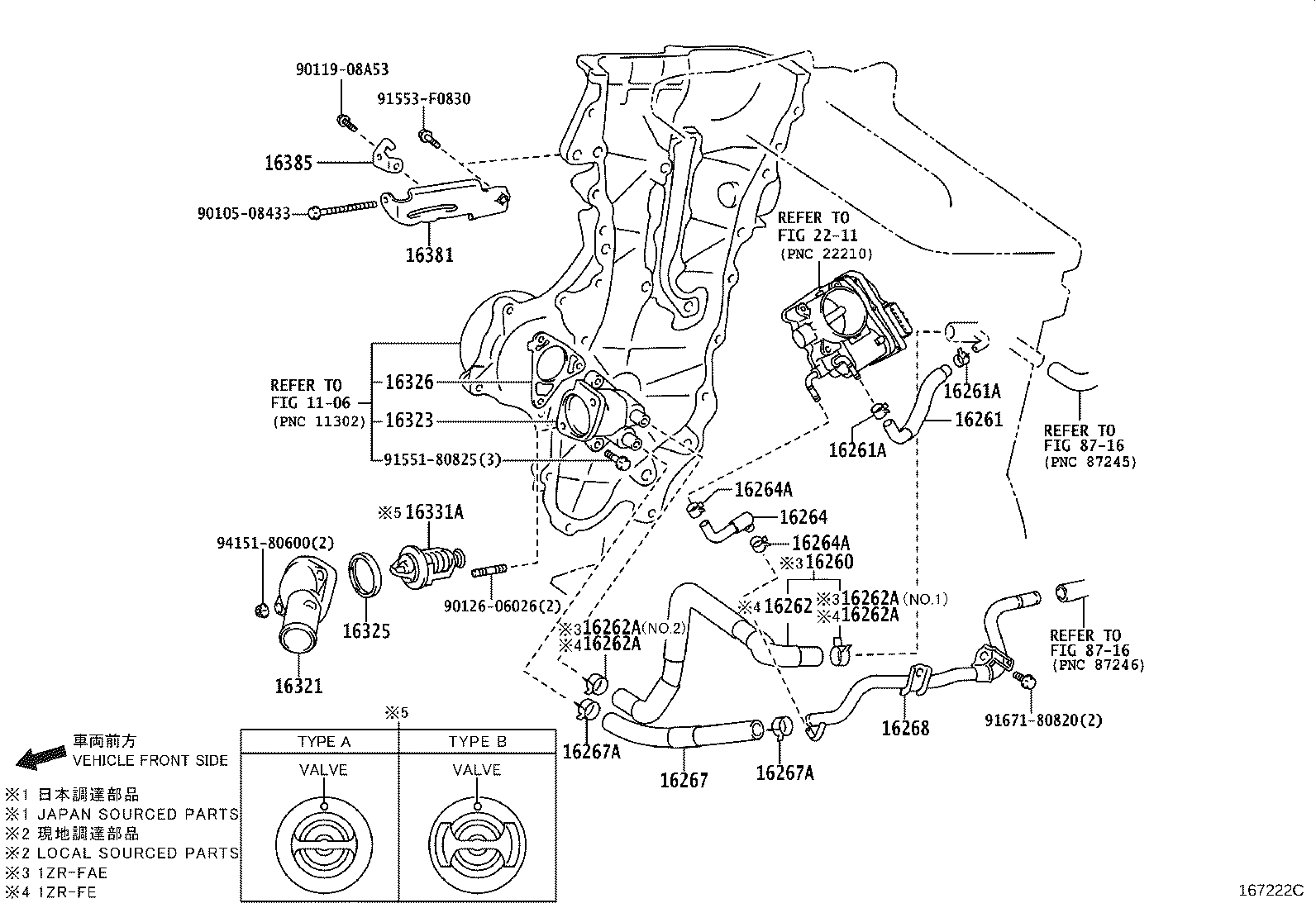

ILLUST NO. 2 OF 2(1901- )1ZR#..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-37180 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37200 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-W0007 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.2 |
1 | ||
| 96138-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) NO.1 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-W0007 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.2 |
1 | ||
| 96138-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) NO.1 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-W0007 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.2 |
1 | ||
| 96138-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) NO.1 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-W0007 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (L),NO.2 |
1 | ||
| 96138-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) NO.1 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) (J),NO.2 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37210 |
2ZRFE..ZRE211;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFAE..ZRE210..LHD..6F..(D,N) NO.2 |
2 | ||
| 90466-W0007 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFAE..ZRE210..LHD..6F..(D,N) NO.2 |
2 | ||
| 90466-W0007 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0T140 |
1ZRFAE..ZRE210..LHD..6F..(D,N) (L) |
1 | ||
| 16268-37070 |
1ZRFAE..ZRE210..LHD..6F..(D,N) (J) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0T010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 16321-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0T030 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L) |
1 | ||
| 16323-37021 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03145 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) *WAX 82-95,TYPE B:REFER ILLUST. |
1 | ||
| 90916-03144 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) *WAX 82-95,TYPE A:REF ILL,KUZEH |
1 | ||
| 90916-A3003 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) *WAX 82-95,TYPE A:REFER ILLUST. |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37030 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 8716 | ||||
