ZRE210L-DEFDKX (2019)
Toyota Corolla (Tup)
(1901- )
TRW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02470 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) MARK NBK D6360 |
1 | ||
| 04466-02410 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) MARK NBK D6360 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02440 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02160 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE | ||||
| 04952-02221 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 90069-39001 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 90069-39000 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 47715-05060 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 47715-05060 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-09110 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-09110 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02370 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02360 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02200 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02200 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||

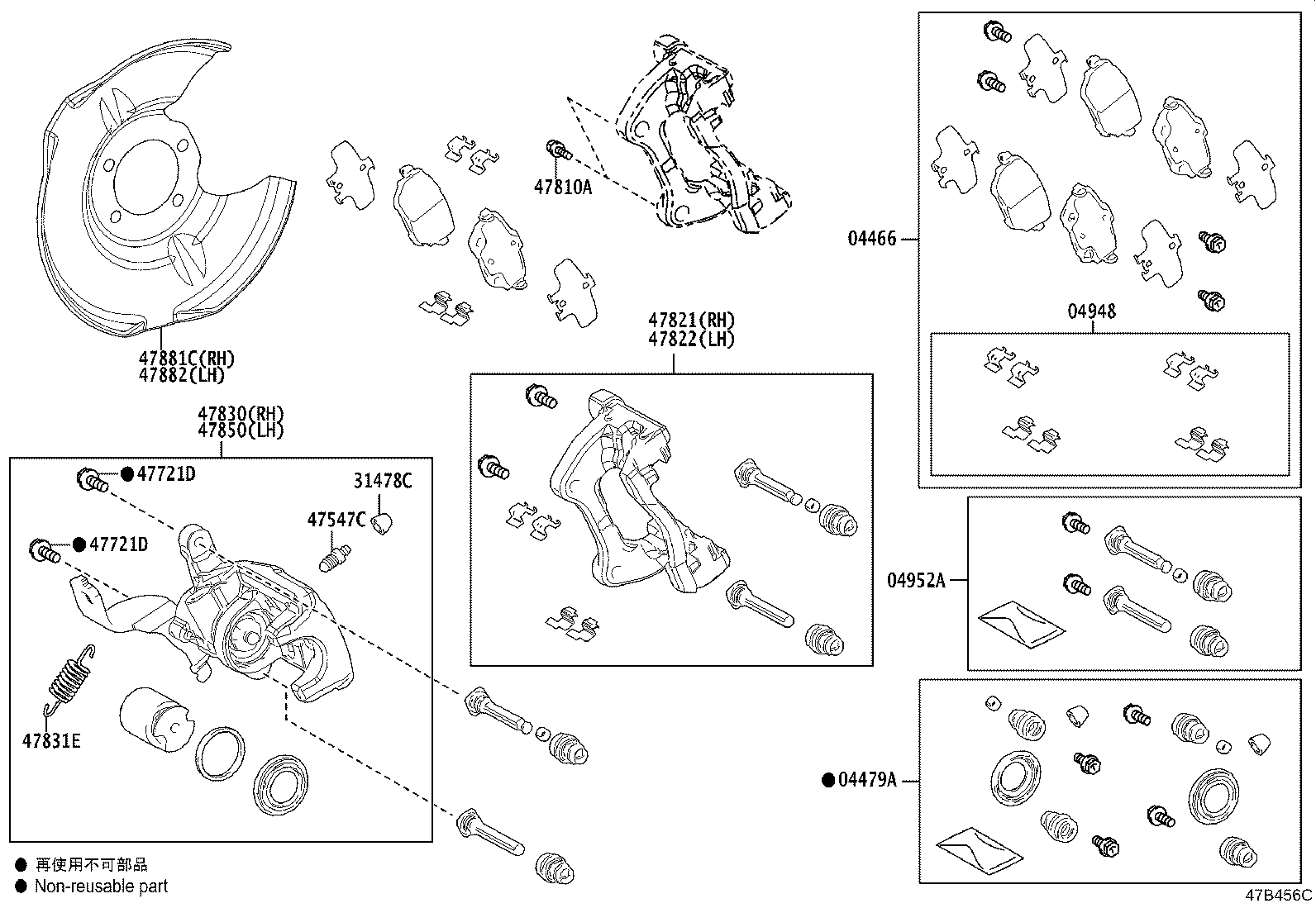

| Linked diagrams | ||||
| 4601 | ||||
(1901- )
BOSCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02470 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) MARK NBK D6360 |
1 | ||
| 04466-02410 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) MARK NBK D6360 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02440 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02160 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE | ||||
| 04952-02221 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 90069-39001 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 90069-39000 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 47715-05060 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 47715-05060 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-09110 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-09110 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02370 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47831E - SPRING(FOR REAR DISC BRAKE) | ||||
| 90069-51023 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02360 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02200 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02200 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
(1901- )ZRE21#
ADVICS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02470 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) MARK NBK D6360 |
1 | ||
| 04466-02410 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) MARK NBK D6360 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02440 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02160 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 90069-39001 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 90069-39000 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 47715-05060 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 47715-05060 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-09110 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-09110 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02370 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02360 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02200 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02200 |
ZRE210..RHD..D..GEN;MZEA11,ZRE210..LHD..D;ZRE21#..(G,N)..(GCC,GEN,RUS) |
1 | ||
