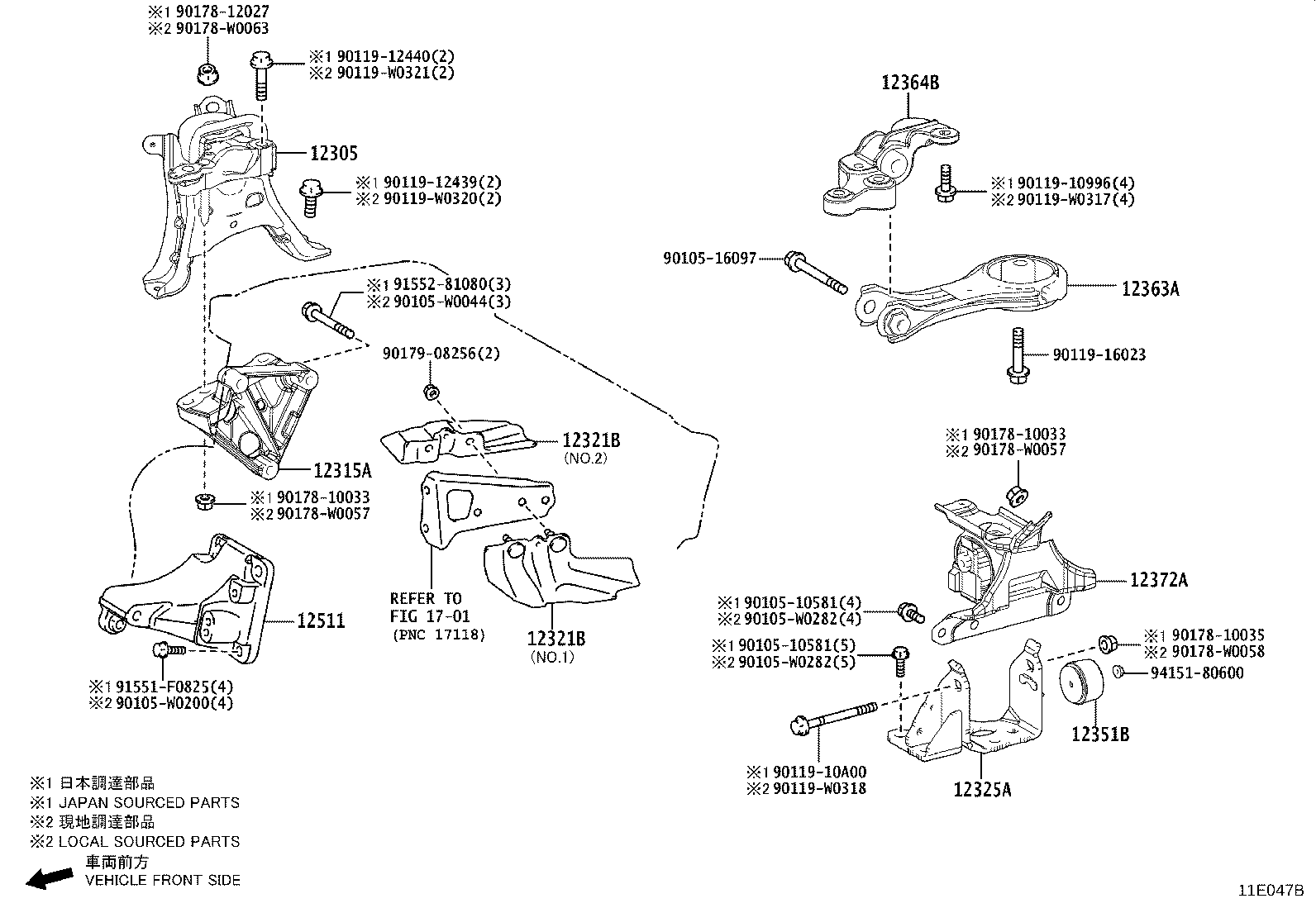

Toyota Corolla (tup) ZRE210 MOUNTING

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T371	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)	01/2019 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37060	1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)	01/2019 - 12/2999	1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) NO.2	01/2019 - 12/2999	1
43409-12060	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) NO.1	01/2019 - 12/2999	1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) NO.2	01/2019 - 12/2999	1
43409-12060	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) NO.1	01/2019 - 12/2999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y210	1ZRFE..ZRE210..6F;1ZRFAE..ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
12351B - DAMPER, ENGINE MOUNTING
12351-0T070	1ZRFE..ZRE210..6F;1ZRFAE..ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
12363A - ROD, ENGINE MOVING CONTROL
12363-0T070	1ZRFE..ZRE210..6F;1ZRFAE..ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0T080	1ZRFE..ZRE210..6F;1ZRFAE..ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T610	1ZRFE..ZRE210..6F;1ZRFAE..ZRE210..LHD..6F..(D,N)	01/2019 - 12/2999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-0T020	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (L)	01/2019 - 12/2999	1
12511-37010	1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N) (J)	01/2019 - 12/2999	1
Common parts
90105-10581
90105-16097
90105-W0044
90105-W0200
90105-W0282
90119-10996
90119-10A00
90119-12439
90119-12440
90119-16023
90119-W0317
90119-W0318
90119-W0320
90119-W0321
90178-10033
90178-10035
90178-12027
90178-W0057
90178-W0058
90178-W0063
90179-08256
91551-F0825
91552-81080
94151-80600
Linked diagrams
1701

ZRE210L-DEFDKX (2019)

(1901- )1ZR#..6F
