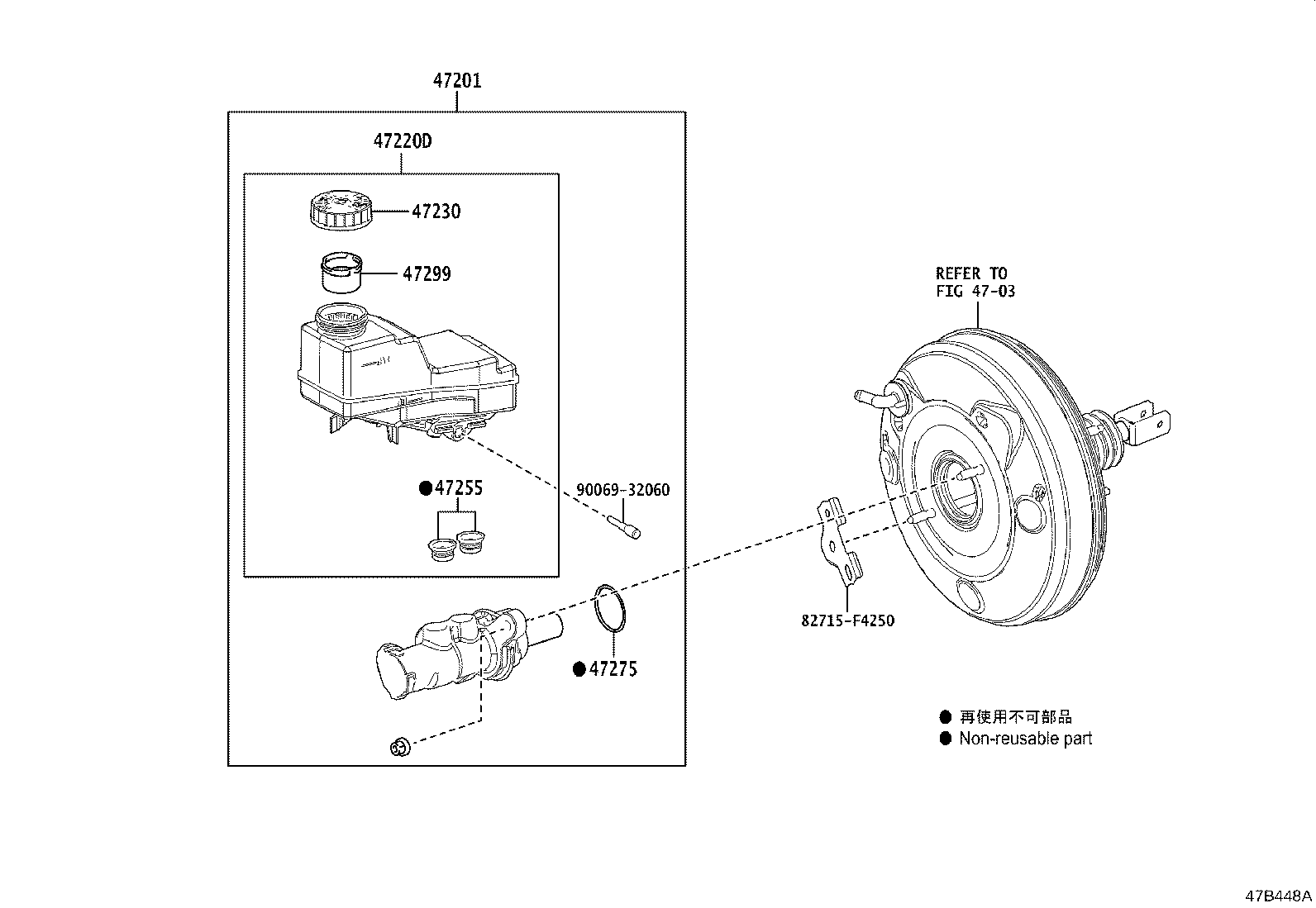

ZRE210L-DEFDK (2019)
Toyota Corolla (Tup)
(1901- )MZEA11,ZRE21#..LHD
BOSCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-F9020 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201-F9020 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201-12C40 |
ZRE210..6F..(GCC,GEN) BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201-F9020 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 47201-12C40 |
ZRE210..LHD..6F..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12330 |
ZRE210..6F..(GCC,GEN) BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-F9020 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-F9020 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-12330 |
ZRE210..LHD..6F..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-F9020 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47230-F4010 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47230-F4010 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47230-F4010 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 47230-47090 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09040 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 90029-48001 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
2 | ||
| 47255-09040 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 90029-48001 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
2 | ||
| 47255-09040 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-09010 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47275-09010 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 47275-09010 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-02160 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 47299-20060 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299-02160 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299-20060 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299-02160 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| Common parts | ||||
| 82715-F4250 | ||||
| 90069-32060 | ||||
| Linked diagrams | ||||
| 4703 | ||||

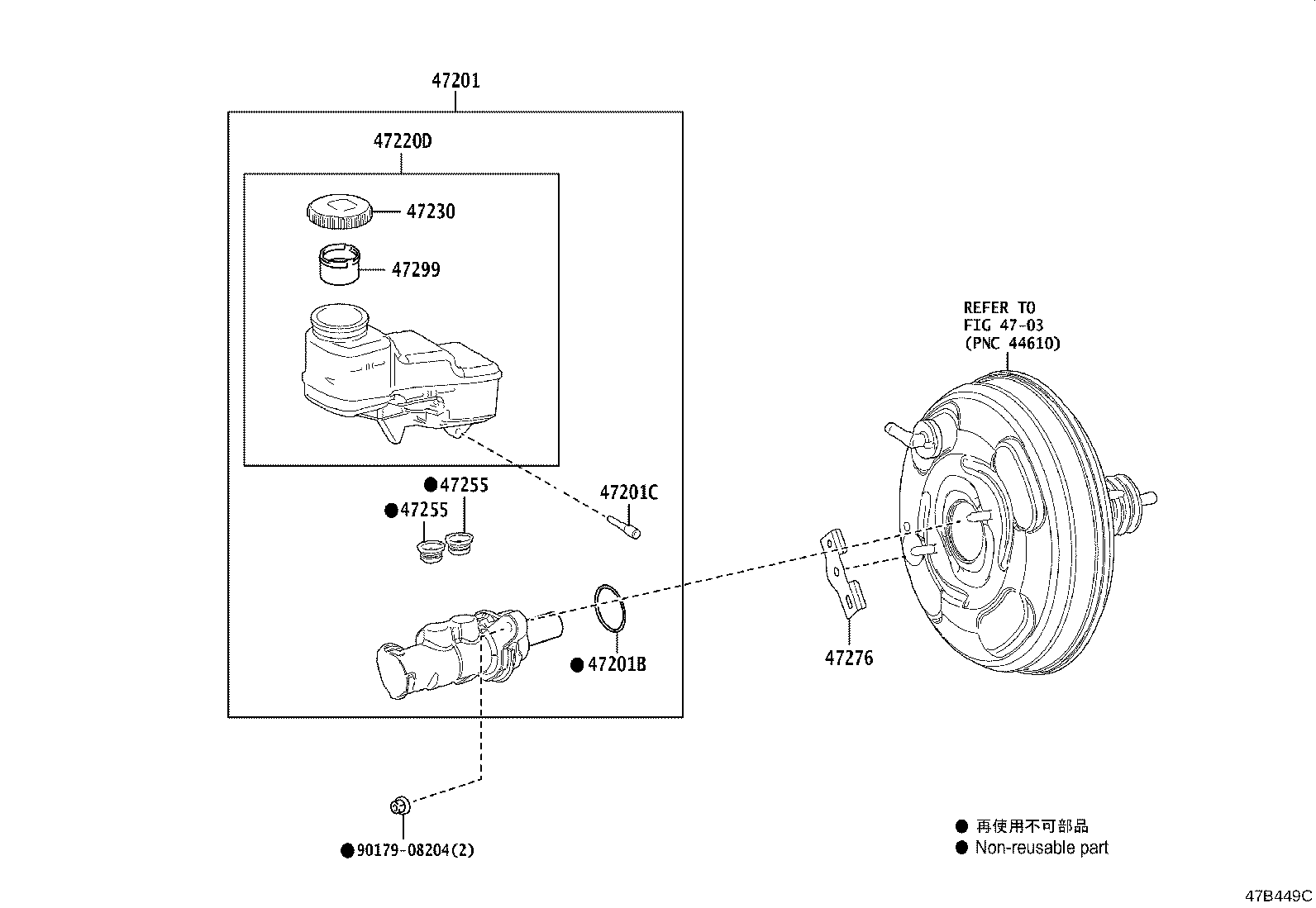

(1909- )ZRE21#..LHD
ADVICS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-F9020 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201-F9020 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201-12C40 |
ZRE210..6F..(GCC,GEN) BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201-F9020 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 47201-12C40 |
ZRE210..LHD..6F..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 90015-AH002 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 90029-15803 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12330 |
ZRE210..6F..(GCC,GEN) BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-F9020 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-F9020 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-12330 |
ZRE210..LHD..6F..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47220-F9020 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47230-F4010 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47230-F4010 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47230-F4010 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 47230-47090 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09040 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 90029-48001 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
2 | ||
| 47255-09040 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 90029-48001 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
2 | ||
| 47255-09040 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09040 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 90029-48001 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
2 | ||
| 47255-09040 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 90029-48001 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
2 | ||
| 47255-09040 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-12050 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47276-12050 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-02160 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 47299-20060 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299-02160 |
ZRE21#..GCC,GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299-20060 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 47299-02160 |
ZRE21#..LHD..GEN EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
