ZRE210L-DEFDK (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZR#,2ZRFE

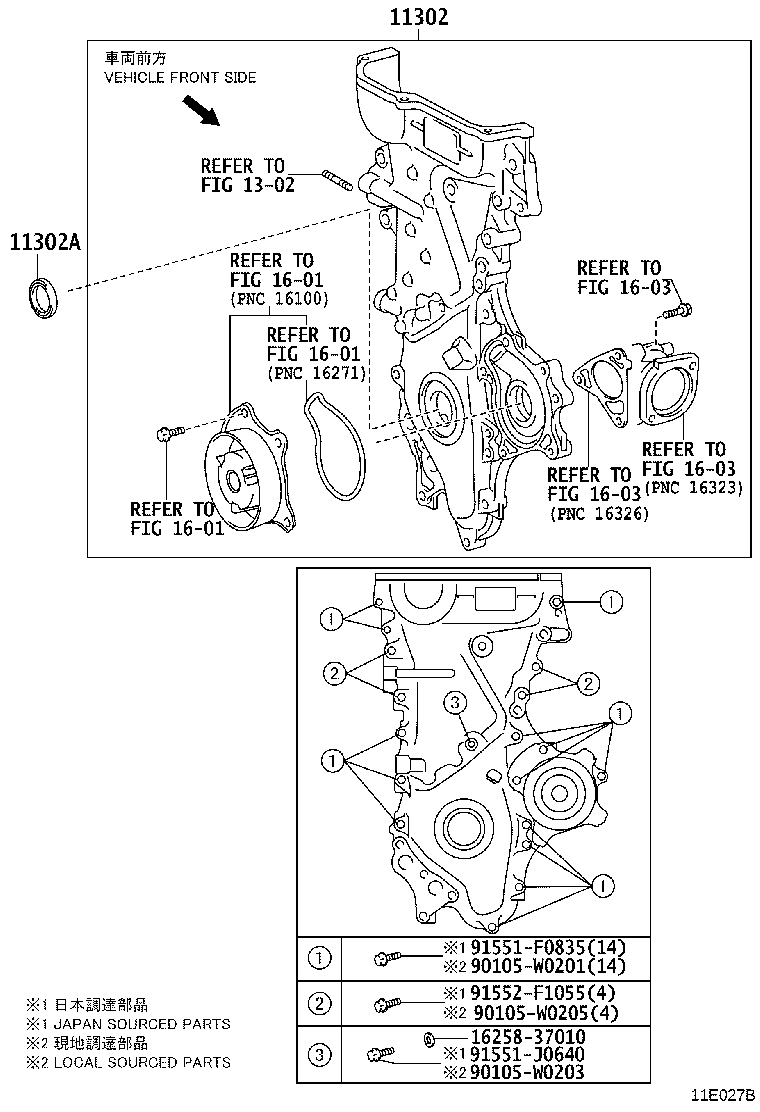

Click highlighted areas on diagram

diagram 11302 11302A 1302 1601 1601 1601 1603 1603 1603 1625837010 90105W0201 90105W0203 90105W0205 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0T071

1ZR#,2ZRFE..ZRE21#

(L)

 1
11310-0T072

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
11310-37011

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38096

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
Common parts
16258-37010
90105-W0201
90105-W0203
90105-W0205
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
1603
