MZEA11R-DEFDBW (2020)

Toyota Corolla (Tup)

Production Nov 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

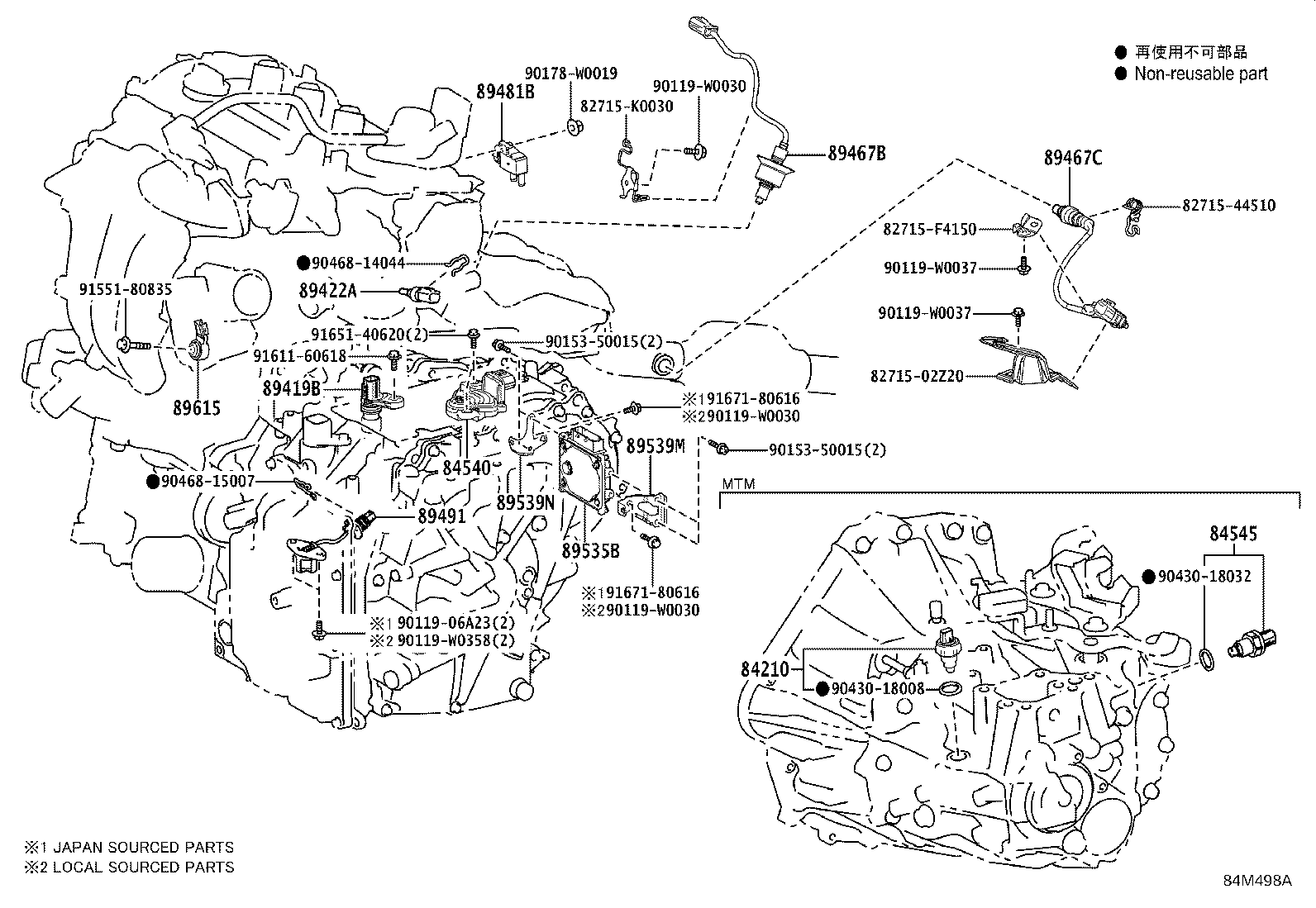

ILLUST NO. 1 OF 9(2011- )MZEA11

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271502Z20 8271544510 82715F4150 82715K0030 84210 84540 84545 89419B 89422A 89467B 89467C 89481B 89491 89535B 89539M 89539N 89615 9011906A23 90119W0030 90119W0030 90119W0030 90119W0037 90119W0037 90119W0358 9015350015 9015350015 90178W0019 9043018008 9043018032 9046814044 9046815007 9155180835 9161160618 9165140620 9167180616 9167180616
Part # Description Qty Price
84210 - SWITCH ASSY, BACK-UP LAMP
84210-52050

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
84545 - SWITCH, NEUTRAL POSITION
84545-52010

MZEA11..6F;ZRE210..LHD..6F..(D,N)..EUR

 1
89422A - SENSOR, WATER TEMPERATURE
89422-33040

MZEA11

 1
89467B - SENSOR, AIR FUEL RATIO
89467-K0020

MZEA11

 1
89467C - SENSOR, AIR FUEL RATIO, NO.2
89467-02280

MZEA11

 1
89481B - SENSOR, DIFFERENTIAL PRESSURE
89481-K0010

MZEA11

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-50081

MZEA11

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

(J)

 1
89615-02020

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

(L)

 1
Common parts
82715-02Z20
82715-44510
82715-F4150
82715-K0030
90119-06A23
90119-W0030
90119-W0037
90119-W0358
90153-50015
90178-W0019
90430-18008
90430-18032
90468-14044
90468-15007
91551-80835
91611-60618
91651-40620
91671-80616
