MZEA11R-DEFDBW (2020)

Toyota Corolla (Tup)

Production Nov 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )M15AFKS

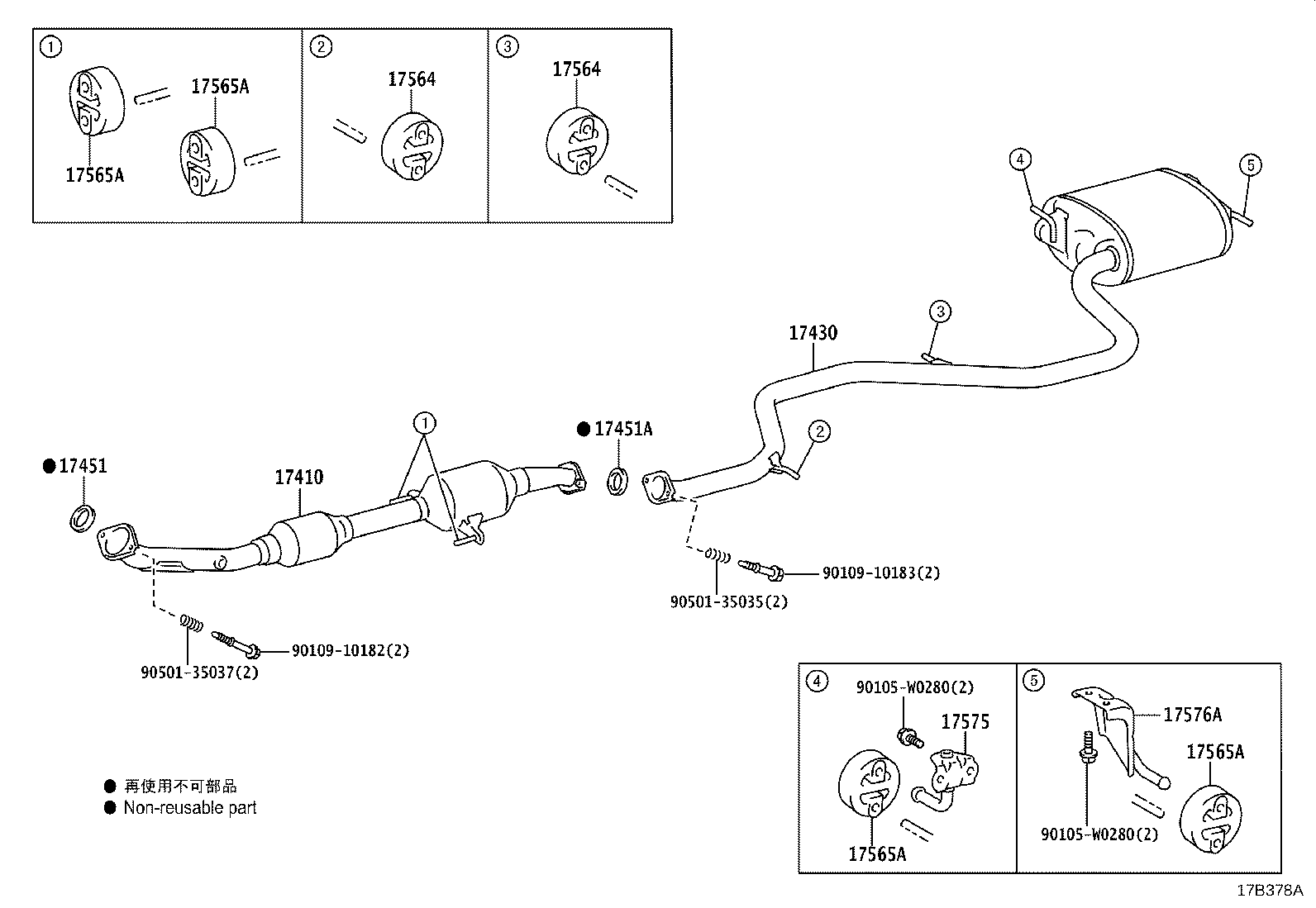

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17564 17564 17565A 17565A 17565A 17565A 17575 17576A 90105W0280 90105W0280 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F3050

M15AFKS..MZEA11

*114=TOYOTA/L54/Y

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F3050

M15AFKS..MZEA11

 1
17451 - GASKET, EXHAUST PIPE
17451-F3020

M15AFKS..MZEA11

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T040

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T040

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 4
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0T100

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-0T050

1ZRFAE..ZRE210..LHD..(D,N);M15AFKS,1ZRFE,2ZR#..MZEA11,ZRE21#,ZWE21#

 1
Common parts
90105-W0280
90109-10182
90109-10183
90501-35035
90501-35037
