MZEA11L-DEXGBW (2020)
Toyota Corolla (Tup)
Production
Nov 2020
-
Sep 9999
Engine
M15AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

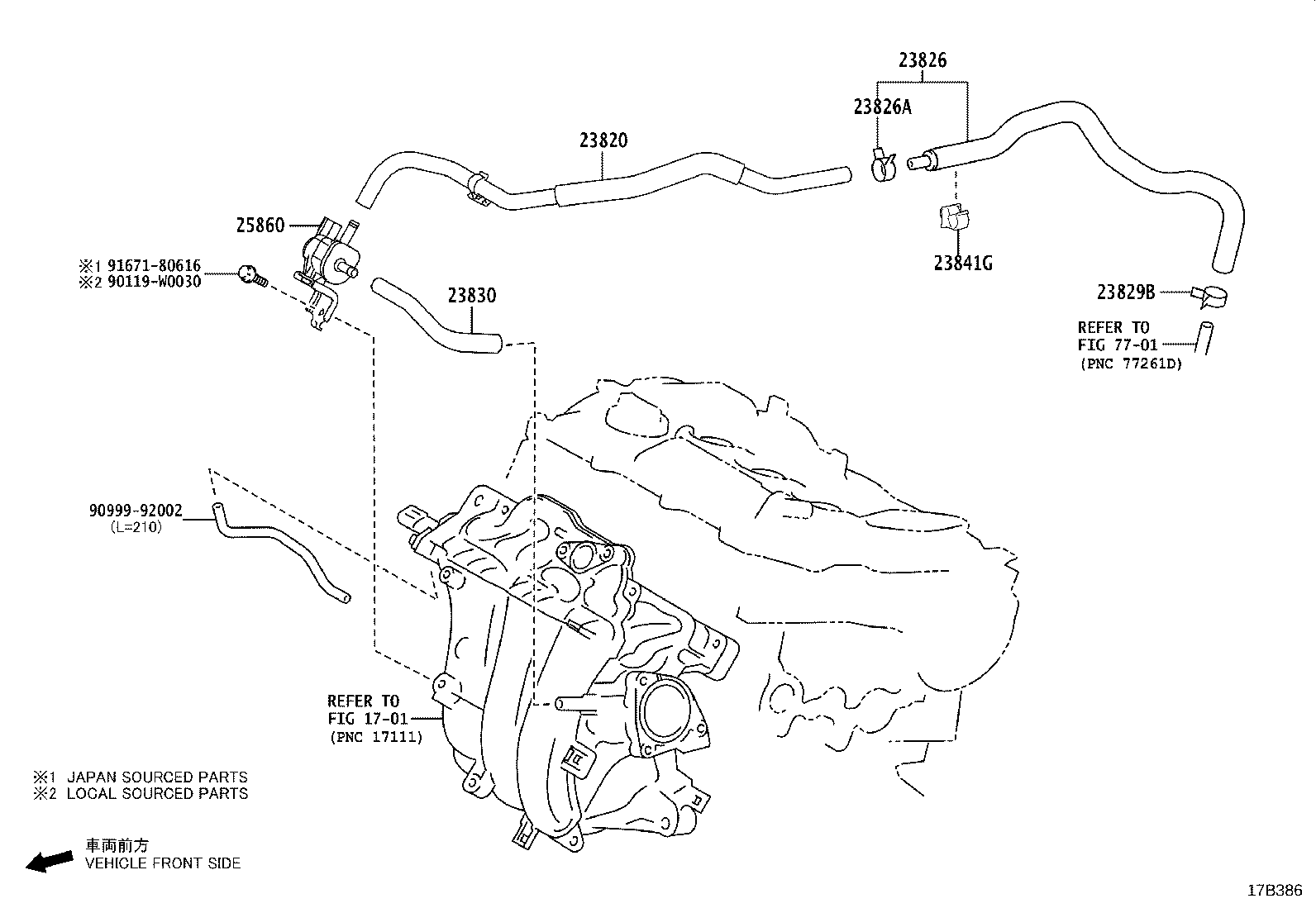

ILLUST NO. 1 OF 2(2011- )M15AFKS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-F3090 |
M15AFKS..MZEA11 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0T551 |
M15AFKS..MZEA11 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96136-41901 |
M15AFKS..MZEA11 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96136-41901 |
M15AFKS..MZEA11 |
1 | ||
| 23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2 | ||||
| 23826-F3070 |
M15AFKS..MZEA11 |
1 | ||
| 23841G - CLAMP, FUEL HOSE | ||||
| 77196-33040 |
M15AFKS..MZEA11 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-F3030 |
M15AFKS..MZEA11 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90999-92002 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 7701 | ||||

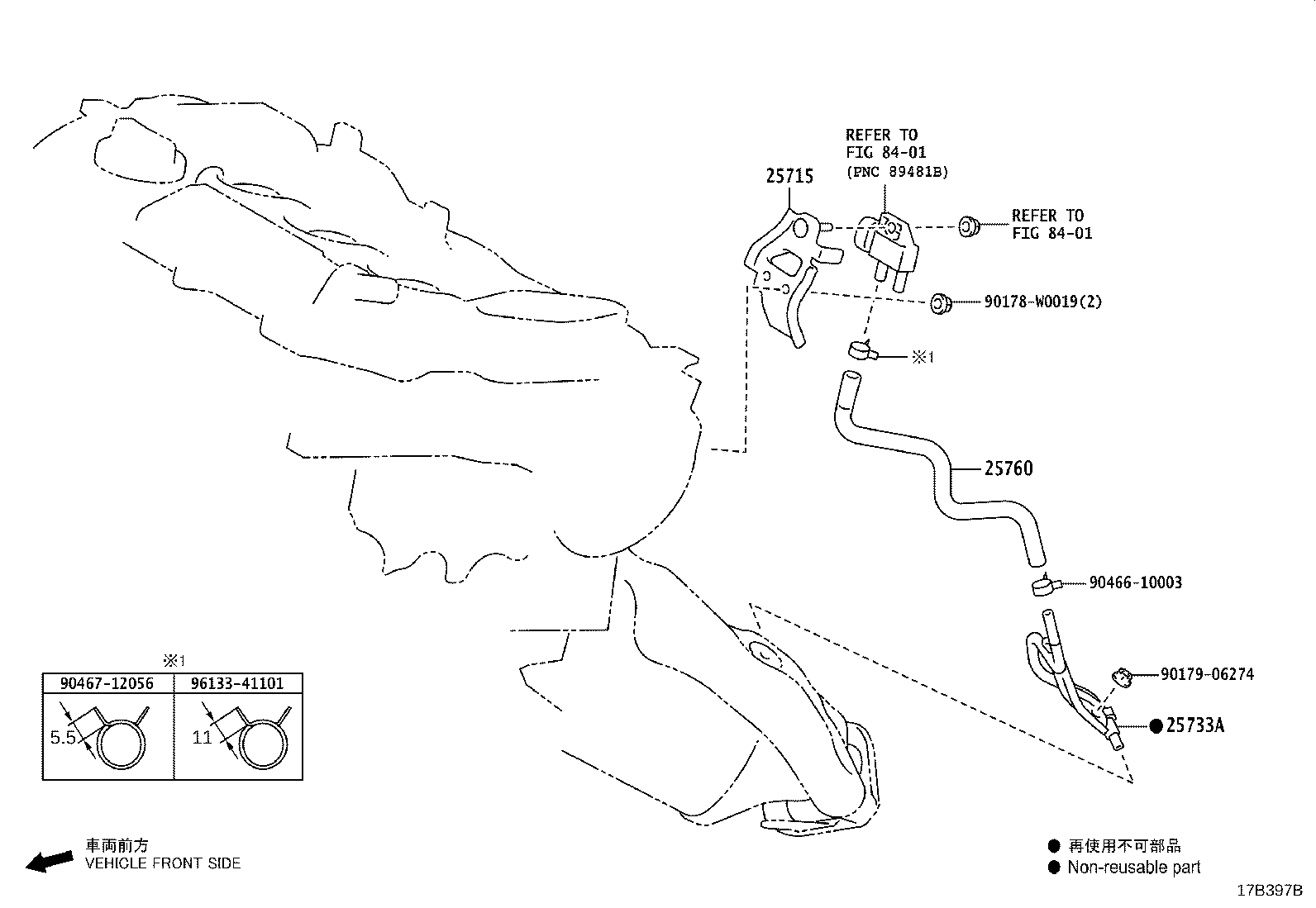

ILLUST NO. 2 OF 2(2011- )M15AFKS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-F3010 |
M15AFKS..MZEA11 |
1 | ||
| 25733A - PIPE, VACUUM, NO.1 | ||||
| 25733-F3010 |
M15AFKS..MZEA11 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-15040 |
M15AFKS..MZEA11 |
1 | ||
| Common parts | ||||
| 90178-W0019 | ||||
| 90179-06274 | ||||
| 90466-10003 | ||||
| 90467-12056 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 8401 | ||||
