MZEA11L-DEXGBW (2020)

Toyota Corolla (Tup)

Production Nov 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )M15AFKS

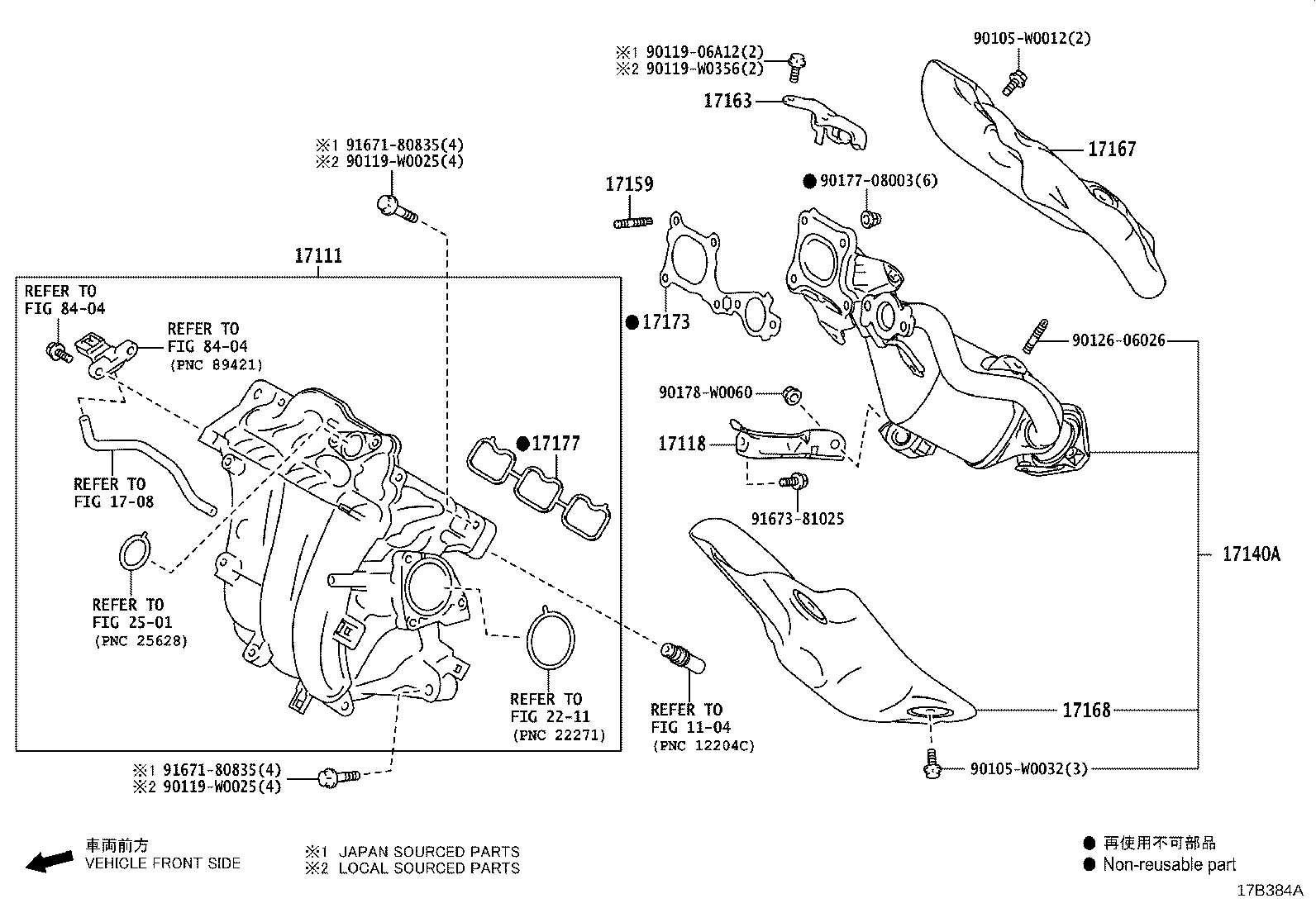

Click highlighted areas on diagram

diagram 1104 1708 17111 17118 17140A 17159 17163 17167 17168 17173 17177 2211 2501 8404 8404 90105W0012 90105W0032 9011906A12 90119W0025 90119W0025 90119W0356 9012606026 9017708003 90178W0060 9167180835 9167180835 9167381025
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-F3030

M15AFKS..MZEA11

 1
17118 - STAY, MANIFOLD
17118-F3010

M15AFKS..MZEA11

 1
17140A - MANIFOLD ASSY, EXHAUST
17140-F3010

M15AFKS..MZEA11

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

M15AFKS..MZEA11

 6
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-F3010

M15AFKS..MZEA11

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-F3010

M15AFKS..MZEA11

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-F3010

M15AFKS..MZEA11

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15050

M15AFKS..MZEA11

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15040

M15AFKS..MZEA11

 1
Common parts
90105-W0012
90105-W0032
90119-06A12
90119-W0025
90119-W0356
90126-06026
90177-08003
90178-W0060
91671-80835
91673-81025
Linked diagrams
1104
1708
2211
2501
8404
