MZEA11L-DEFNBW (2020)

Toyota Corolla (Tup)

Production Nov 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )MZEA11..6F

Click highlighted areas on diagram

EC6D

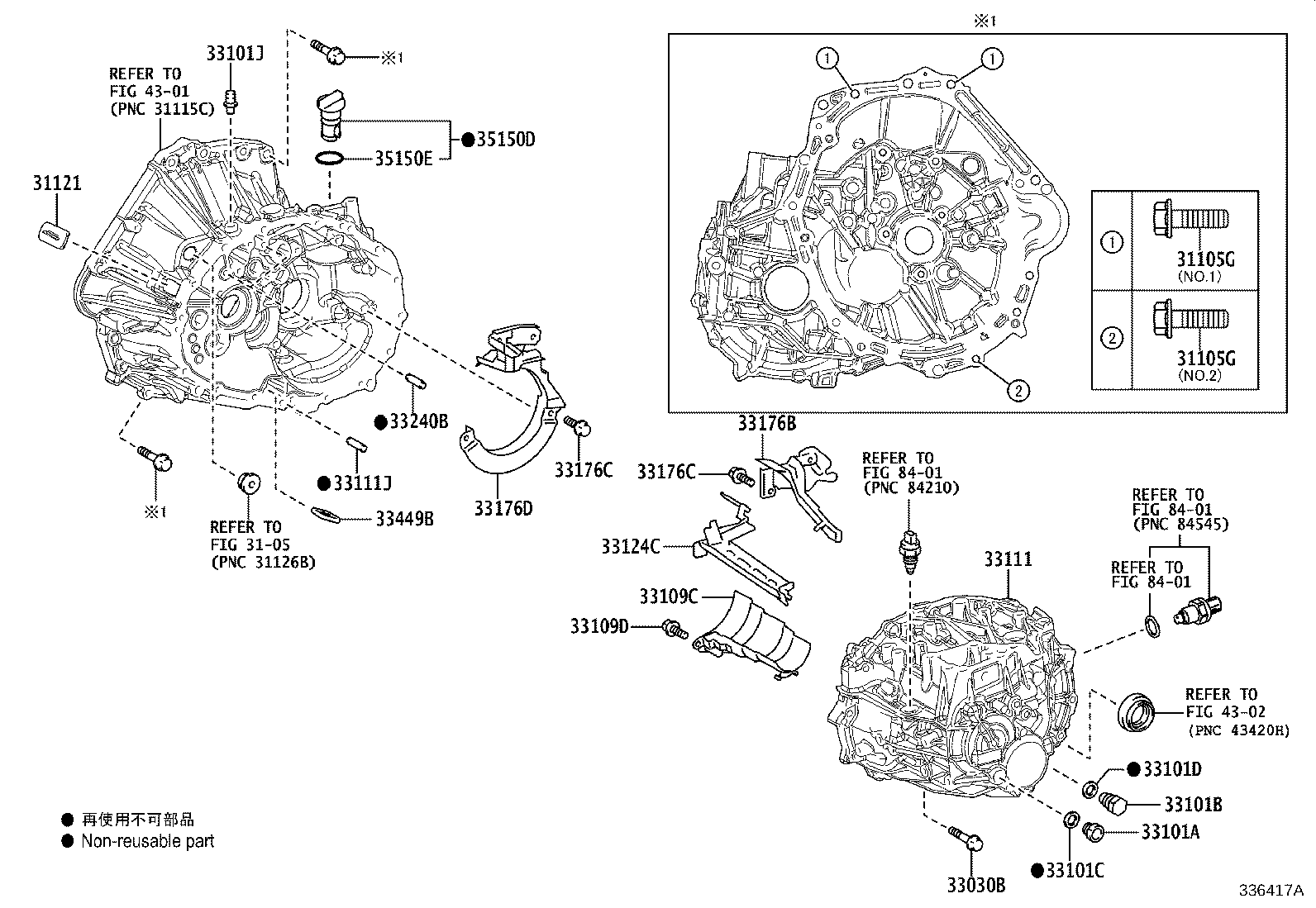

diagram 3105 31105G 31105G 31121 33030B 33101A 33101B 33101C 33101D 33101J 33109C 33109D 33111 33111J 33124C 33176B 33176C 33176C 33176D 33240B 33449B 35150D 35150E 4301 4302 8401 8401 8401
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-W0092

MZEA11..6F

*8-1.25PX35-22,(L),NO.2:REFER ILL.

 1
91553-80830

MZEA11..6F

*8-1.25PX35-22,(J),NO.2:REFER ILL.

 1
90105-W0267

MZEA11..6F

*10-1.25PX45-36,(L),NO.1:REFER ILL.

 2
90105-10591

MZEA11..6F

*10-1.25PX45-36,(J),NO.1:REFER ILL.

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-W0092

MZEA11..6F

*8-1.25PX35-22,(L),NO.2:REFER ILL.

 1
91553-80830

MZEA11..6F

*8-1.25PX35-22,(J),NO.2:REFER ILL.

 1
90105-W0267

MZEA11..6F

*10-1.25PX45-36,(L),NO.1:REFER ILL.

 2
90105-10591

MZEA11..6F

*10-1.25PX45-36,(J),NO.1:REFER ILL.

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-05010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

*8-1.25PX40-22,(J)

 16
90105-W0209

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

*8-1.25PX40-22,(L)

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

MZEA11..6F

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18085

MZEA11..6F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

MZEA11..6F

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
12157-10010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
33101J - PLUG, BREATHER
90930-03133

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-K0010

MZEA11..6F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-K0020

MZEA11..LHD..D

CRUISE CONTROL-WITHOUT

 1
33111-K0010

MZEA11..6F

 1
33111-K0020

MZEA11..LHD..D

CRUISE CONTROL-WITH

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

L=23,OD=8

 3
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-K0010

MZEA11..6F

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D020

MZEA11..6F

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

(L)

 2
91551-80816

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

(J)

 2
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

(L)

 2
91551-80816

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

(J)

 2
33176D - SEPARATOR, TRANSMISSION OIL, NO.2(MTM)
33176-0D030

MZEA11..6F

 1
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
33449B - MAGNET, TRANSMISSION
33449-20010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
