ZRE182L-DEXNKW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )ZRE18#

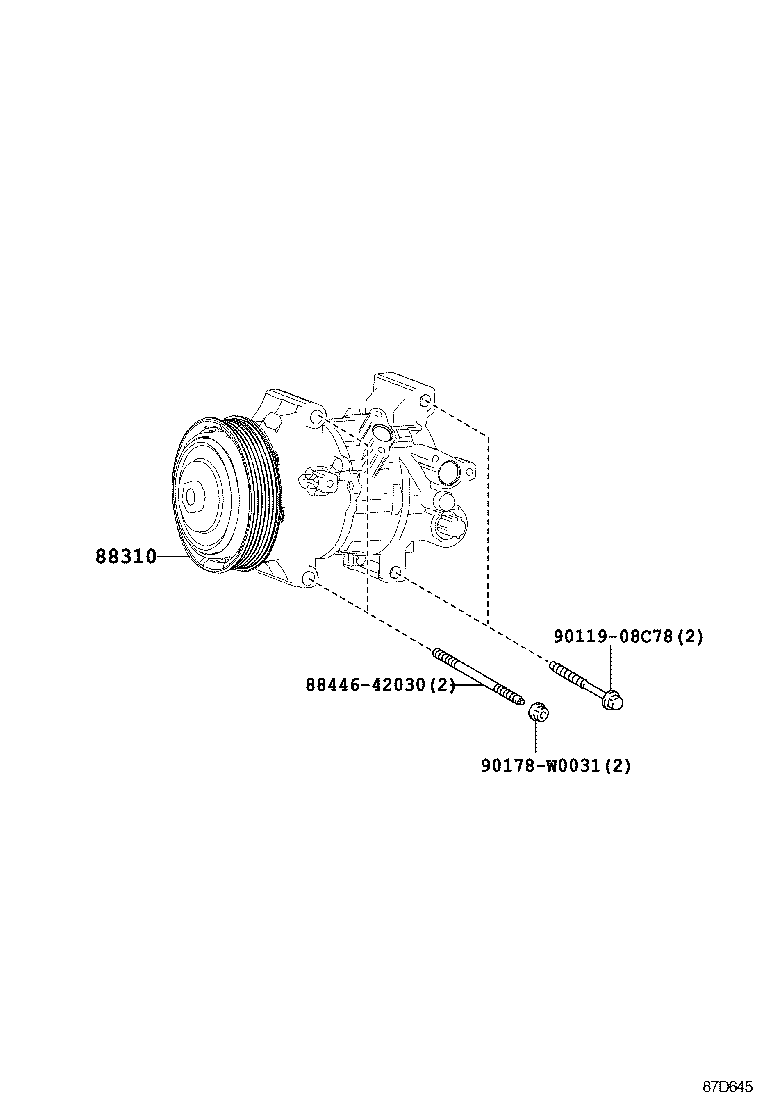

Click highlighted areas on diagram

diagram 88310 8844642030 9011908C78 90178W0031
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-02790

ZRE18#..N

 1
88310-02790

ZRE18#..CVT..N..HTWC

NON-NEW MAC SPEC COUNTRY&JORDAN SPEC&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..N..HTWC

NON-NEW MAC SPEC COUNTRY&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..N..HTWC

NON-NEW MAC SPEC COUNTRY&EGYPT SPEC&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..D

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88310-02790

ZRE18#..N..HTWC

RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..N..HTWC

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..CVT..N..HTWC

SUDAN,SYRIA SPEC&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..CVT..N..HTWC

NON-NEW MAC SPEC COUNTRY&SUDAN,SYRIA SPEC&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..N..HTWC

EGYPT SPEC&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..CVT..N..HTWC

JORDAN SPEC&AIR CONDITIONER-WITHOUT

 1
88310-02790

ZRE18#..N

AIR CONDITIONER-WITHOUT

 1
Common parts
88446-42030
90119-08C78
90178-W0031
