ZRE182L-DEXGKX (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )G,N ; (1606- )RHD

Click highlighted areas on diagram

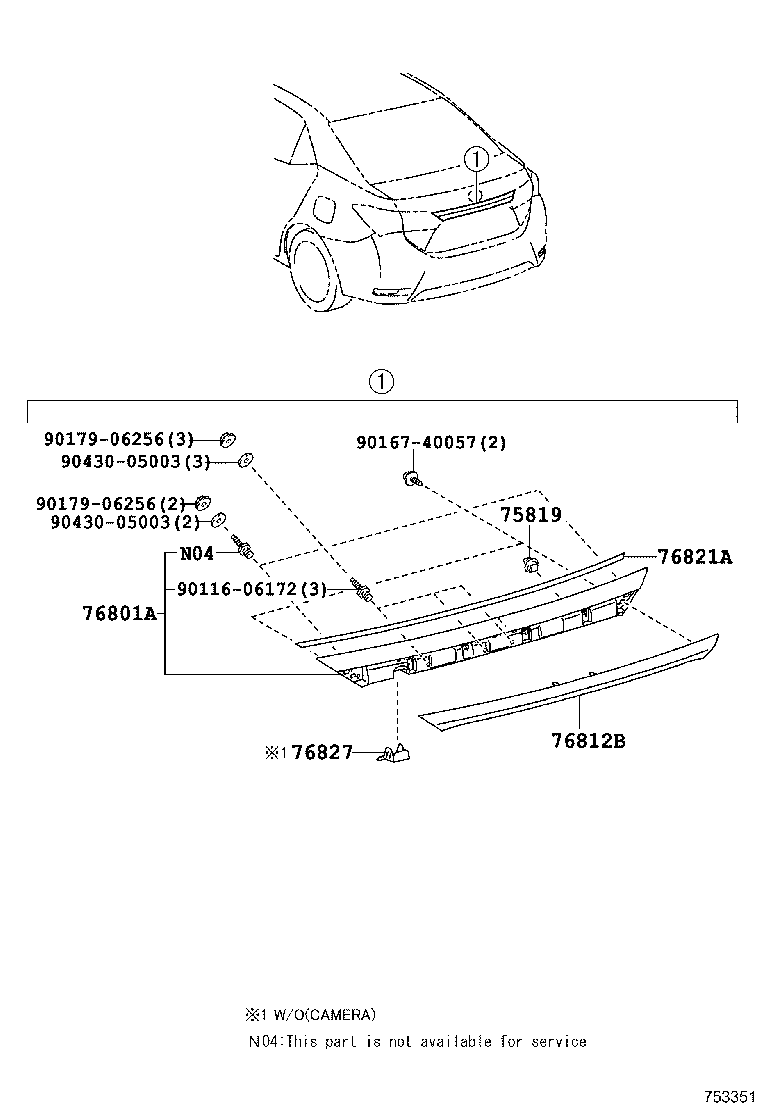

REAR COMBINATION LAMP - LED TYPE

diagram 75819 76801A 76812B 76821A 76827 9011606172 9016740057 9017906256 9017906256 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE180,NRE180,ZRE18#

 1
75819-33010

NDE180,ZRE18#

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02A80

NDE180,NRE180,ZRE18#

PLATED

 1
76811-02954

NDE180,ZRE18#..G,N

PAINT REQ.

 1
76812B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2
76812-02090

NDE180,ZRE18#..G,N

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02160

NDE180,NRE180,ZRE18#

 1
76825-02290

NDE180,ZRE18#..G,N

 1
76827 - RETAINER, BACK DOOR GARNISH, NO.2
76827-02010

NDE180,ZRE18#..G,N

 1
Common parts
90116-06172
90167-40057
90179-06256
90430-05003

(1608- )EUR ; (1608- )D..RUS

Click highlighted areas on diagram

REAR COMBINATION LAMP - BULB TYPE

diagram 75819 76801A 76821A 9010906391 9011406026 9011406026 9017906256 9017906256 9017906256
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE180,NRE180,ZRE18#

 1
75819-33010

NDE180,ZRE18#

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02A80

NDE180,NRE180,ZRE18#

PLATED

 1
76811-02954

NDE180,ZRE18#..G,N

PAINT REQ.

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02160

NDE180,NRE180,ZRE18#

 1
76825-02290

NDE180,ZRE18#..G,N

 1
Common parts
90109-06391
90114-06026
90179-06256
