ZRE182L-DEXDKW (2013)
Toyota Corolla

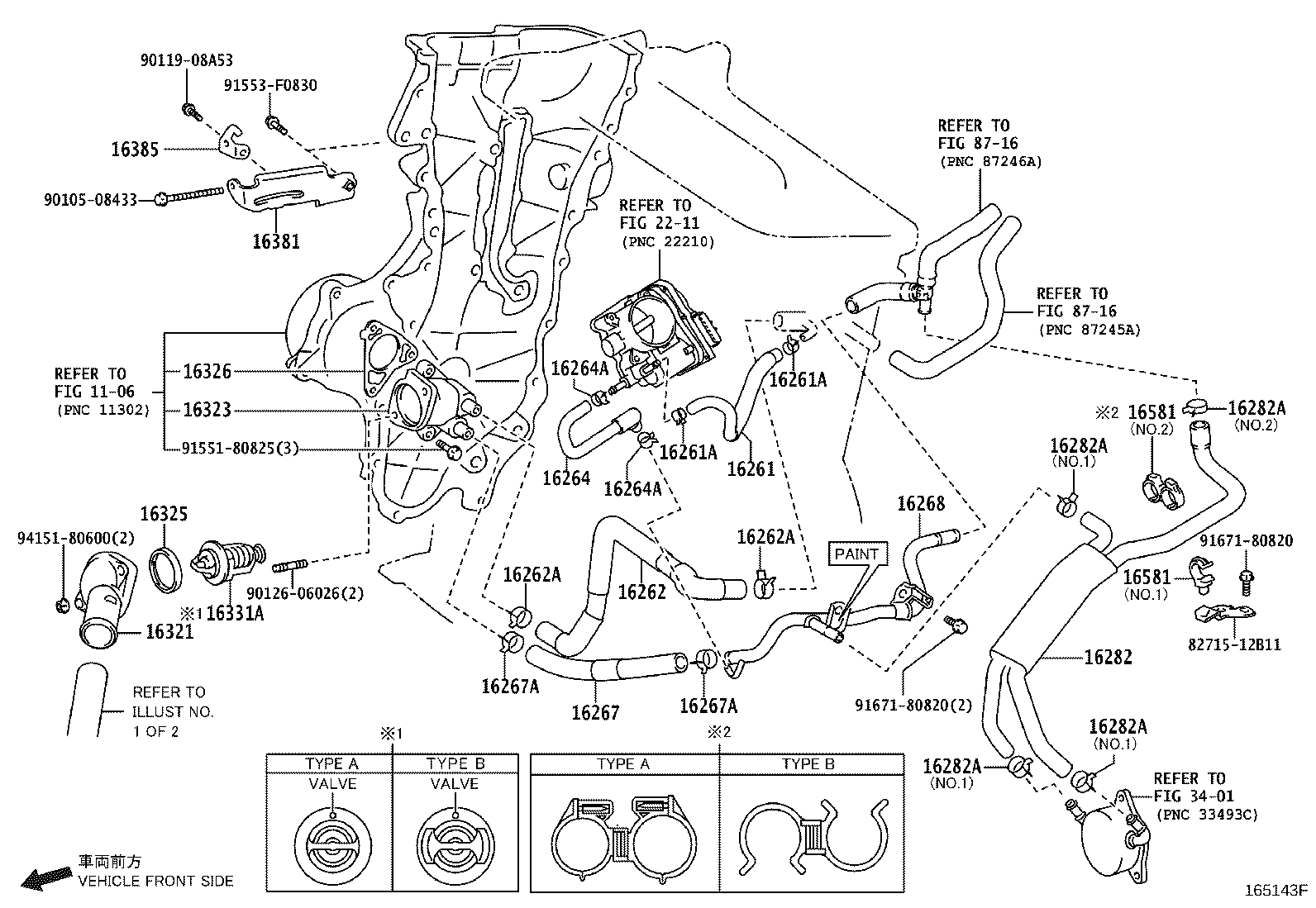

ILLUST NO. 2 OF 2(1306- )1ZRFAE..RHD ; (1306- )1ZRFAE..CVT..G,N ; (1306- )1ZRFE,2ZRFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T240 |
1ZRFAE,2ZRFE..ZRE18# (L) |
1 | ||
| 16261-37052 |
1ZRFAE,2ZRFE..ZRE18# (J) |
1 | ||
| 16261-37052 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 16262-0T050 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 16262-37010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# (J) |
2 | ||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18# (L) |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# (J) |
2 | ||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18# (L) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37042 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18# (L) |
2 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# (J) |
2 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18# (L) |
2 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# (J) |
2 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37021 |
1ZR#,2ZRFE..ZRE18#..CVT |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-37010 |
1ZR#,2ZRFE..ZRE18#..CVT |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-52201 |
1ZR#,2ZRFE..ZRE18#..CVT NO.1 |
3 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18#..CVT (J),NO.2 |
1 | ||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18#..CVT (L),NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-52201 |
1ZR#,2ZRFE..ZRE18#..CVT NO.1 |
3 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18#..CVT (J),NO.2 |
1 | ||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18#..CVT (L),NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-52201 |
1ZR#,2ZRFE..ZRE18#..CVT NO.1 |
3 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18#..CVT (J),NO.2 |
1 | ||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18#..CVT (L),NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-52201 |
1ZR#,2ZRFE..ZRE18#..CVT NO.1 |
3 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18#..CVT (J),NO.2 |
1 | ||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18#..CVT (L),NO.2 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 16321-0T010 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 16323-37021 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03145 |
1ZR#,2ZRFE..ZRE18# *WAX 82-95,TYPE B:REFER ILLUST. |
1 | ||
| 90916-A3003 |
1ZR#,2ZRFE..ZRE18# *WAX 82-95,TYPE A:REFER ILLUST. |
1 | ||
| 90916-03144 |
1ZR#,2ZRFE..ZRE18# *WAX 82-95,TYPE A:REF ILL,KUZEH |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37030 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21030 |
1ZR#,2ZRFE..ZRE18#..CVT NO.1 |
1 | ||
| 16581-21060 |
1ZR#,2ZRFE..ZRE18#..CVT TYPE A,NO.2 |
1 | ||
| 90464-00763 |
1ZR#,2ZRFE..ZRE18#..CVT TYPE B,NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21030 |
1ZR#,2ZRFE..ZRE18#..CVT NO.1 |
1 | ||
| 16581-21060 |
1ZR#,2ZRFE..ZRE18#..CVT TYPE A,NO.2 |
1 | ||
| 90464-00763 |
1ZR#,2ZRFE..ZRE18#..CVT TYPE B,NO.2 |
1 | ||
| Common parts | ||||
| 82715-12B11 | ||||
| 90105-08433 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3401 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(1306-1901)1ZRFE,2ZRFE ; (1306-1901)1ZRFAE..G,N; (1306-1901)1ZRFAE..RHD ; (1306-19
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0Y040 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18# (L),NO.2 |
1 | ||
| 96136-42201 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# (J),NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0007 |
1ZR#,2ZRFE..ZRE18# (L),NO.2 |
1 | ||
| 96136-42201 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 96136-42501 |
1ZR#,2ZRFE..ZRE18# (J),NO.2 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-0Y030 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 96136-42101 |
1ZR#,2ZRFE..ZRE18# NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 96136-42101 |
1ZR#,2ZRFE..ZRE18# NO.2 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-0D020 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16267-0D020 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16267-0D020 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 90467-15022 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 90467-15022 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-0T050 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41901 |
1ZR#,2ZRFE..ZRE18# NO.2 |
1 | ||
| 90467-17013 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41901 |
1ZR#,2ZRFE..ZRE18# NO.2 |
1 | ||
| 90467-17013 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-0D170 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16361-0D150 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16361-0D150 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22120 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16363-0D120 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16363-0D120 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D430 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16400-0D400 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16400-0D400 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0D430 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16417-21280 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16417-21280 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0D430 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16492-21050 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16492-21050 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-0D030 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-37011 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16475-37010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Y030 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0Y010 |
1ZR#,2ZRFE..ZRE18# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-22030 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16561-22030 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16561-22030 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-W0016 |
1ZR#,2ZRFE..ZRE18# (L),NO.1 |
1 | ||
| 96136-43901 |
1ZR#,2ZRFE..ZRE18# NO.2 |
1 | ||
| 96136-44301 |
1ZR#,2ZRFE..ZRE18# (J),NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-W0016 |
1ZR#,2ZRFE..ZRE18# (L),NO.1 |
1 | ||
| 96136-43901 |
1ZR#,2ZRFE..ZRE18# NO.2 |
1 | ||
| 96136-44301 |
1ZR#,2ZRFE..ZRE18# (J),NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T150 |
1ZR#,2ZRFE..ZRE18#..CVT |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-W0016 |
1ZR#,2ZRFE..ZRE18# (L) |
2 | ||
| 96136-44301 |
1ZR#,2ZRFE..ZRE18# (J) |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-W0016 |
1ZR#,2ZRFE..ZRE18# (L) |
2 | ||
| 96136-44301 |
1ZR#,2ZRFE..ZRE18# (J) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0D170 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T070 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0016 |
1ZR#,2ZRFE..ZRE18# (L),NO.2 |
1 | ||
| 90466-35001 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 96136-44301 |
1ZR#,2ZRFE..ZRE18# (J),NO.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0016 |
1ZR#,2ZRFE..ZRE18# (L),NO.2 |
1 | ||
| 90466-35001 |
1ZR#,2ZRFE..ZRE18# NO.1 |
1 | ||
| 96136-44301 |
1ZR#,2ZRFE..ZRE18# (J),NO.2 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-0Y010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T020 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-36020 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0D210 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16711-0D190 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| 16711-0D190 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0D010 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,*154 |
1 | ||
| 16712-0D030 |
1ZR#,2ZRFE..ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER,FRAME NO.=0XXXXXX |
1 | ||
| 16712-0D010 |
1ZR#,2ZRFE..ZRE18#..D |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-W0037 | ||||
| 90119-W0061 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
