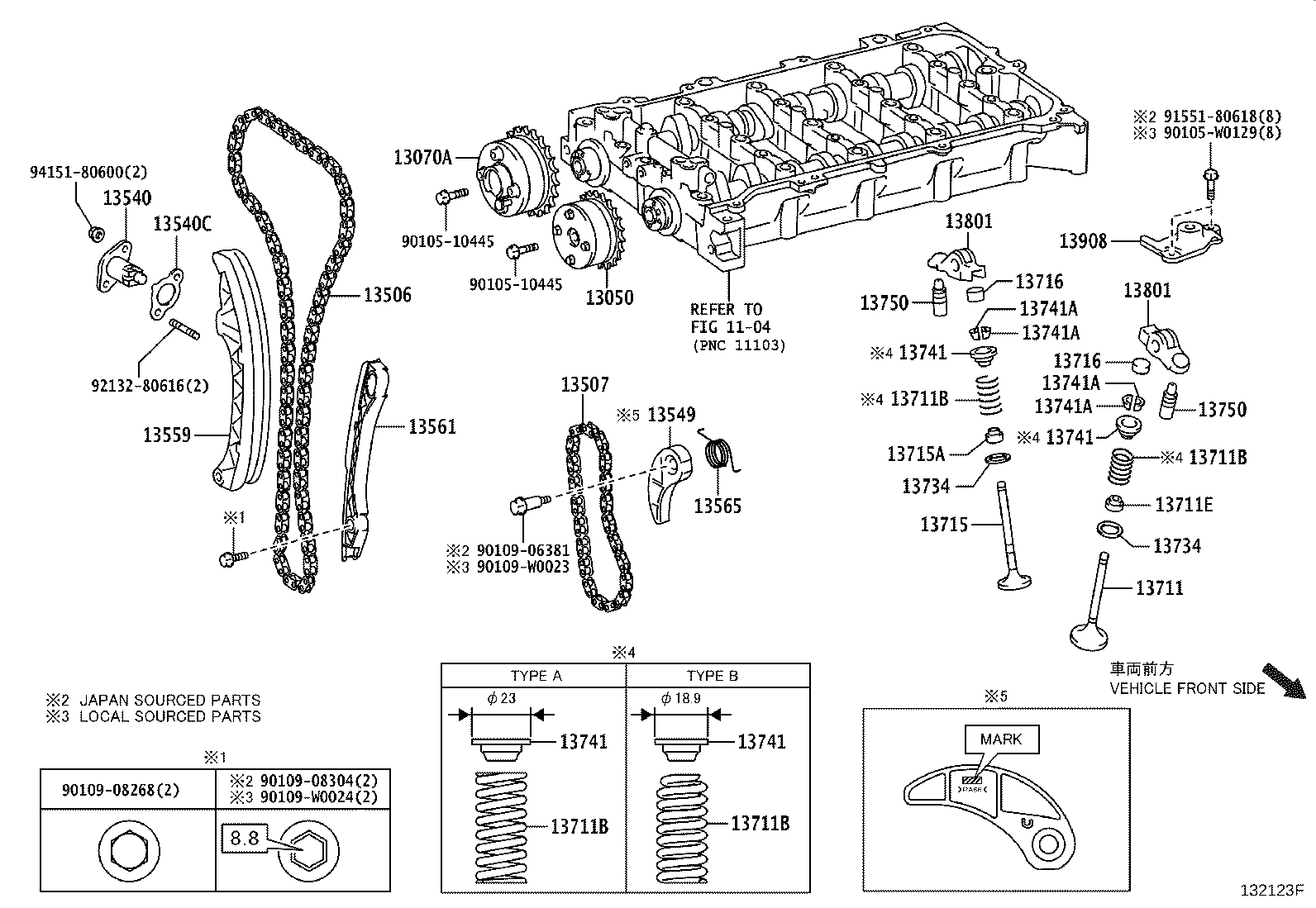

ZRE181L-DEXNKW (2013)
Toyota Corolla
(1306- )1ZRFE,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-37010 |
1ZRFE,2ZRFE..ZRE18# |
2 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-37010 |
1ZRFE,2ZRFE..ZRE18# |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0T080 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13050-37060 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13070-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-37010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 13506-37070 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 13506-0T110 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13506-37070 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0T030 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13501-37011 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-37010 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13502-0T030 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13540-37030 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13552-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-0T050 |
1ZRFE,2ZRFE..ZRE18# MARK UK |
1 | ||
| 13549-0T030 |
1ZRFE,2ZRFE..ZRE18# MARK TEUA |
1 | ||
| 13549-37020 |
1ZR#,2ZRFE..ZRE18# W/O MARK |
1 | ||
| 13549-37010 |
1ZR#,2ZRFE..ZRE18# W/O MARK |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13559-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13559-37050 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-37020 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13561-0T020 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13561-37050 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-37010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 13562-37020 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13565-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-37020 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 13711-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 90080-31061 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 13715-37030 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90080-31062 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 90913-02112 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13716-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13716-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13734-0P010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13734-0P010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13750-0T010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-21010 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13750-0T010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-21010 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-36020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-23011 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-36020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-23011 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90109-06381 | ||||
| 90109-W0023 | ||||
| 90119-W0030 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
(1306- )1ZRFAE..G,N ; (1306- )1ZRFAE..RHD; (1306- )1ZRFAE..6F..D ; (1711-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0T080 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13050-37060 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13070-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-37010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 13506-37070 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 13506-0T110 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13506-37070 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
1ZR#,2ZRFE..ZRE18# |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13540-37030 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13552-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-0T050 |
1ZRFE,2ZRFE..ZRE18# MARK UK |
1 | ||
| 13549-0T030 |
1ZRFE,2ZRFE..ZRE18# MARK TEUA |
1 | ||
| 13549-37020 |
1ZR#,2ZRFE..ZRE18# W/O MARK |
1 | ||
| 13549-37010 |
1ZR#,2ZRFE..ZRE18# W/O MARK |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13559-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13559-37050 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-37020 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13561-0T020 |
1ZRFE,2ZRFE..ZRE18# (L) |
1 | ||
| 13561-37050 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-37010 |
1ZR#,2ZRFE..ZRE18# (J) |
1 | ||
| 13565-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-37020 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 13711-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31027 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 90501-32071 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-32072 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 90080-31061 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 13715-37030 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90080-31062 |
1ZR#,2ZRFE..ZRE18# (L) |
8 | ||
| 90913-02112 |
1ZR#,2ZRFE..ZRE18# (J) |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13716-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13716-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13734-0P010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13734-62020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13734-0P010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# TYPE A:REFER ILLUST. |
16 | ||
| 13741-20021 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# |
16 | ||
| 13741-36010 |
1ZR#,2ZRFE..ZRE18# TYPE B:REFER ILLUST. |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# (J) |
32 | ||
| 90913-03028 |
1ZR#,2ZRFE..ZRE18# |
32 | ||
| 90913-W3001 |
1ZR#,2ZRFE..ZRE18# (L) |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13750-0T010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-21010 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13750-0T010 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-0T040 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13750-21010 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-36020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-23011 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0T030 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-36020 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| 13801-0T020 |
1ZR#,2ZRFE..ZRE18# (L) |
16 | ||
| 13801-23011 |
1ZR#,2ZRFE..ZRE18# (J) |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90105-W0129 | ||||
| 90109-06381 | ||||
| 90109-08268 | ||||
| 90109-08304 | ||||
| 90109-W0023 | ||||
| 90109-W0024 | ||||
| 91551-80618 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
