ZRE181L-DEXDKW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306-1605)1ZR#,2ZRFE..CVT

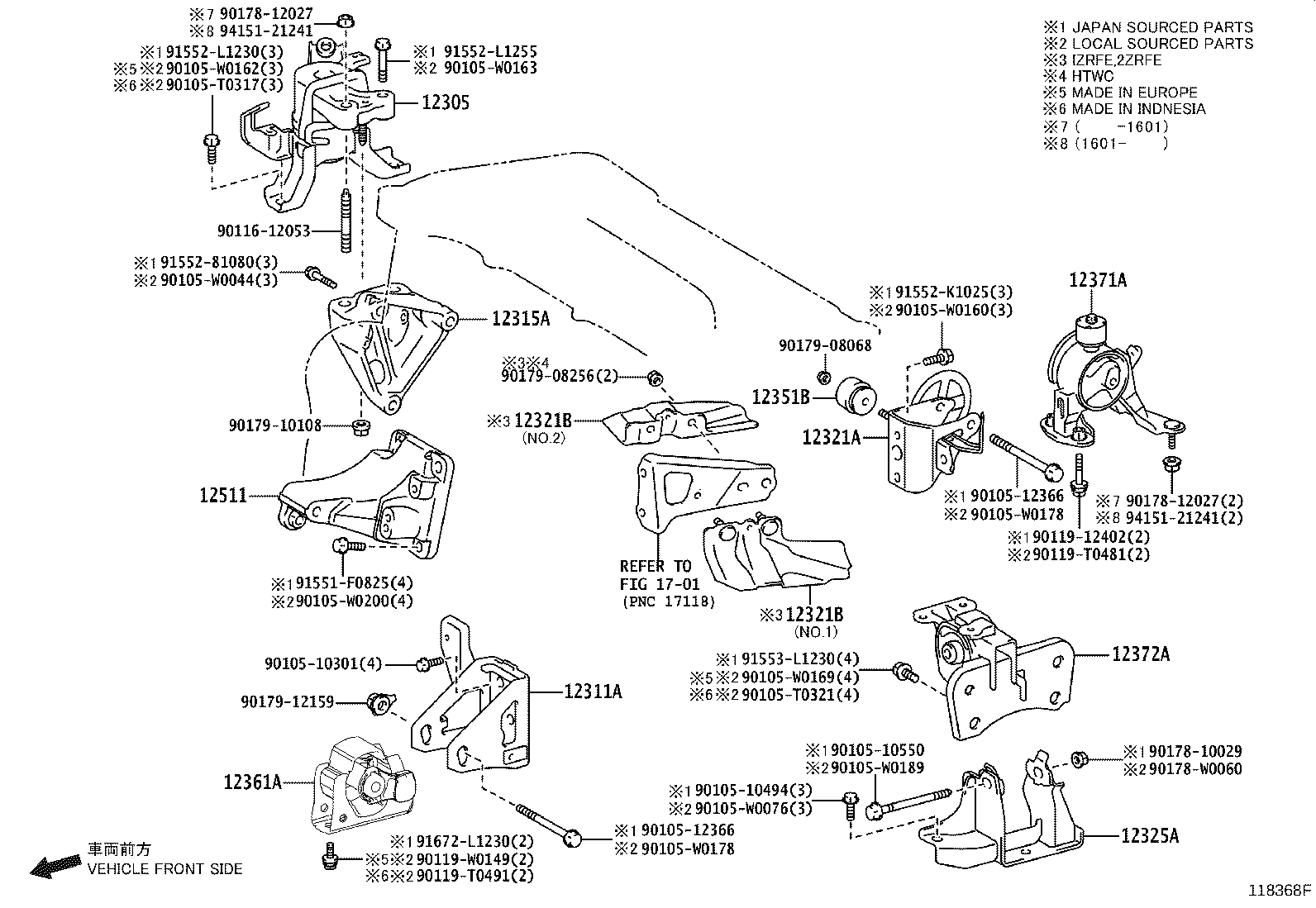

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351B 12361A 12371A 12372A 12511 1701 9010510301 9010510494 9010510550 9010512366 9010512366 90105T0317 90105T0321 90105W0044 90105W0076 90105W0160 90105W0162 90105W0163 90105W0169 90105W0178 90105W0178 90105W0189 90105W0200 9011612053 9011912402 90119T0481 90119T0491 90119W0149 9017810029 9017812027 9017812027 90178W0060 9017908068 9017908256 9017910108 9017912159 91551F0825 9155281080 91552K1025 91552L1230 91552L1255 91553L1230 91672L1230 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T150

1ZR#,2ZRFE..ZRE18#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T390

1ZR#,2ZRFE..ZRE18#

MADE IN SOUTH AFRICA

 1
12311-0T340

1ZR#,2ZRFE..ZRE18#

MADE IN EUROPE

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

1ZR#,2ZRFE..ZRE18#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T090

1ZR#,2ZRFE..ZRE18#..CVT

 1
12321-0T140

1ZR#,2ZRFE..ZRE18#..CVT

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

1ZRFE,2ZRFE..ZRE18#

NO.1

 1
43498-12051

1ZRFE,2ZRFE..ZRE18#

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

1ZRFE,2ZRFE..ZRE18#

NO.1

 1
43498-12051

1ZRFE,2ZRFE..ZRE18#

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T150

1ZR#,2ZRFE..ZRE18#..CVT

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0D080

1ZR#,2ZRFE..ZRE18#..CVT

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T180

1ZR#,2ZRFE..ZRE18#..CVT

 1
12361-0T181

1ZR#,2ZRFE..ZRE18#..CVT

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T210

1ZR#,2ZRFE..ZRE18#..CVT

 1
12371-37142

1ZRFE,2ZRFE..ZRE18#..CVT

NON-NEW MAC SPEC COUNTRY

 1
12371-37141

1ZRFE,2ZRFE..ZRE18#..CVT

NON-NEW MAC SPEC COUNTRY

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T280

1ZR#,2ZRFE..ZRE18#..CVT

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

1ZR#,2ZRFE..ZRE18#

(J)

 1
12511-0T020

1ZR#,2ZRFE..ZRE18#

(L)

 1
Common parts
90105-10301
90105-10494
90105-10550
90105-12366
90105-T0317
90105-T0321
90105-W0044
90105-W0076
90105-W0160
90105-W0162
90105-W0163
90105-W0169
90105-W0178
90105-W0189
90105-W0200
90116-12053
90119-12402
90119-T0481
90119-T0491
90119-W0149
90178-10029
90178-12027
90178-W0060
90179-08068
90179-08256
90179-10108
90179-12159
91551-F0825
91552-81080
91552-K1025
91552-L1230
91552-L1255
91553-L1230
91672-L1230
94151-21241
Linked diagrams
1701
