ZRE181L-DEFNPW (2016)
Toyota Corolla

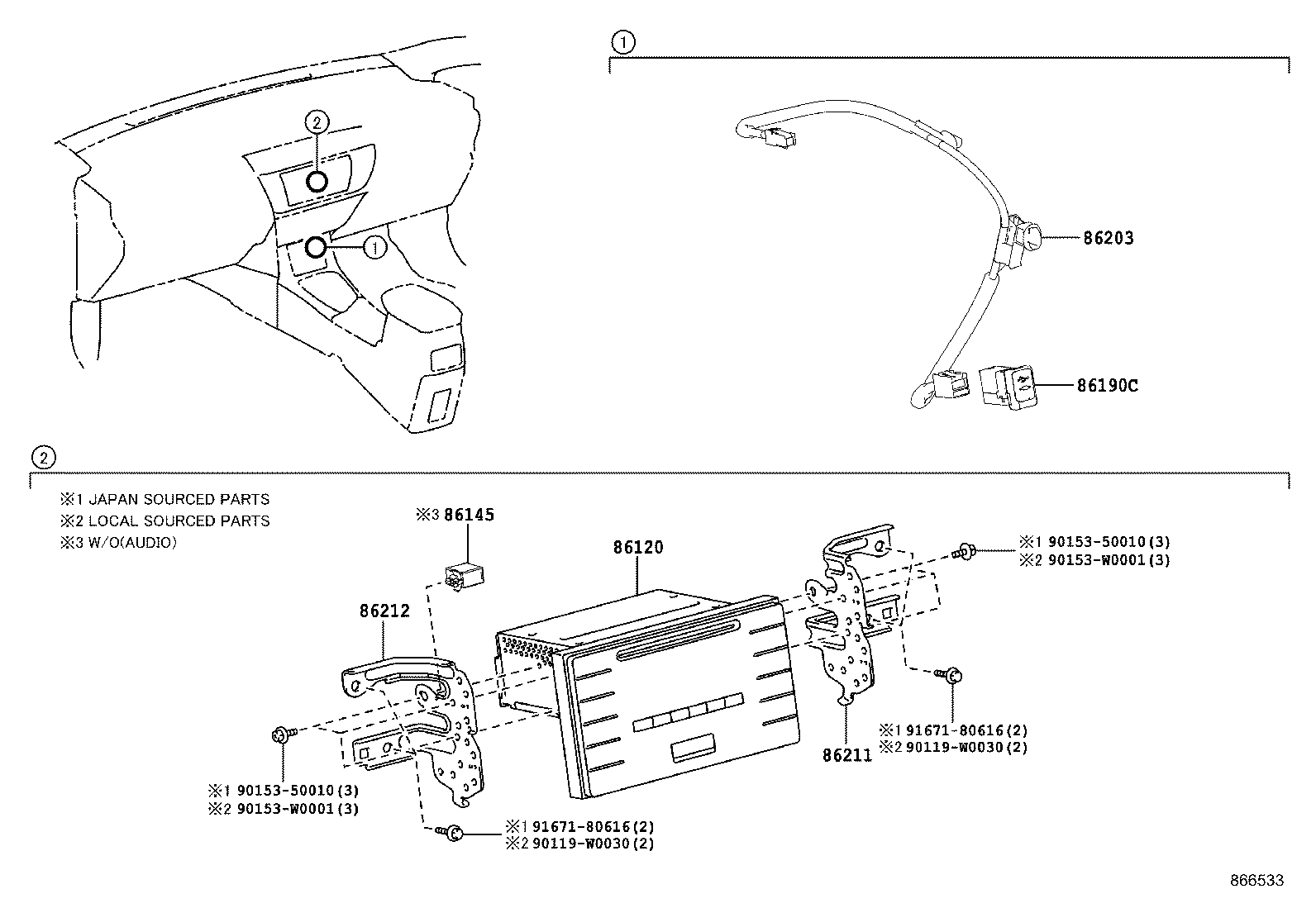

ILLUST NO. 1 OF 2(1606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-02F70 |
NDE180,NRE180,ZRE18#..LHD..D PANASONIC,ID=53883 |
1 | ||
| 86120-02F70 |
NDE180,NRE180,ZRE18#..LHD..D PANASONIC,ID=53883,AUDIO-RADIOLESS 4SPEAKER |
1 | ||
| 86120-02F80 |
NDE180,NRE180,ZRE18#..N PANASONIC,ID=53885 |
1 | ||
| 86120-02F70 |
NDE180,NRE180,ZRE18#..LHD..D PANASONIC,ID=53883,AUDIO-RADIOLESS & SPEAKERLESS |
1 | ||
| 86120-02F80 |
NDE180,NRE180,ZRE18#..N PANASONIC,ID=53885,AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 86120-02J90 |
NDE180,NRE180,ZRE181..(D,N)..EUR PANASONIC,ID=510185,AUDIO(OVERSEAS MARKET)-RADIOLESS & SPEAKERLESS |
1 | ||
| 86120-02J90 |
NDE180,NRE180,ZRE181..LHD..D..EUR PANASONIC,ID=510185,LIGHT GRADE |
1 | ||
| 86120-02F80 |
NDE180,NRE180,ZRE18#..N PANASONIC,ID=53885,AUDIO-RADIOLESS & SPEAKERLESS |
1 | ||
| 86120-02J90 |
NRE180..D..EUR;NDE180,ZRE182..D,N;ZRE181..(D,N)..EUR;NRE180,ZRE181..N..HTWC PANASONIC,ID=510185 |
1 | ||
| 86120-02J91 |
ZRE181..N..RUS;ZRE181..(D,N)..EUR;NDE180,ZRE182..D,N PANASONIC,ID=510321 |
1 | ||
| 86120-02J91 |
NDE180,ZRE181..(D,N)..EUR PANASONIC,ID=510321,AUDIO(OVERSEAS MARKET)-RADIOLESS & SPEAKERLESS |
1 | ||
| 86120-02J91 |
NDE180,ZRE181..LHD..6F..D..EUR PANASONIC,ID=510321,LIGHT GRADE |
1 | ||
| 86145 - CONNECTOR, ANTENNA MALE | ||||
| 86145-52010 |
ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 86145-52010 |
NDE180,NRE180,ZRE18#..LHD..D AUDIO-RADIOLESS 4SPEAKER |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-0D030 |
ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 86190-0D030 |
NDE180,NRE180,ZRE18# |
1 | ||
| 86190-0D030 |
NDE180,ZRE18#..N;NDE180,ZRE181..RHD AUDIO(OVERSEAS MARKET)-*DA & CD & *BT & USB & 6SPEAKER |
1 | ||
| 86190-0D030 |
NDE180,NRE180,ZRE18# AUDIO-RADIOLESS & SPEAKERLESS |
1 | ||
| 86190-0D030 |
NDE180,NRE180,ZRE18#..D AUDIO-RADIOLESS 4SPEAKER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-12500 |
NDE180,NRE180,ZRE18# |
1 | ||
| 86203-12500 |
ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 86203-12500 |
NDE180,NRE180,ZRE18#..D AUDIO-RADIOLESS 4SPEAKER |
1 | ||
| 86203-12500 |
NDE180,ZRE18#..N;NDE180,ZRE181..RHD AUDIO(OVERSEAS MARKET)-*DA & CD & *BT & USB & 6SPEAKER |
1 | ||
| 86203-12500 |
NDE180,NRE180,ZRE18# AUDIO-RADIOLESS & SPEAKERLESS |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-02300 |
NDE180,NRE180,ZRE18# |
1 | ||
| 86211-02440 |
NDE180,NRE180,ZRE18# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-02290 |
NDE180,NRE180,ZRE18# |
1 | ||
| 86212-02430 |
NDE180,NRE180,ZRE18# |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90153-50010 | ||||
| 90153-W0001 | ||||
| 91671-80616 | ||||
