ZRE181L-DEFGPW (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )

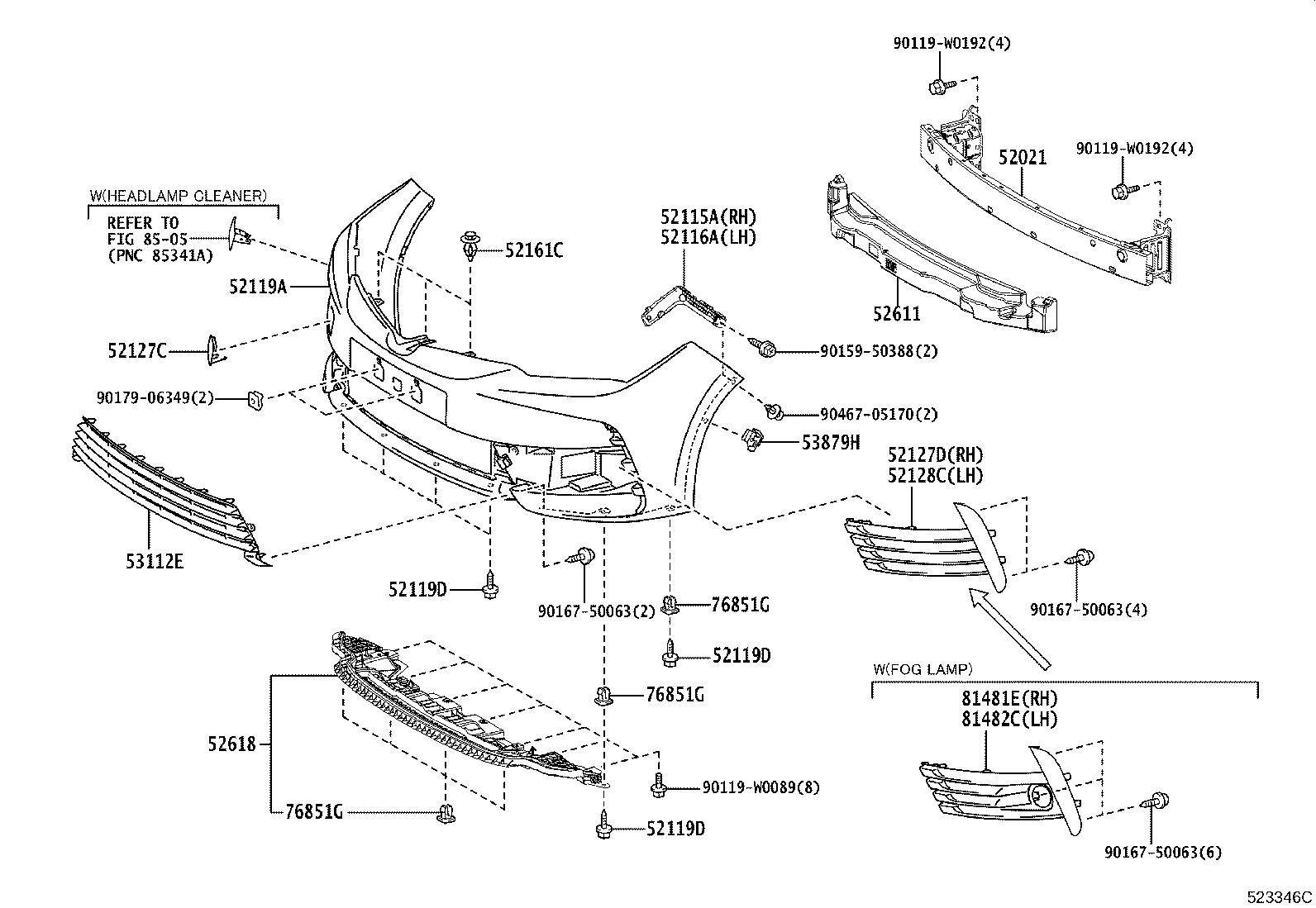

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52119D 52119D 52119D 52127C 52127D 52128C 52161C 52611 52618 53112E 53879H 76851G 76851G 76851G 81481E 81482C 8505 90119W0089 90119W0192 90119W0192 9015950388 9016750063 9016750063 9016750063 9017906349 9046705170
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02230

NDE180,NRE180,ZRE18#

 1
52021-02310

NDE180,ZRE18#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02250

NDE180,NRE180,ZRE18#

 1
52115-02360

NDE180,ZRE18#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02250

NDE180,NRE180,ZRE18#

 1
52116-02350

NDE180,ZRE18#

 1
52119A - COVER, FRONT BUMPER
52119-0Z927

NDE180,NRE180,ZRE18#

PAINT REQ.

 1
52119-0Z928

NDE180,NRE180,ZRE18#

PAINT REQ.,HEADLAMP CLEANER-WITH

 1
52119-0Z970

NDE180,ZRE18#..D,N

PAINT REQ.

 1
52119-0Z970

NDE180..6F..G;ZRE181..G..EUR

PAINT REQ.,HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITHOUT

 1
52119-0Z971

NDE180,ZRE18#..D,N

PAINT REQ.,HEADLAMP CLEANER-WITH

 1
52119-0Z970

NDE180..6F..G;ZRE181..G..EUR

PAINT REQ.,HEADLAMP CLEANER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT

 1
52119-0Z973

NDE180..6F..G;ZRE181..G..EUR

PAINT REQ.,HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
52119-0Z973

NDE180..6F..G;ZRE181..G..EUR

PAINT REQ.,HEADLAMP CLEANER-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
52119-0Z972

NDE180..6F..G;ZRE181..G..EUR

PAINT REQ.,HEADLAMP CLEANER-WITHOUT

 1
52119-0Z971

NDE180,ZRE181..G..EUR

PAINT REQ.,FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITHOUT

 1
52119-0Z971

NDE180,ZRE181..G..EUR

PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT

 1
52119-0Z972

NDE180..6F..G;ZRE181..G..EUR

PAINT REQ.,HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)

 1
52119-0Z975

NDE180,ZRE181..G

PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
52119-0Z975

NDE180,ZRE181..G..EUR

PAINT REQ.,FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
52119-0Z974

NDE180,ZRE181..G

PAINT REQ.

 1
52119D - SCREW, NO.1
90159-60488

NDE180,NRE180,ZRE18#

 8
90159-60488

NDE180,NRE180,ZRE18#

 8
52119D - SCREW, NO.1
90159-60488

NDE180,NRE180,ZRE18#

 8
90159-60488

NDE180,NRE180,ZRE18#

 8
52119D - SCREW, NO.1
90159-60488

NDE180,NRE180,ZRE18#

 8
90159-60488

NDE180,NRE180,ZRE18#

 8
52127C - COVER, FRONT BUMPER HOLE
52127-02930

NDE180,ZRE18#

 1
52127-02921

NDE180,NRE180,ZRE18#

 1
52127D - COVER, FRONT BUMPER HOLE, RH
81481-02370

NDE180,NRE180,ZRE18#..LHD..D

 1
81481-02610

NDE180..6F..G;ZRE181..G..EUR

HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
81481-02610

NDE180,ZRE181..LHD..D

 1
81481-02610

NDE180,ZRE181..(G,N)..EUR

FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
81481-02610

NDE180..6F..G;ZRE181..G..EUR

HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITHOUT

 1
81481-02610

NDE180,ZRE181..RHD;NDE180,ZRE181..(G,N)..EUR

FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)

 1
81481-02610

NDE180..6F..G;ZRE181..G..EUR

HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)

 1
81481-02610

NDE180,ZRE181..G..EUR

FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITHOUT

 1
52128C - COVER, FRONT BUMPER HOLE, LH
81482-02360

NDE180,NRE180,ZRE18#..LHD..D

 1
81482-02600

NDE180,ZRE181..LHD..D

 1
81482-02600

NDE180..6F..G;ZRE181..G..EUR

HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)

 1
81482-02600

NDE180,ZRE181..G..EUR

FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITHOUT

 1
81482-02600

NDE180,ZRE181..RHD;NDE180,ZRE181..(G,N)..EUR

FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)

 1
81482-02600

NDE180,ZRE181..(G,N)..EUR

FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
81482-02600

NDE180..6F..G;ZRE181..G..EUR

HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)

 1
81482-02600

NDE180..6F..G;ZRE181..G..EUR

HEADLAMP CLEANER-WITHOUT&FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)&CLEARANCE & BACK SONAR-WITHOUT

 1
52161C - PIECE, FRONT BUMPER
52161-02030

NDE180,NRE180,ZRE18#

 3
52161-02030

NDE180,ZRE18#

 3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02290

NDE180,NRE180,ZRE18#

 1
52611-02390

NDE180,ZRE18#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-02070

NDE180,NRE180,ZRE18#

 1
52618-02071

NDE180,NRE180,ZRE18#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02470

NDE180,NRE180,ZRE18#

NO PAINT REQ.

 1
53112-02690

NDE180,ZRE18#..D,N

NO PAINT REQ.

 1
53112-02700

NDE180,ZRE18#..G

NO PAINT REQ.

 1
53879H - RETAINER, FRONT FENDER LINER
53879-50020

NDE180,NRE180,ZRE18#

 2
53879-50020

NDE180,NRE180,ZRE18#

 2
76851G - GROMMET, SCREW, NO.1
90189-06237

NDE180,NRE180,ZRE18#

 4
90189-06237

NDE180,NRE180,ZRE18#

 4
76851G - GROMMET, SCREW, NO.1
90189-06237

NDE180,NRE180,ZRE18#

 4
90189-06237

NDE180,NRE180,ZRE18#

 4
76851G - GROMMET, SCREW, NO.1
90189-06237

NDE180,NRE180,ZRE18#

 4
90189-06237

NDE180,NRE180,ZRE18#

 4
81481E - COVER, FOG LAMP, RH
81481-02630

NDE180,ZRE18#..G

 1
81482C - COVER, FOG LAMP, LH
81482-02620

NDE180,ZRE18#..G

 1
Common parts
90119-W0089
90119-W0192
90159-50388
90167-50063
90179-06349
90467-05170
