ZRE181L-DEFDPW (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 7(1606- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

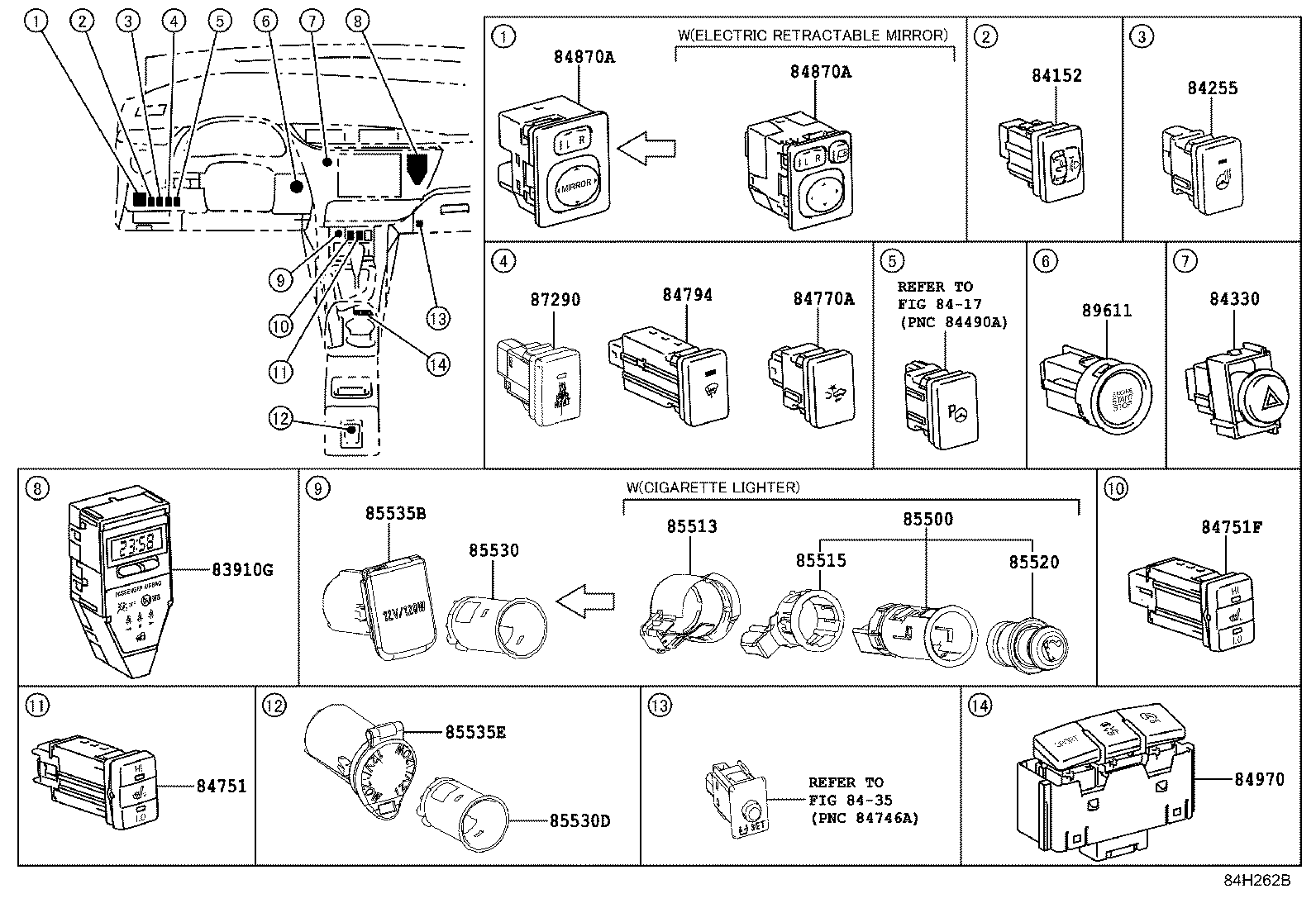

diagram 83910G 84152 8417 84255 84330 8435 84751 84751F 84770A 84794 84870A 84870A 84970 85500 85513 85515 85520 85530 85530D 85535B 85535E 87290 89611
Part # Description Qty Price
83910G - CLOCK ASSY
83910-02200

NDE180,NRE180,ZRE181..EUR

 1
83910-12630

NDE180,NRE180,ZRE18#

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-02080

NDE180,NRE180,ZRE18#

 1
84152-02080

NDE180,NRE180,ZRE18#..D,N

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02210

NDE180,NRE180,ZRE18#..LHD

 1
84332-02300

NDE180,ZRE18#

 1
84751 - SWITCH, SEAT HEATER
84751-12100

NDE180,ZRE182..N;NRE180,ZRE181..LHD

SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))

 1
84751-12102

ZRE181..LHD;NDE180,ZRE182..G,N

SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))

 1
84751F - SWITCH, SEAT HEATER
84751-12112

ZRE181..LHD;NDE180,ZRE182..G,N

SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))

 1
84751-12110

NDE180,ZRE182..N;NRE180,ZRE181..LHD

SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-02090C0

NDE180,NRE180,ZRE18#

BLACK

 1
84870-02090C0

NDE180,ZRE18#..D,N

BLACK

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-02090C0

NDE180,NRE180,ZRE18#

BLACK

 1
84870-02090C0

NDE180,ZRE18#..D,N

BLACK

 1
84970 - SWITCH ASSY, COMBINATION
84970-02130

NDE180,ZRE181..6F

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-59015

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85500-59015

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85500-59015

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85500-59015

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85513 - COVER, CIGARETTE LIGHTER
85513-12030

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85513-12030

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85513-12030

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85513-12030

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-12140

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85515-12140

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85515-12140

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85515-12140

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85520-28010

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85520-28010

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85520-28010

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-42010

NDE180,NRE180,ZRE18#

ASH TRAY-WITH

 1
85530-42010

NDE180,NRE180,ZRE18#

 1
85530-42010

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85530-42010

NDE180,NRE180,ZRE18#

 1
85530-42010

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-42010

NDE180,NRE180,ZRE18#..D

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85530-42010

NDE180,ZRE181..D

POWER OUTLETS-SOCKET(FRONT & REAR)

 1
85530-42010

ZRE181..6F..D..EUR

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-50020

NDE180,NRE180,ZRE18#

 1
85535-12090C0

NDE180,NRE180,ZRE18#

ASH TRAY-WITH,BLACK,TRIM0#,2#

 1
85535-12090C0

NDE180,NRE180,ZRE18#

BLACK,TRIM0#,2#

 1
85535-12090C0

NDE180,NRE180,ZRE18#

POWER OUTLETS-CIGARETTE LIGHTER ONLY,BLACK,TRIM0#,2#

 1
85535-50020

ZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR

POWER OUTLETS-CIGARETTE LIGHTER ONLY

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-30020

NDE180,NRE180,ZRE18#..D

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
85535-30020

NDE180,ZRE181..D

POWER OUTLETS-SOCKET(FRONT & REAR)

 1
85535-30020

ZRE181..6F..D..EUR

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY)

 1
