ZRE181L-DEFDKX (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )

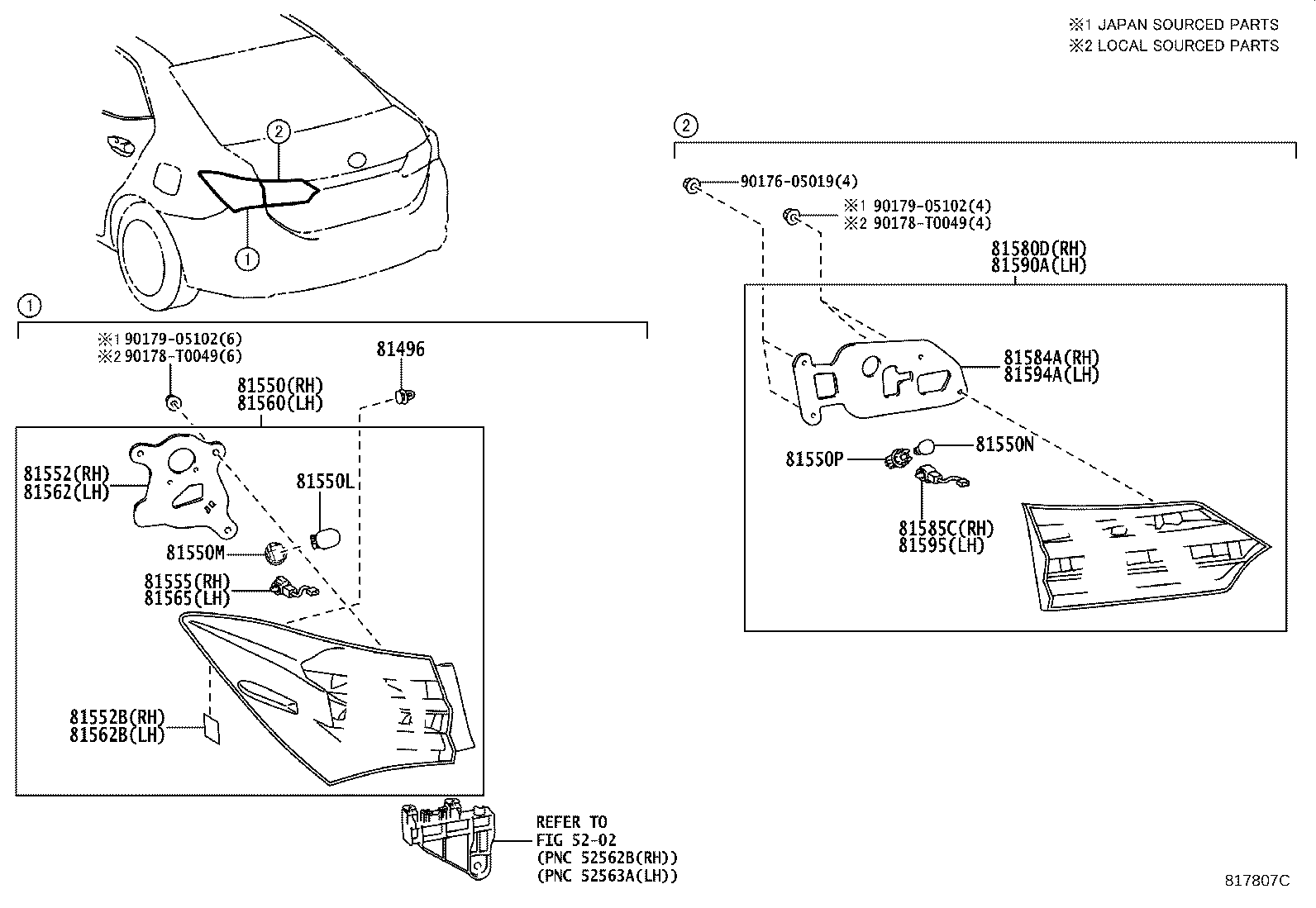

Click highlighted areas on diagram

LED TYPE(STOP LAMP)

diagram 5202 81496 81550 81550L 81550M 81550N 81550P 81552 81552B 81555 81560 81562 81562B 81565 81580D 81584A 81585C 81590A 81594A 81595 9017605019 90178T0049 90178T0049 9017905102 9017905102
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

NDE180,ZRE18#

 2
81496-60010

NDE180,NRE180,ZRE18#

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

NDE180,NRE180,ZRE18#

12V 21W,AMBER

 2
90981-15021

NDE180,ZRE18#

12V 21W,AMBER

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60026

NDE180,NRE180,ZRE18#

 2
90075-60026

NDE180,ZRE18#

 2
81550N - BULB, BACK UP LAMP
90981-11059

NDE180,NRE180,ZRE18#

12V 16W

 2
90981-11059

NDE180,NRE180,ZRE18#

12V 16W,(J)

 2
90981-WB019

NDE180,NRE180,ZRE18#

12V 16W,(L)

 2
81550P - SOCKET, BACK UP LAMP
90075-60001

NDE180,ZRE18#

 2
90075-60001

NDE180,NRE180,ZRE18#

 2
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-02760

NDE180,ZRE181..D

 1
81552-02760

NDE180,NRE180,ZRE18#

 1
81552B - PACKING, REAR COMBINATION LAMP BODY, RH
81554-02760

NDE180,ZRE18#

 1
81554-02760

NDE180,NRE180,ZRE18#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-02760

NDE180,NRE180,ZRE18#

 1
81562-02760

NDE180,ZRE181..D

 1
81562B - PACKING, REAR COMBINATION LAMP BODY, LH
81554-02760

NDE180,NRE180,ZRE18#

 1
81554-02760

NDE180,ZRE18#

 1
81584A - GASKET, REAR LAMP RH
81584-02520

NDE180,NRE180,ZRE18#

 1
81584-02520

NDE180,ZRE181..D

 1
81594A - GASKET, REAR LAMP LH
81594-02520

NDE180,NRE180,ZRE18#

 1
81594-02520

NDE180,ZRE181..D

 1
Common parts
90176-05019
90178-T0049
90179-05102
Linked diagrams
5202
