ZRE181L-DEFDKW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )1ZRFE,2ZRFE ; (1306- )1ZRFAE..G,N; (1306- )1ZRFAE..RHD ; (1306-

Click highlighted areas on diagram

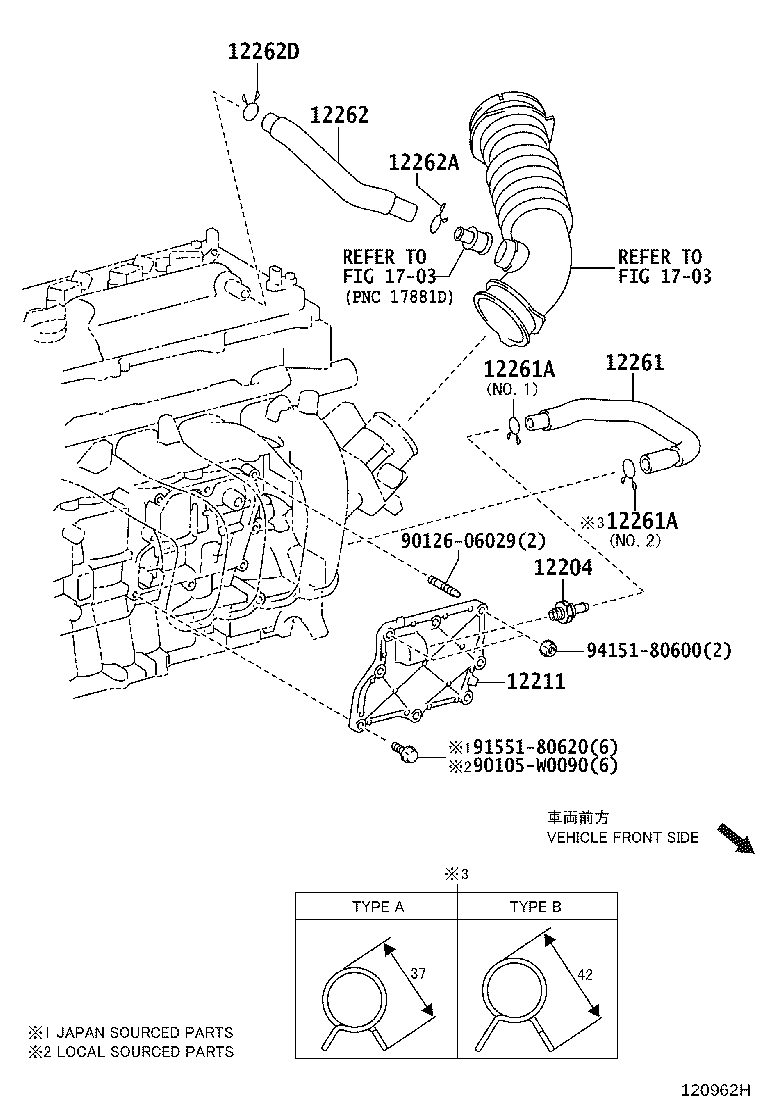

diagram 12204 12211 12261 12261A 12261A 12262 12262A 12262D 1703 1703 90105W0090 9012606029 9155180620 9415180600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-37010

1ZR#,2ZRFE..ZRE18#

 1
12211 - CASE, VENTILATION, NO.1
12211-0T010

1ZR#,2ZRFE..ZRE18#

(L)

 1
12211-37010

1ZR#,2ZRFE..ZRE18#

(J)

 1
12261 - HOSE, VENTILATION
12261-37040

1ZRFE..ZRE181

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1ZR#,2ZRFE..ZRE18#

NO.1

 1
90467-23002

1ZR#,2ZRFE..ZRE18#

NO.2,TYPE A:REF ILL.

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1ZR#,2ZRFE..ZRE18#

NO.1

 1
90467-23002

1ZR#,2ZRFE..ZRE18#

NO.2,TYPE A:REF ILL.

 1
12262 - HOSE, VENTILATION, NO.2
12262-37020

1ZRFE..ZRE181

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

1ZR#,2ZRFE..ZRE18#

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

1ZR#,2ZRFE..ZRE18#

 1
Common parts
90105-W0090
90126-06029
91551-80620
94151-80600
Linked diagrams
1703
