TE72R-ELPESN (1982)

Toyota Corolla

Production Apr 1982 - Jan 1984
Engine 3T
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8406)LB

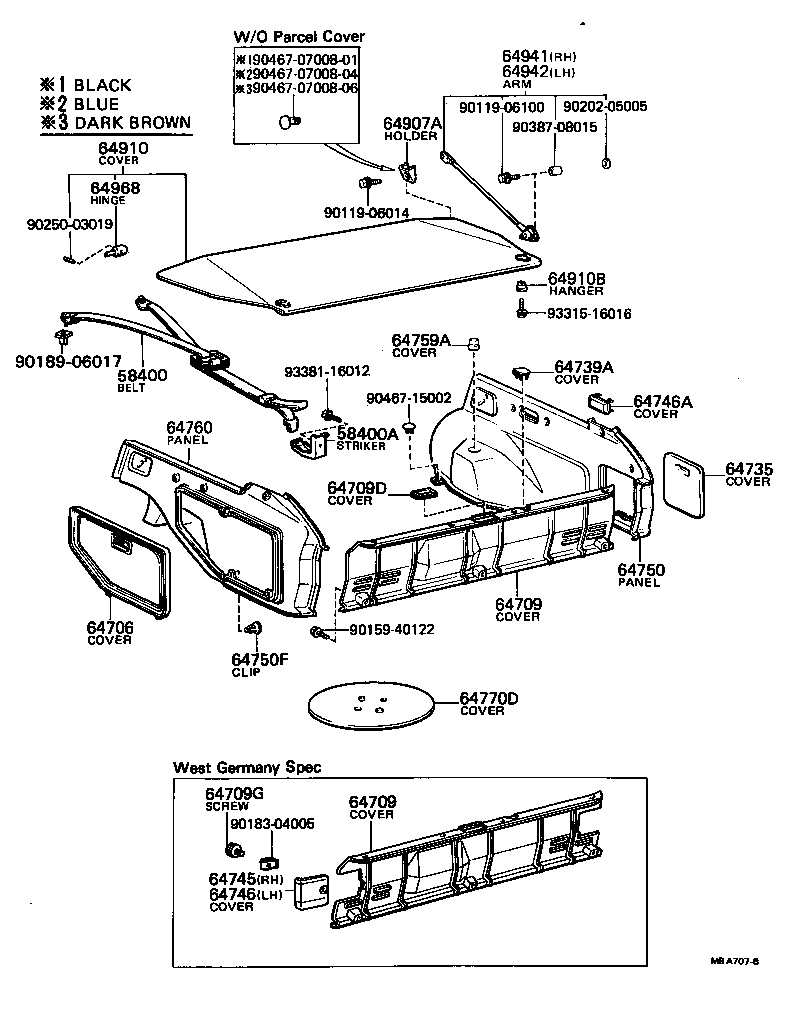

Click highlighted areas on diagram

diagram 58400 58400A 64706 64709 64709 64709D 64709G 64735 64739A 64745 64746 64746A 64750 64750F 64759A 64760 64770D 64907A 64910 64910B 64941 64942 64968 9011906014 9011906100 9015940122 9018304005 9018906017 9020205005 9025003019 9038708015 904670700801 904670700804 904670700806 9046715002 9331516016 9338116012
Part # Description Qty Price
64706 - COVER SUB-ASSY, QUARTER TRIM, JACK
64707-1202006

KE70,TE7#..CP,LB

DARK BROWN,BROWN,TRIM4#

 1
64709 - COVER SUB-ASSY, LOWER BACK PANEL
64706-1202004

KE70,TE7#..LB

BLUE,BLUE,TRIM8#

 1
64706-1202006

KE70,TE7#..LB

DARK BROWN,DARK BROWN,TRIM4#

 1
64706-1202001

KE70,TE7#..LB

BLACK,BLACK,TRIM0#,2#

 1
64716-1203001

KE70,TE7#..LB

BLACK,BLACK,TRIM0#,2#

 1
64709 - COVER SUB-ASSY, LOWER BACK PANEL
64706-1202004

KE70,TE7#..LB

BLUE,BLUE,TRIM8#

 1
64706-1202006

KE70,TE7#..LB

DARK BROWN,DARK BROWN,TRIM4#

 1
64706-1202001

KE70,TE7#..LB

BLACK,BLACK,TRIM0#,2#

 1
64716-1203001

KE70,TE7#..LB

BLACK,BLACK,TRIM0#,2#

 1
64709D - COVER, BACK DOOR STRIKER
64749-1202006

KE70,TE7#..CP,LB

DARK BROWN,BROWN,TRIM4#

 1
64735 - COVER, DECK TRIM SIDE SERVICE HOLE
64735-1202006

KE70,TE7#..LB

DARK BROWN,BROWN,TRIM4#

 1
64739A - COVER, DECK TRIM REAR WASHER
64739-1202006

KE70,TE7#..LB..(EUR,GEN,SA,SAA)

DARK BROWN,BROWN,TRIM4#

 1
64750 - PANEL ASSY, DECK SIDE TRIM, RH
64731-1290106

TE72..SE,XE;KE70,TE71..LB

W/TONNEAU COVER,DARK BROWN,BROWN,TRIM4#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-1000516

KE70,TE7#..CP,LB

DARK BROWN,BROWN,TRIM4#

 11
64759A - COVER, SHOCK ABSORBER HEAD
64759-1401046

KE70,TE7#..CP,LB

DARK BROWN,BROWN,TRIM4#

 2
64760 - PANEL ASSY, DECK SIDE TRIM, LH
64732-1290106

TE72..SE,XE;KE70,TE71..LB

W/TONNEAU COVER,DARK BROWN,BROWN,TRIM4#

 1
64770D - COVER ASSY, SPARE WHEEL
64770-20030

KE70,TE7#..CP,LB

 1
64907A - HOLDER SUB-ASSY, TONNEAU COVER
64907-1201006

TE72..SE,XE;KE70,TE71..LB

DARK BROWN,BROWN,TRIM4#

 2
64910 - COVER ASSY, PARCEL
64902-1205001

TE72..SE;KE70,TE71..LB

BLACK,BLACK,TRIM0#,2#

 1
64902-1205006

TE72..SE,XE;KE70,TE71..LB

DARK BROWN,BROWN,TRIM4#

 1
64910B - HANGER, PARCEL COVER
64931-1202006

KE70,TE7#..LB

DARK BROWN,BROWN,TRIM4#

 2
64941 - ARM SUB-ASSY, TONNEAU COVER LIFT, RH
64905-12020

TE72..SE,XE;KE70,TE71..LB

 1
64942 - ARM SUB-ASSY, TONNEAU COVER LIFT, LH
64906-12030

TE72..SE,XE;KE70,TE71..LB

 1
64968 - HINGE, TONNEAU COVER, NO.4
64968-12010

KE70,TE7#..LB

 2
Common parts
90119-06014
90119-06100
90159-40122
90183-04005
90189-06017
90202-05005
90250-03019
90387-08015
90467-0700801
90467-0700804
90467-0700806
90467-15002
93315-16016
93381-16012
