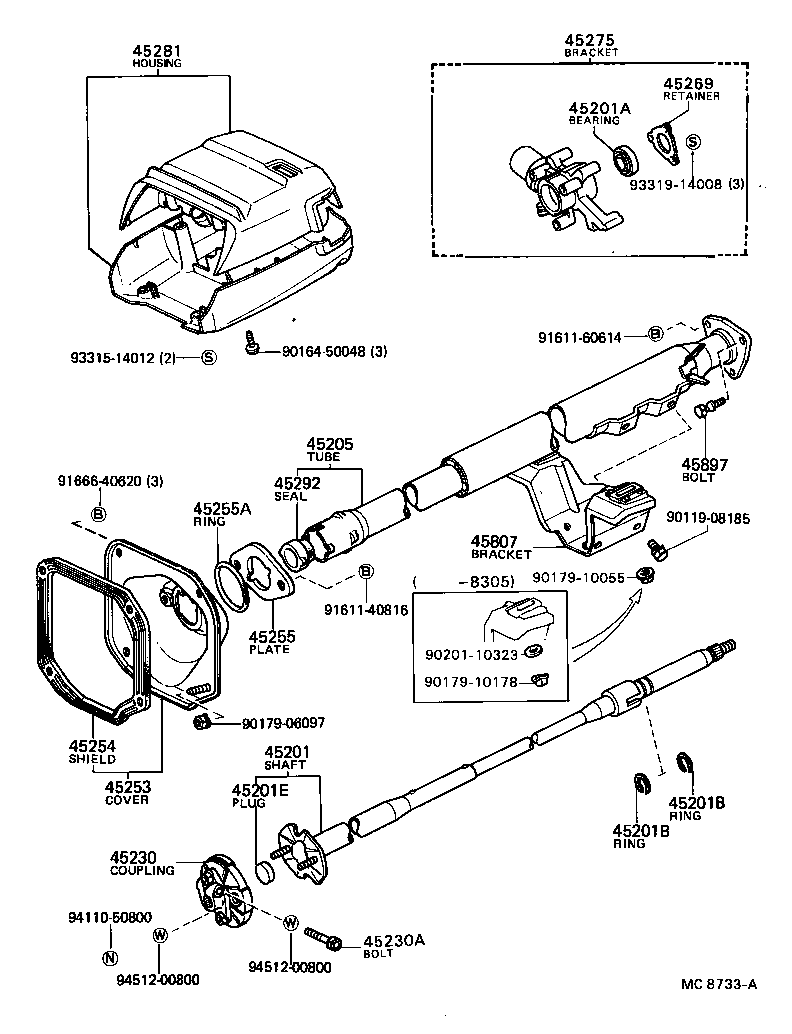

TE72L-ELMDCC (1979)
Toyota Corolla
(7908-8108)DV,WG..EUR ; (7908-8108)KE70..CP,LB,SED ; (8108-8410)KE70..CP,LB,SED ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12070 |
TE7#;KE70..(DV,WG)..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12070 |
TE7#;KE70..(DV,WG)..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12080 |
TE7#..LHD;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45870-12080 |
TE7#..LHD;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12080 |
TE7#..LHD |
1 | ||
| 45025-12080 |
TE7#..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12040 |
CE70,TE7#..LHD |
1 | ||
| 45254-12040 |
CE70,TE7#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45255-12020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 90301-45202 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12080 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45807-12080 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| Common parts | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10055 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91666-40620 | ||||
| 93315-14008 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7908-8108)TE7#..LHD ; (7908-8108)TE71..RHD..EUG; (7908- )KE70..DV,WG..LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12070 |
TE7#;KE70..(DV,WG)..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12070 |
TE7#;KE70..(DV,WG)..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 90333-21008 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12080 |
TE7#..LHD;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45870-12080 |
TE7#..LHD;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45230-14020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08047 |
CE70,TE7#;KE70..(DV,WG)..(GEN,SAA) |
1 | ||
| 90101-08047 |
CE70,TE7#;KE70..(DV,WG)..(GEN,SAA) |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12080 |
TE7#..LHD |
1 | ||
| 45025-12080 |
TE7#..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12040 |
CE70,TE7#..LHD |
1 | ||
| 45254-12040 |
CE70,TE7#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45255-12020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 90301-45202 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45292-22050 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12080 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45807-12080 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10055 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8108- )CE70,TE7#..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12070 |
TE7#;KE70..(DV,WG)..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12080 |
TE7#..LHD;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08047 |
CE70,TE7#;KE70..(DV,WG)..(GEN,SAA) |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12080 |
TE7#..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12040 |
CE70,TE7#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212006 |
KE70,TE7#..(CP,LB)..LHD UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209006 |
KE70,TE7#..(CP,LB)..LHD LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12080 |
TE71..LHD;CE70,TE72..EUR;TE71..RHD..EUG W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10055 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
