TE72L-ELMDCC (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1982
Engine
3TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

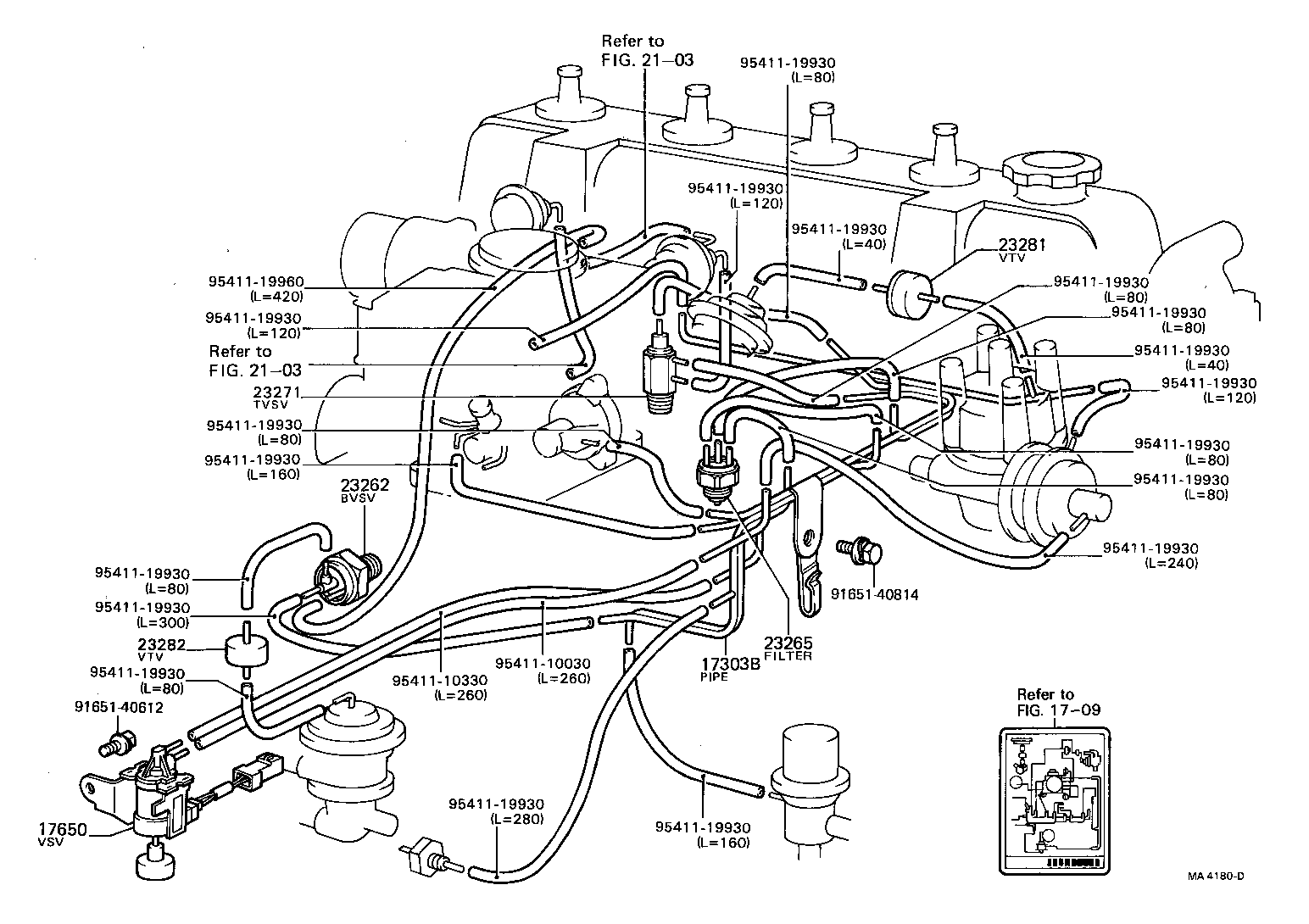

(7908-8010)3TC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-28030 |
3TC..TE72 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12130 |
3TC..TE72 TCS |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05050 |
3TC..TE72 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3TC..TE72 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02048 |
2T,3T#..TE7# |
1 | ||
| 90925-02048 |
2T,3T..TE7# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01075 |
3TC..TE72 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01066 |
3TC..TE72 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 95411-10030 | ||||
| 95411-10330 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||

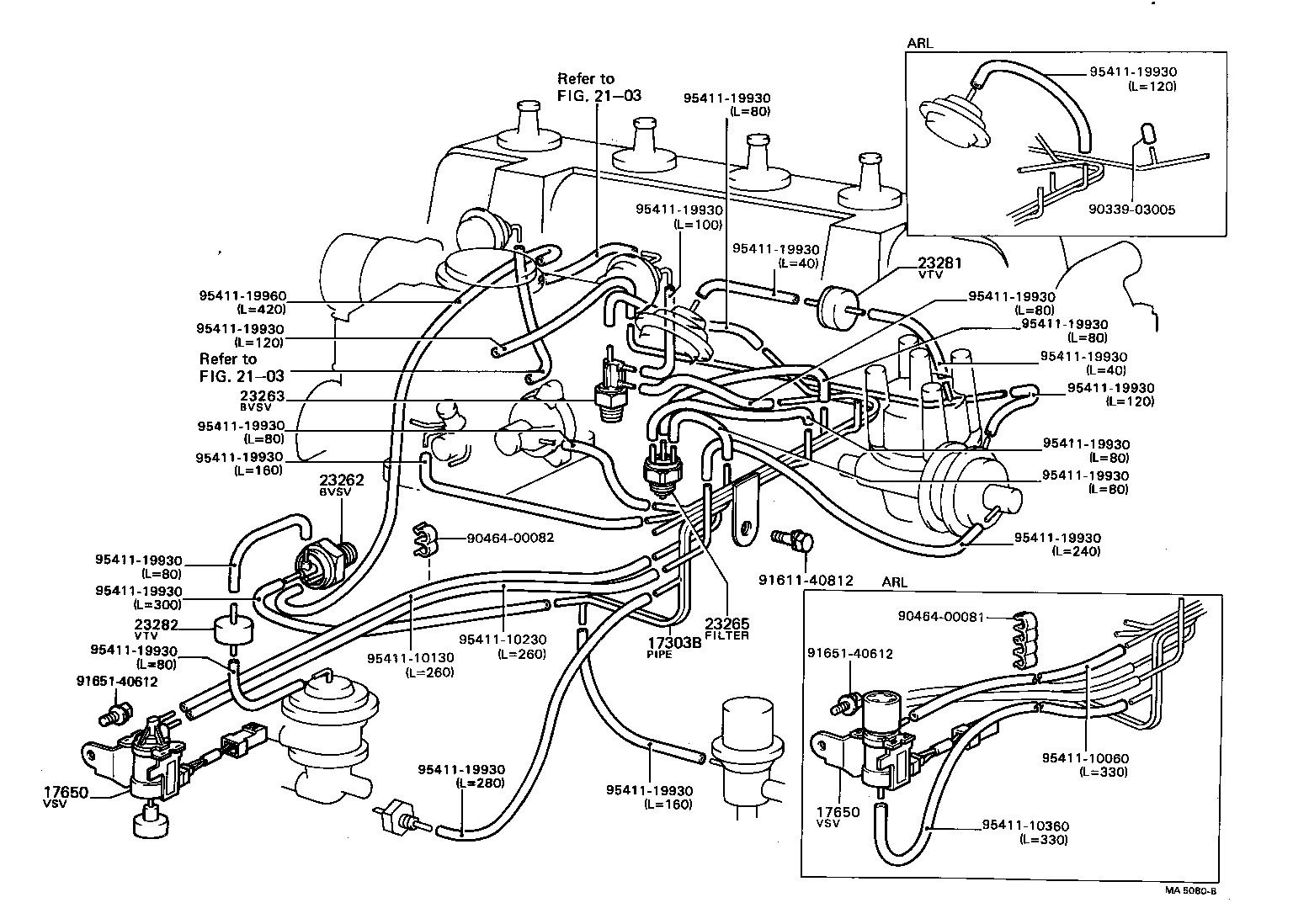

(8010-8208)3TC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-28030 |
3TC..TE72 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12130 |
3TC..TE72 TCS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12130 |
3TC..TE72 TCS |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05050 |
3TC..TE72 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3TC..TE72 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01075 |
3TC..TE72 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01066 |
3TC..TE72 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 91611-40812 | ||||
| 91651-40612 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(7908- )2T#,3T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
