TE72L-ELMDCC (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1982
Engine
3TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8305)3TC

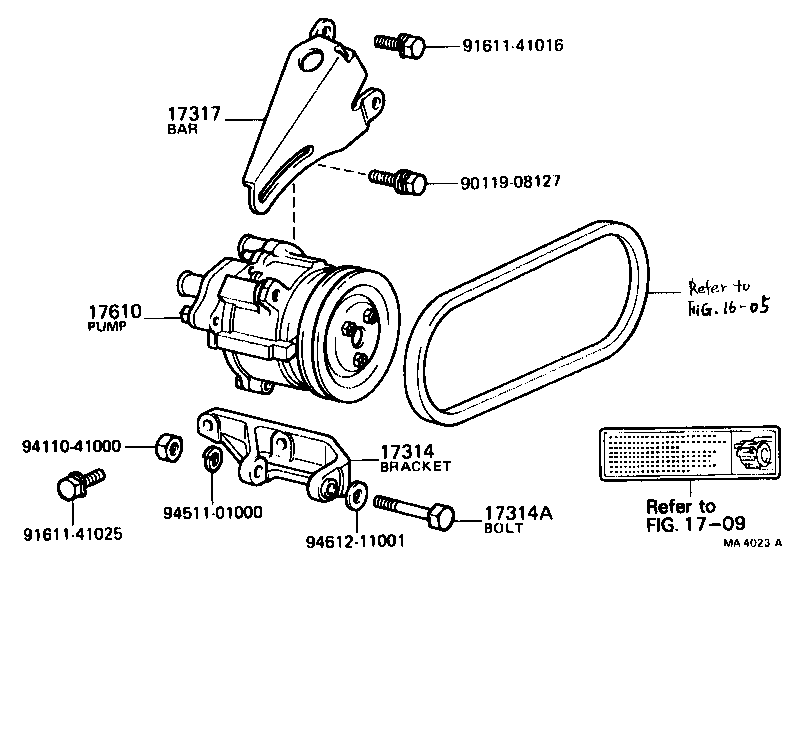

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314 - BRACKET, AIR PUMP | ||||
| 17314-26022 |
3TC..TE72 |
1 | ||
| 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) | ||||
| 90101-10402 |
3TC..TE72 |
1 | ||
| 17317 - BAR, AIR PUMP ADJUSTING, NO.1 | ||||
| 17317-26021 |
3TC..TE72 |
1 | ||
| 17610 - PUMP ASSY, AIR | ||||
| 17610-26030 |
3TC..TE72 |
1 | ||
| Common parts | ||||
| 90119-08127 | ||||
| 91611-41016 | ||||
| 91611-41025 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1709 | ||||
