TE72L-ELKDCC (1979)
Toyota Corolla

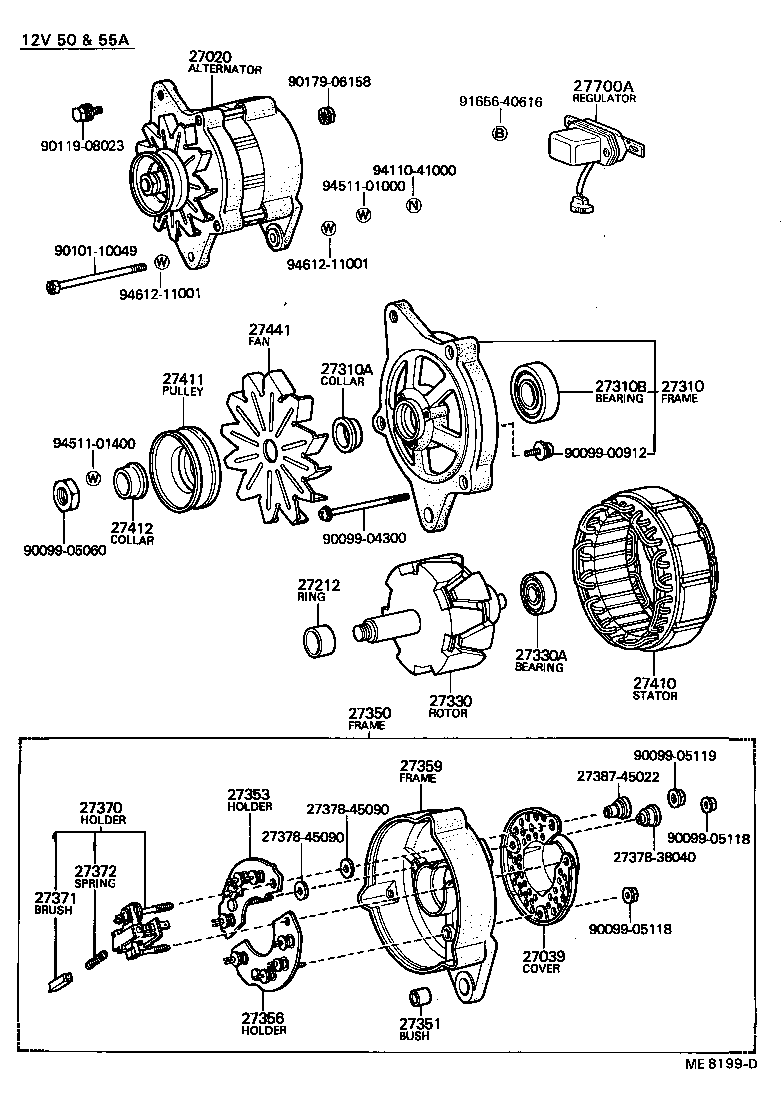

(7908-7910)2TG ; (7908-8004)3TC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15030 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27039-36070 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27039-36070 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27212-39050 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27310-18010 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
4K#,2T#,3T#..KE70,TE7# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 90099-10126 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27330-45070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 90099-10111 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 90099-10111 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-45070 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
4K#,2T#,3T#..KE70,TE7# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-45070 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27359-45081 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27359-45081 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-45061 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27370-45061 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
4K,2T#,3TC..KE70,TE7# 12V 40A,45A |
2 | ||
| 27371-31011 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
2 | ||
| 27371-31011 |
3TC..TE72..SDN 12V 55A |
2 | ||
| 27371-44070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3TC..TE72..SDN 12V 55A |
2 | ||
| 90099-17114 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
2 | ||
| 27372-31011 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
2 | ||
| 27372-31011 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27410-15030 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
2T,2TB,3T#..TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||

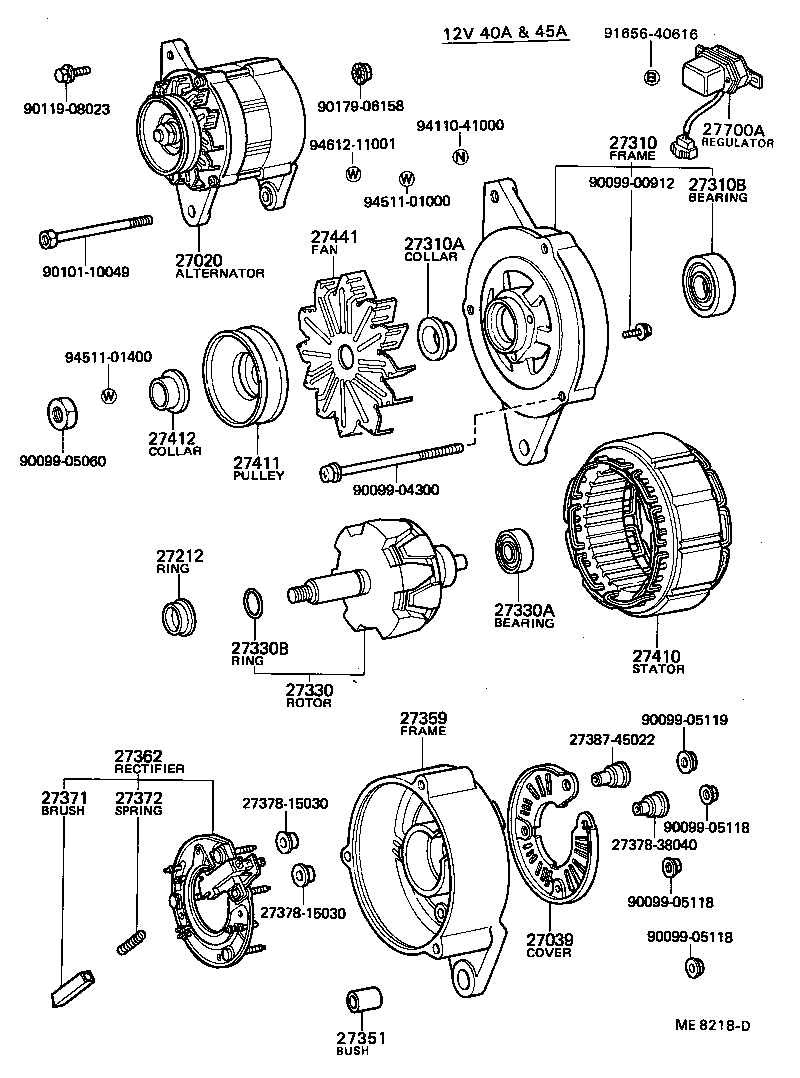

(7908-8502)2T#,3T#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15030 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27039-36070 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27039-36070 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27212-39050 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27310-18010 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
4K#,2T#,3T#..KE70,TE7# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 90099-10126 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27330-45070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 90099-10111 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 90099-10111 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
4K#,2T#,3T#..KE70,TE7# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27359-45081 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27359-45081 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15030 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27362-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
4K,2T#,3TC..KE70,TE7# 12V 40A,45A |
2 | ||
| 27371-31011 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
2 | ||
| 27371-31011 |
3TC..TE72..SDN 12V 55A |
2 | ||
| 27371-44070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3TC..TE72..SDN 12V 55A |
2 | ||
| 90099-17114 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
2 | ||
| 27372-31011 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
2 | ||
| 27372-31011 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27410-15030 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
2T,2TB,3T#..TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||

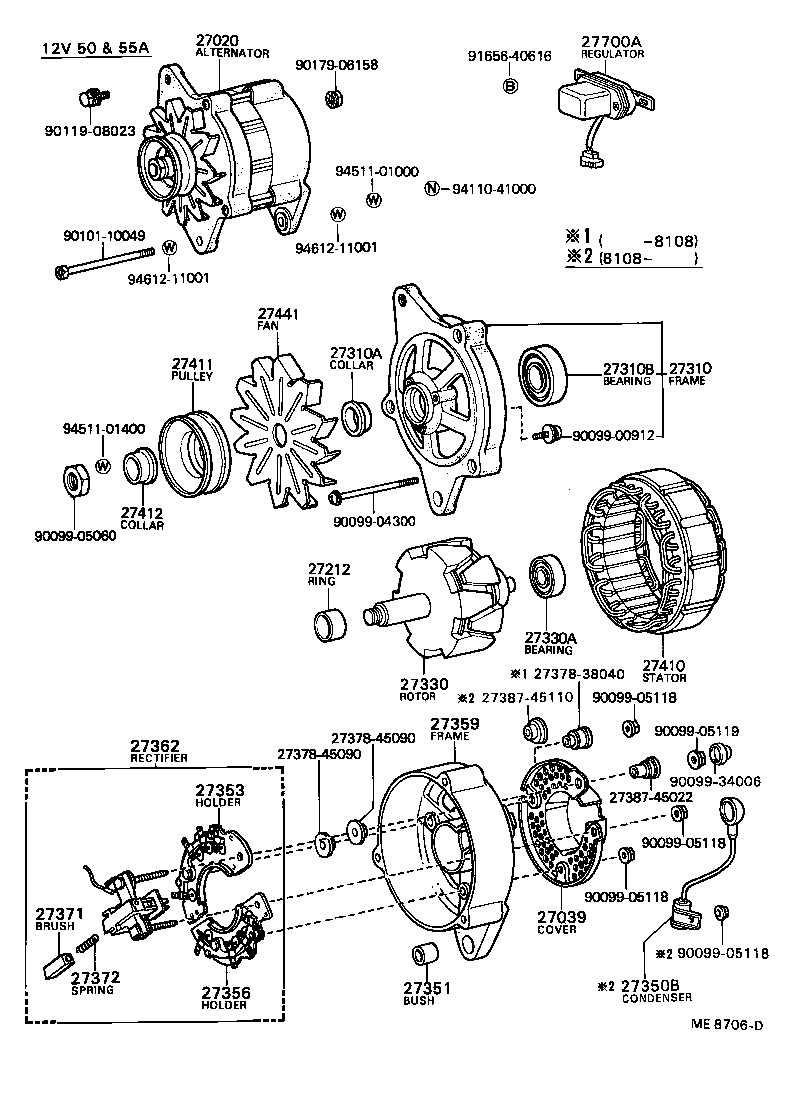

(7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305)3TC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15030 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27039-36070 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27039-36070 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27212-39050 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27310-18010 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
4K#,2T#,3T#..KE70,TE7# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 90099-10126 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27330-45070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 90099-10111 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 90099-10111 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
4K#,2T#,3T#..KE70,TE7# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-45070 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27359-45081 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
1 | ||
| 27359-45081 |
3TC..TE72..SDN 12V 50A,55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15030 |
2T#,3TC..TE7# 12V 40A |
1 | ||
| 27362-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
4K,2T#,3TC..KE70,TE7# 12V 40A,45A |
2 | ||
| 27371-31011 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
2 | ||
| 27371-31011 |
3TC..TE72..SDN 12V 55A |
2 | ||
| 27371-44070 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3TC..TE72..SDN 12V 55A |
2 | ||
| 90099-17114 |
4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
2 | ||
| 27372-31011 |
2TG,3TC..TE7#..EUR 12V 50A,55A |
2 | ||
| 27372-31011 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-34020 |
3TC..TE72..SDN 12V 55A |
1 | ||
| 27410-15030 |
4K,2T#,3TC..KE70,TE7# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
2T,2TB,3T#..TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
4K#,2T#,3T#..KE70,TE7# 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-34006 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
