TE71RG-EWKDS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1980
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )4D

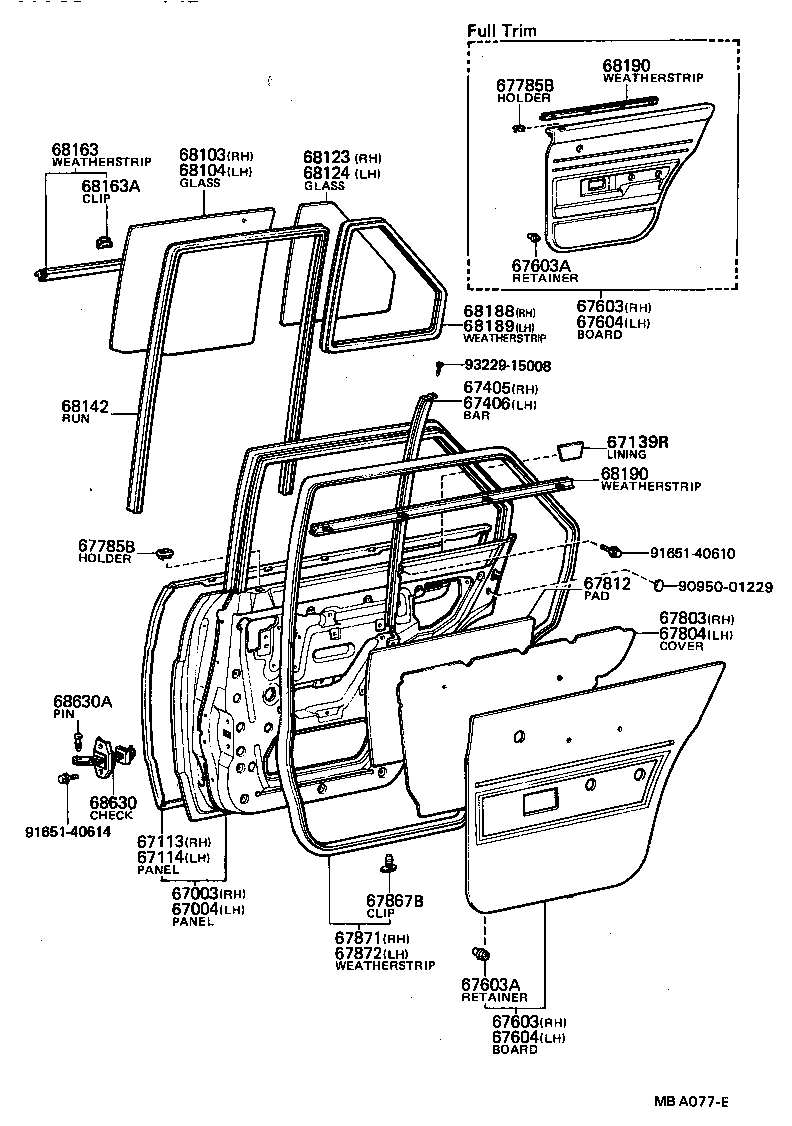

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67139R 67405 67406 67603 67603 67603A 67603A 67604 67604 67785B 67785B 67803 67804 67812 67867B 67871 67872 68103 68104 68123 68124 68142 68163 68163A 68188 68189 68190 68190 68630 68630A 9095001229 9165140610 9165140614 9322915008
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-13120

KE70,TE71..WG..4D

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-13120

KE70,TE71..WG..4D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-12080

KE70,TE7#..4D

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-12080

KE70,TE7#..4D

 1
67139R - LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67139-12010

KE70,TE71..4D

 2
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-12080

AE71,CE70,KE70,TE7#..4D

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-12080

AE71,CE70,KE70,TE7#..4D

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1303006

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,L-BROWN,BROWN,TRIM4#

 1
67630-1304006

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

 1
67630-1303004

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLUE,BLUE,TRIM8#

 1
67630-1304001

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

 1
67630-1304004

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

 1
67630-1303001

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLACK,BLACK,TRIM2#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1303006

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,L-BROWN,BROWN,TRIM4#

 1
67630-1304006

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

 1
67630-1303004

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLUE,BLUE,TRIM8#

 1
67630-1304001

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

 1
67630-1304004

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

 1
67630-1303001

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLACK,BLACK,TRIM2#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

AE71,CE70,KE70,TE7#..4D

 24
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

AE71,CE70,KE70,TE7#..4D

 24
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1304006

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

 1
67640-1303006

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,L-BROWN,BROWN,TRIM4#

 1
67640-1303001

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLACK,BLACK,TRIM2#

 1
67640-1304004

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

 1
67640-1303004

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLUE,BLUE,TRIM8#

 1
67640-1304001

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1304006

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

 1
67640-1303006

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,L-BROWN,BROWN,TRIM4#

 1
67640-1303001

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLACK,BLACK,TRIM2#

 1
67640-1304004

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

 1
67640-1303004

KE70,TE71..WG..4D..(DX,XL)

SEMI TRIM,BLUE,BLUE,TRIM8#

 1
67640-1304001

KE70,TE71..WG..4D..(DX,XL)

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-20040

KE70,TE71..4D..(DX,GL,XL)..(EUR,GEN,SAA)

W/FULL TRIM

 2
69751-2003001

KE70,TE71..4D..(EUR,GEN)

BLACK

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-20040

KE70,TE71..4D..(DX,GL,XL)..(EUR,GEN,SAA)

W/FULL TRIM

 2
69751-2003001

KE70,TE71..4D..(EUR,GEN)

BLACK

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-12080

KE70,TE7#..4D

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841-12080

KE70,TE7#..4D

 1
67812 - PAD, REAR DOOR SILENCER
67812-20050

KE70,TE7#..4D

 2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868-30040

AE71,CE70,KE70,TE7#..4D

 34
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-13080

AE71,CE70,KE70,TE71..WG..4D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-13070

AE71,CE70,KE70,TE71..WG..4D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-13060

KE70,TE71..WG..4D..(DX,XL)

*TT,T=4.0

 1
68113-13030

KE70,TE71..WG..4D..(DX,XL)..GEN

*TEM,T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-13030

KE70,TE71..WG..4D..(DX,XL)..GEN

*TEM,T=4.0

 1
68114-13060

KE70,TE71..WG..4D..(DX,XL)

*TT,T=4.0

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-13070

KE70,TE71..WG..4D..(DX,XL)..GEN

*TEM,T=4.0

 1
68123-13060

KE70,TE71..WG..4D..(DX,XL)

*TT,T=4.0

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-13030

KE70,TE71..WG..4D..(DX,XL)..GEN

*TEM,T=4.0

 1
68124-13060

KE70,TE71..WG..4D..(DX,XL)

*TT,T=4.0

 1
68142 - RUN, REAR DOOR GLASS
68142-12040

CE70,KE70,TE7#..4D

 2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68180-12040

KE70..4D..STD..SA;KE70,TE71..4D..(EUR,GEN)

 2
68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68211-10030

KE70..4D..STD..SA;KE70,TE71..4D..(EUR,GEN)

 8
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-13020

AE71,CE70,KE70,TE71..WG..4D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-13020

AE71,CE70,KE70,TE71..WG..4D

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-12060

KE70..WG..4D..DX;KE70,TE71..4D..(DX,XL)..GEN;KE70..SED..LHD..4D..DX..EUG

HIGH GRADE PACKGE

 2
68190-12070

KE70,TE71..4D..(DX,STD,XL)

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-12060

KE70..WG..4D..DX;KE70,TE71..4D..(DX,XL)..GEN;KE70..SED..LHD..4D..DX..EUG

HIGH GRADE PACKGE

 2
68190-12070

KE70,TE71..4D..(DX,STD,XL)

 2
68630 - CHECK ASSY, REAR DOOR
68630-12010

KE70,TE7#..4D

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-22010

AE71,CE70,KE70,TE7#..4D

 2
Common parts
90950-01229
91651-40610
91651-40614
93229-15008
